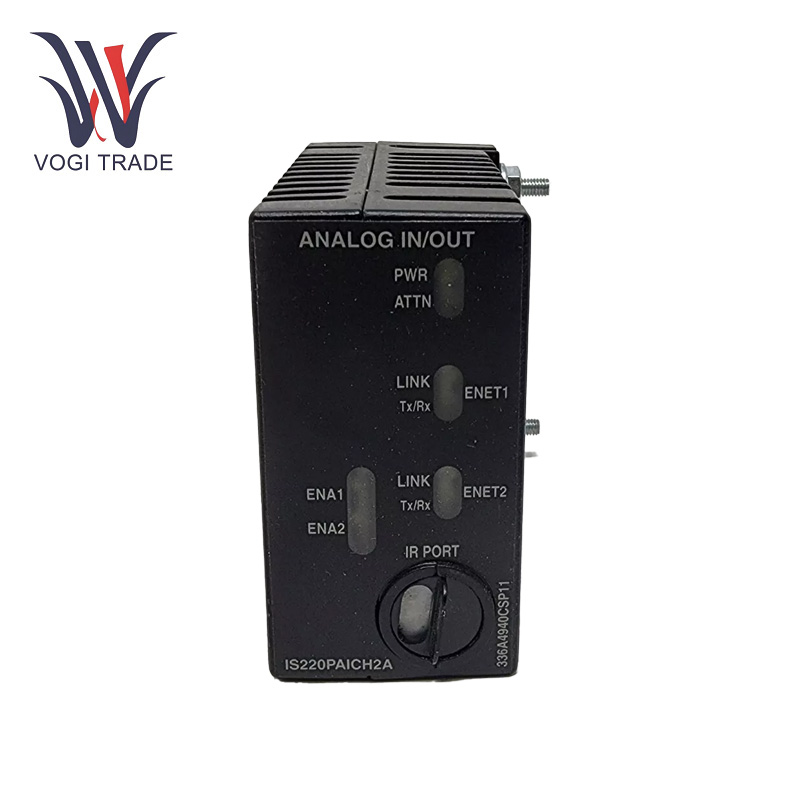

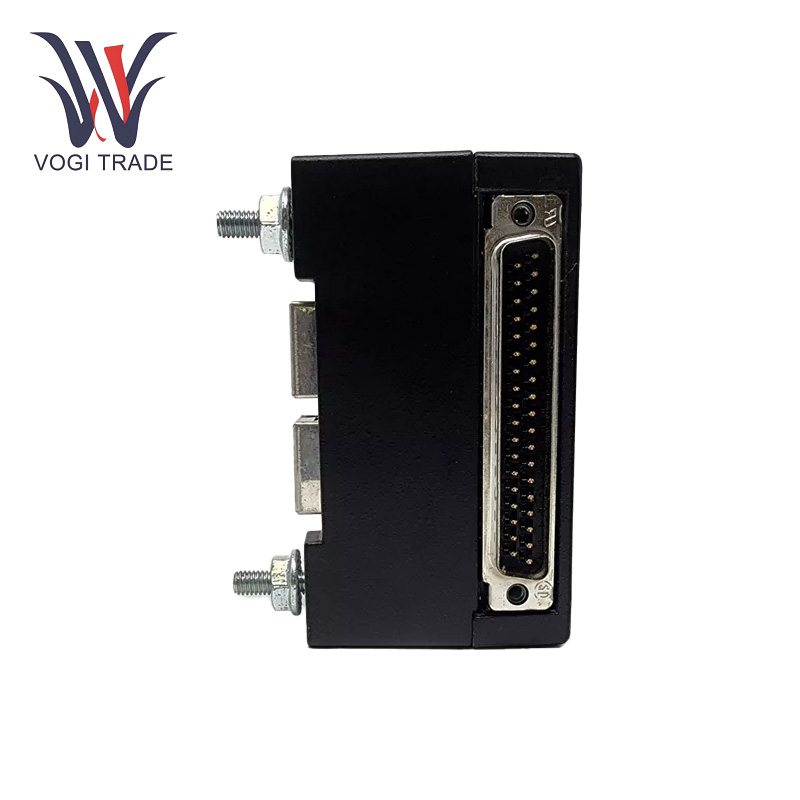

GE IS220PAICH2A

Operating Parameters

Nominal supply voltage: 24 VDC (direct current)

Operating voltage range: 20 VDC to 30 VDC to ensure stable operation

Power consumption: Approximately 5W.

Voltage input: Supports 0-10V DC voltage range.

Current input: Accepts signals in the 4-20mA range .

Resolution: The module provides 12-bit resolution for both voltage and current inputs.

Input range: 0-10V for voltage input and 4-20mA for current input

Voltage output: Typically operates in the 0-10V DC range and is used to control devices such as actuators.

Current output: Supports 4-20mA output for controlling processes.

Output Resolution: 12-bit resolution for both voltage and current outputs .

Output Load: For the 4-20mA current output, the module can drive loads up to 500 ohms.

Product Features

Analog Input and Output: The GE IS220PAICH2A is designed to provide both analog input and output, making it versatile for various control applications.

Ingress Protection : IP20 part, protects against the dust, which has a diameter greater than 12 mm, and does not protect against water ingress. That means installing these in a protected environment, usually a control panel or cabinet.

Isolation: The module electrically isolates the input and output channels, allowing devices connected to it to be protected against electrical interference and ground loops.

Overvoltage Protection: This is achieved by regulating the supply voltage to stay within an acceptable range and avoid a damaging increase in voltage and current levels in the system.

Communications Protocols: GE IS220PAICH2A integrates into the Mark VIe with the use of Ethernet/IP or other industrial protocols depending on how your specific system is configured.

Bus communications: The module has a communications bus to connect with the larger control system, which allows it to send and receive signals from other parts of the system.

Features Built-in Diagnostic LEDs: This design improves its functionality and diagnostic capabilities.

Vibration Resistance: The module is able to resist common 1G vibration levels, which is usually important for power plants, factories and other mechanical vibration environments.

Installation

Rack or Panel Mounting: The GE IS220PAICH2A module is commonly mounted rack-mounted 19 inches or control panel. Securely mount the module to protect against vibration/mechanical shock, which can affect performance. Leave ample space around the module for airflow so that it does not overheat.

Power Connections: Connect the 24 VDC power supply to the correct power Input terminals. Verify the power supply is stable and not below its recommended 20-30 VDC voltage range to rule out problems at the power source.

Wiring Analog Inputs and Outputs: For analog input signals , the output of the field device is connected to the input terminals of the GE IS220PAICH2A.For analog output signals connect the output terminals to appropriate devices

Testing: There are a variety of tests that can be conducted after wiring and configuration to confirm that connections work correctly.

Application range

Power Generation: GE IS220PAICH2A Utilized for controlling analog signals to devices like pressure sensors, temperature sensors, and flow meters, which are parts of power plants and turbine systems.

Oil and Gas: Designed specifically for monitoring and controlling instruments like valve actuators, pressure regulators, and flow meters in the oil and gas sector.

Water Thearment: Integrated into treatment plants, Sensors & actuators used to control water levels, pressures, and chemical dosages.
