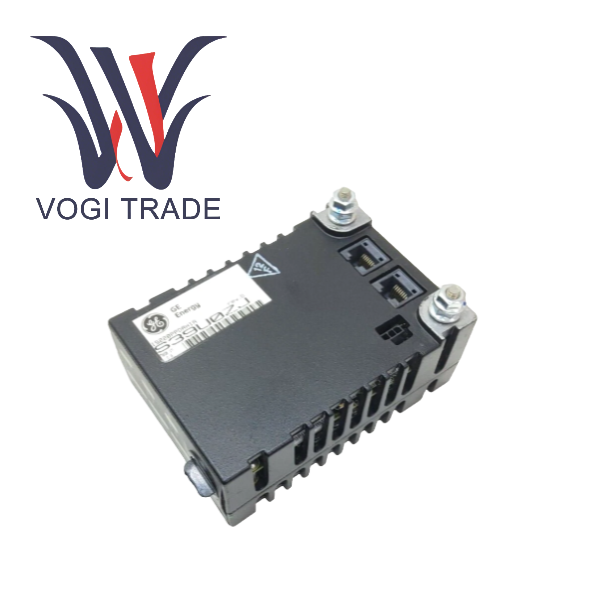

GE IS220PPDAH1A

Product Overview

GE IS220PPDAH1A is a crucial power infrastructure module designed by General Electric for its advanced Mark VIe and Mark VIeS turbine and process control systems. Its official name is "Pack Power Distribution - Local, DC". It is not a signal processing or data acquisition module, but an indispensable "energy hub" in the entire Mark VIe distributed I/O architecture. The core function of IS220PPDAH1A is to receive 28V DC control power from the upstream main power distribution module and safely, reliably, and securely distribute it to multiple I/O processor modules installed in the same local I/O package. By providing branch circuit protection and chain connection capabilities, IS220PPDAH1A ensures that the failure of a single I/O module will not cause the entire I/O package to lose power, thereby significantly enhancing the availability and maintainability of the system.

Product Function Features

Localized and modular power distribution

The IS220PPDAH1A integrates the power distribution function into each local I/O package. This means that each I/O package becomes an independent power supply unit, no longer relying on a large number of separate power lines pulled from the central cabinet, significantly simplifying the on-site wiring.

Critical branch circuit protection

The PTC self-recovery fuse is its core safety feature. The IS220PPDAH1A implements "fault isolation": if an I/O module fails due to an internal short circuit, only the PTC that supplies power to that module will act, cutting off the power to the module, while the other modules within the same I/O package and other parts of the I/O network will continue to operate normally. This significantly improves the system's fault tolerance and availability.

Support for flexible distributed architecture

The ring chain function is the foundation for building Mark VIe remote I/O. The JPDH main power distribution module in the main control room can supply power to the first remote I/O package through a single cable. The IS220PPDAH1A within this I/O package then passes through the ring chain to supply power to the next I/O package, and so on, allowing for easy coverage of distances of hundreds of meters or even thousands of meters, deploying I/O points at the location closest to the on-site equipment.

Enhancing system reliability and maintainability

Simplifying wiring reduces a large number of power cables, lowering the risk of wiring errors and fault points.

When an I/O package loses power, maintenance personnel can quickly locate whether it is the PPDA board itself, upstream power supply issues, or a certain I/O module causing the PTC to act. Due to the self-recovery nature of the PTC, many overcurrent faults can automatically return to normal after being resolved.

Passive, highly reliable design

As an active, semiconductor-free board, its failure rate is extremely low, and its MTBF is very high, serving as the cornerstone for the stable operation of the system.

Related product recommendations

Upstream power module

IS200JPDHG1, Junction Power Distribution - High Density, usually installed in the main control cabinet, providing 28V DC power to multiple PPDA boards.

Other power boards of the same series

IS220PPDAH2A, the revised PPDA board.

Power receiving I/O module

IS200VAICH1A, Analog Input Module.

IS200VVIBH1A, Vibration Input Module.

IS200PRTDH1A, RTD Input Module.

Matching cabinets/racks

Mark VIe Local I/O Pack, Local I/O Package, the PPDA board is installed in this cabinet.
