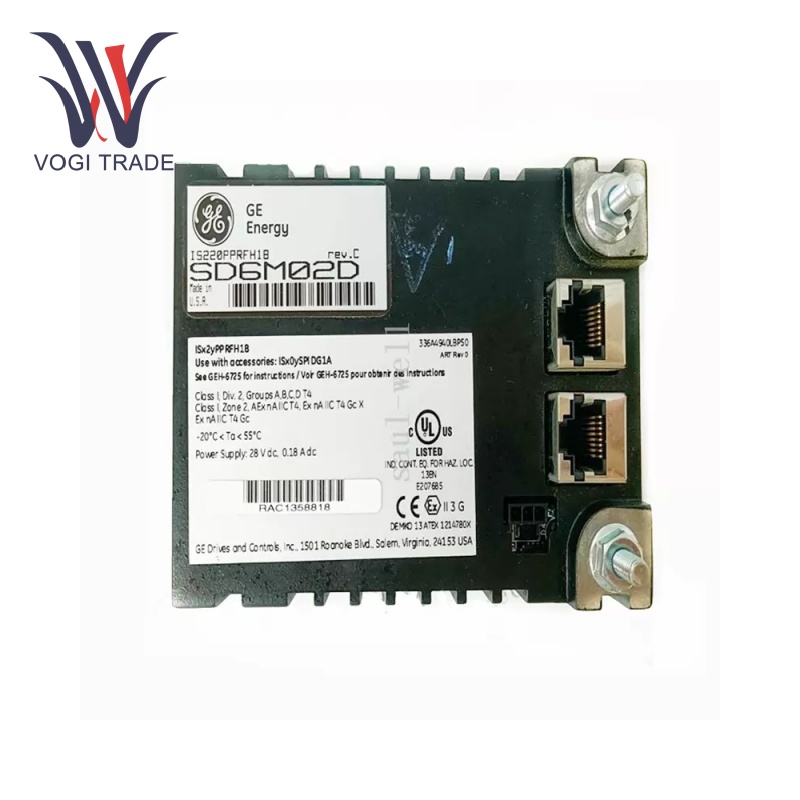

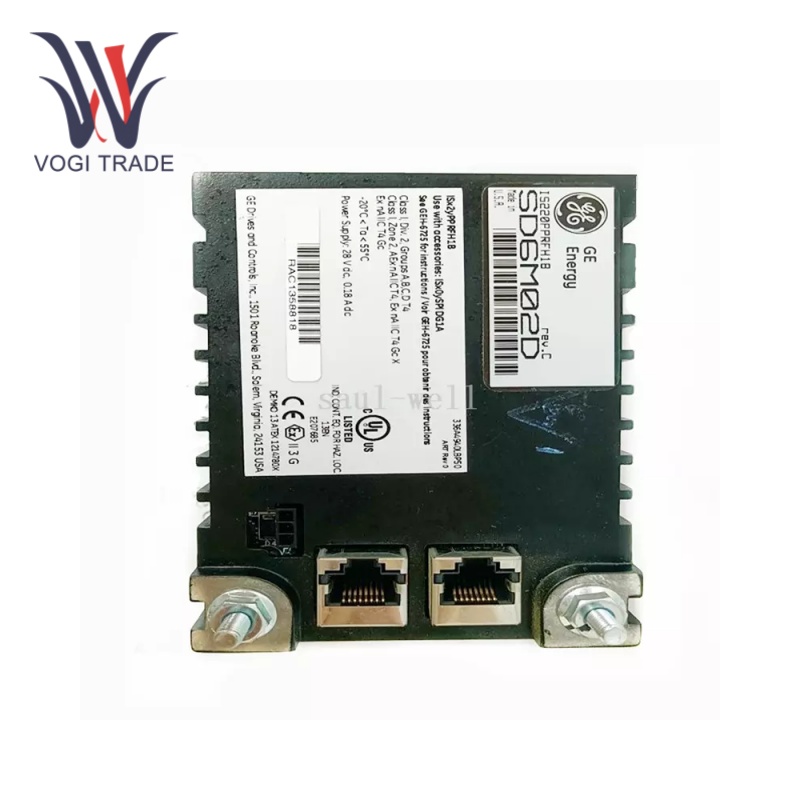

GE IS220PPRFH1B

Operation Parameters

Rated Supply Voltage : 24 V DC

Operating Voltage Range: 18 V To 32 V DC

Operating Current: ~0.5 A at 24 V DC

Voltage: Low: 0 V / High: 24 V DC

Input Impedance: 4.7 kΩ

OFF State Input Current: 3 mA (24 V DC)

Voltage: 24 V DC when active

AC output: 500 mA (max per output)

Maximum output voltage: 30 V DC.

Data Rate: 100 Mbps

Connector Type: Profinet communication requires RJ45 ethernet connectors

Ingress Protection : IP20

Protection against short circuit: Built in to protect outputs from faults

Overvoltage Protection: Safety systems to protect the module against voltage spikes

Product Features

Signal Communication:Enables the transfer of information between Bridge Personality Interface and the drive system.

Gate Drive Signal: GE IS220PPRFH1B delivers commands to turn on and off the IGBTs for controlling power in an AC drive.

Fault Detection: Checks shunt fault signals and feedback to the control system for safety and diagnostics.

Phase Sensing:Monitors phase A, B, and C current signals, processes them, and provides accurate operation of the turbine.

Data Storage and Identification: Uses a 1024-bit memory device to store board ID and revision information for diagnostics and maintenance purposes.

Gateway Function: GE IS220PPRFH1B is a PROFIBUS DPv0, Class 1 master, mapping Mark VIe controllers on the I/O Ethernet to I/O from PROFIBUS slave devices, allowing the controller to communicate with and process information from PROFIBUS slave devices.

Redundant Support: Single I/O pack with no redundancy (one I/O Ethernet connection), single I/O pack with two Ethernet connections per I/O, hot-backup Ethernet connections (two ports).

Processing Items: Manages two types of data flow between the PPRF and the controller: fixed I/O and PROFIBUS I/O. The fixed I/O consists of shared inputs and outputs, while the PROFIBUS I/O is configured per the hardware configuration supplied by the application.

Installation

Mount: An electronic ID is also available through the PROFIBUS master gateway terminal board (SPI DG 1A) where the PPRF is usually mounted.

Connection: The PROFIBUS connection connects at the DE-9 D-sub receptacle connector exposed on the side of the PPRF. As for the connections, all of them should be secure and also connected based on the requirements of the system.

Application Range

Power Generation:In power plants, the GE IS220PPRFH1B plays a crucial role in interfacing with various control systems to monitor and control power generation, turbine operations, and grid synchronization. Thus, ensures ongoing monitoring of parameters such as temperature, pressure and flow, which are sent to the central control system for corrective actions.

Oil and Gas: The GE IS220PPRFH1B is often used in the oil and gas sector to monitor the integrity of pipelines, drilling activities, and processes in refineries. It gives real-time data to optimize production and prevent problems before they turn into expensive downtime or safety hazards.

Chemical and Petrochemical:In the chemical industry, GE IS220PPRFH1B enforcessafe and optimal operating parameters on reactors, separators, and other chemical throughput processes.
