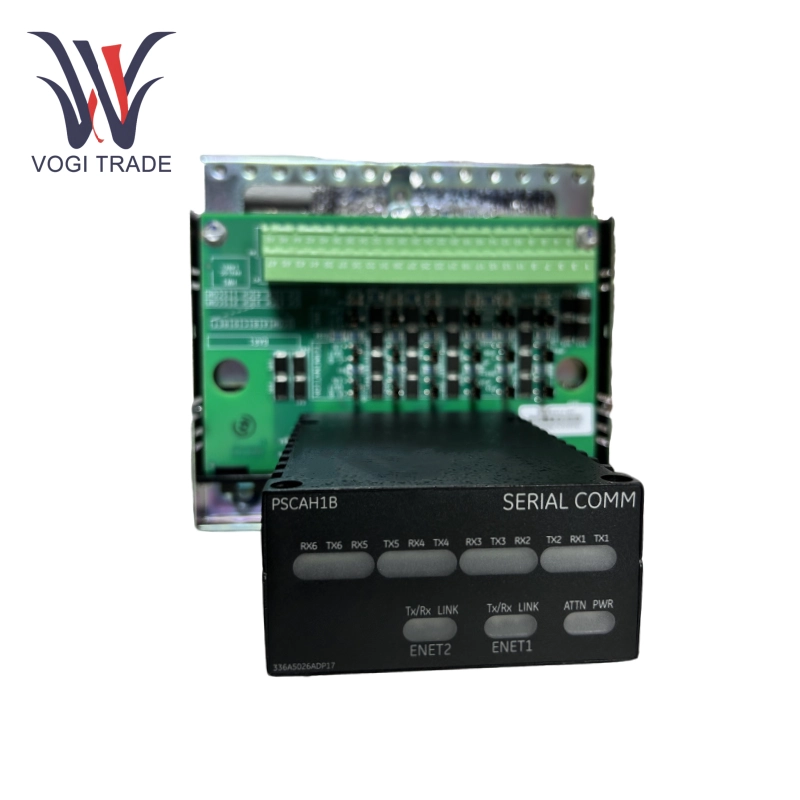

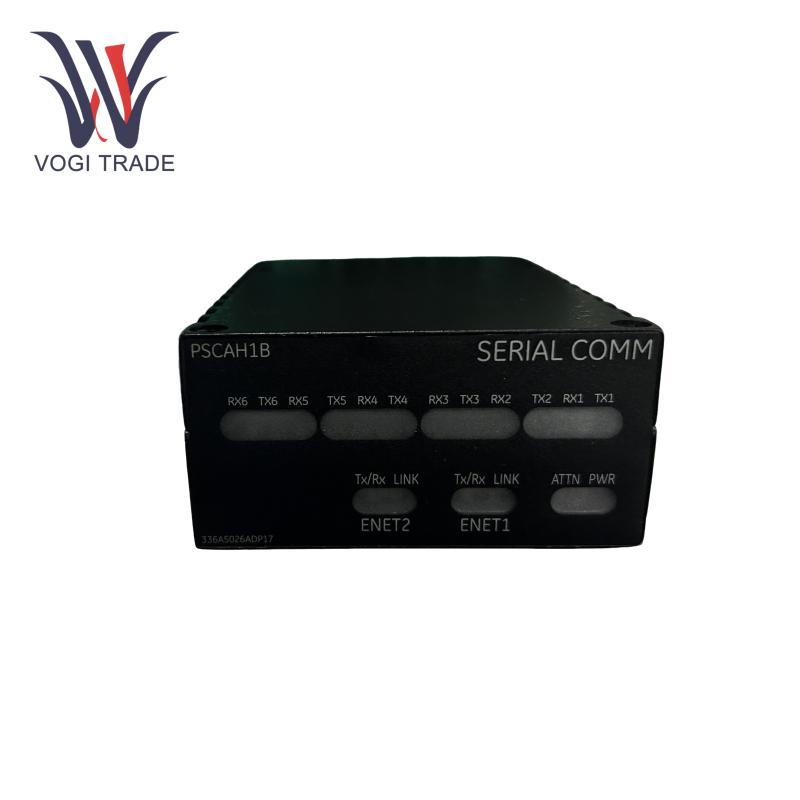

Brand: GE Description: Serial Communications I/O Pack Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: Shenzhen The GE IS220PSCAH1B supports multi-protocol communication and high-speed data transmission. Its core functions include signal conversion, data acquisition and network communication. It can be seamlessly integrated into GE Speedtronic™ control systems and third-party equipment.
|
Manufacture |
General Electric |
|
Model Number |
IS220PSCAH1B |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
9031809090 |
|
Dimension |
16*9*7CM |
|
Packing Dimension |
20*12*10CM |
|
Weight |
2.5kg |
Technical parameters
Digital input/output: 16 input points + 16 output points.
Serial communication: 6 independently configurable transceiver channels, supporting RS-232, RS-422/485 half-duplex standards.
Processor speed: 0.1ms/instruction, program capacity 32K steps, data storage 16K words.
Scan time: 5ms (200Hz).
Rated voltage: 24VDC, rated current 1.5A.
Operating temperature: -20℃ to +60℃, storage temperature -40℃ to +85℃, protection level IP40.
Features
Multi-protocol communication: High-speed data transmission through Ethernet and serial interfaces, supporting integration with PLC and DCS systems.
Signal processing: Built-in 16-bit analog-to-digital converter (ADC), supporting voltage (±10V) and current (0-20mA) signal input, with an accuracy of 0.1% full scale.
Redundancy and self-diagnosis: Dual network redundant design, master-slave switching time ≤50ms,
Real-time monitoring of signal anomalies (such as disconnection, over-limit), triggering alarms or disabling fault channels.
Working principle
GE IS220PSCAH1B is integrated into the Mark VIe control rack through the backplane connector. After receiving the field device signal, it is converted into a digital signal by a high-speed processor and then uploaded to the control system through Ethernet or serial interface. It also supports reverse output control instructions to drive actuators.
Compatibility and supporting products
Expansion modules:
IS220PDIAH1B (digital I/O module)
IS220PAICH1B (analog input/output module)
Software tools: ControlST (configuration and diagnosis), Predix (data analysis).
Third-party devices: Support Siemens SIMATIC S7-1500, Schneider Modicon PLC, and communicate via Modbus TCP/IP.
GE IS220PSCAH1B can work with Bently Nevada vibration monitoring instruments.
