GE IS220YAICS1A

Product Overview

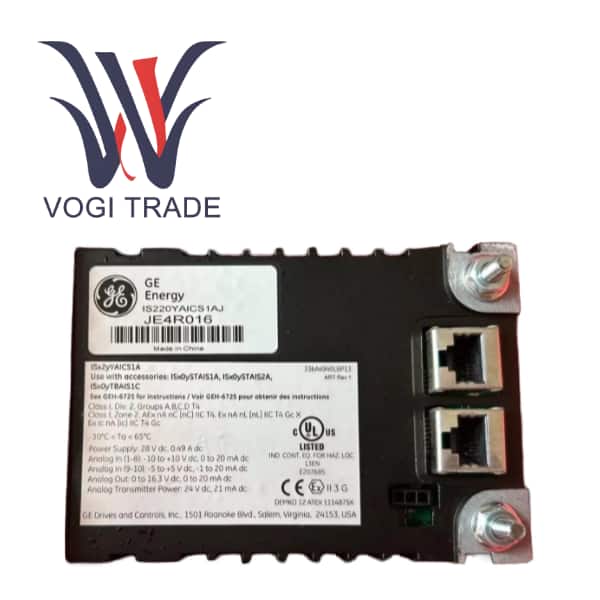

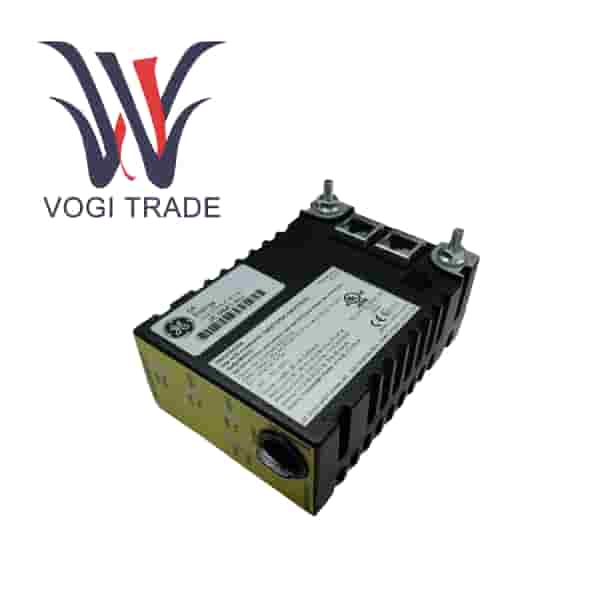

The General Electric IS220YAICS1A is an Analog Input Module in the Mark VIeS safety control system. This module is specifically designed and certified for operation in Hazardous Locations and is a key component of the safety instrumented system. It is responsible for accurately and reliably collecting 4-20mA analog signals from on-site sensors and transmitting them to the Mark VIeS controller, where they are used to implement critical safety interlocks and protection functions.

Unlike the standard Mark VIe I/O, the IS220YAICS1A and its accompanying accessories form a complete, independently certified safety loop, capable of meeting the SIL3 application requirements.

Case Experience

On a large oil and gas production platform located in the North Sea, safety is the top priority. The gas compressor on the platform is a core equipment, but its operation involves risks of high pressure and flammable/explosive gases.

A set of independent safety instrumented system consisting of IS220YAICS1A modules was deployed here to continuously monitor multiple critical parameters of the compressor, such as bearing temperature, lubricating oil pressure, and outlet pressure. Due to the potential risk of natural gas leakage on the platform, the entire area was classified as Zone 2 hazardous zone. With its ATEX certification of Ex ic nA[ic] IIC T4 Gc, IS220YAICS1A can be safely installed in the control cabinet close to the site without the need for additional positive pressure ventilation or isolation measures.

One day, due to a mechanical failure, the temperature of one of the bearings of the compressor began to rise abnormally. The temperature transmitter connected to IS220YAICS1A immediately transmitted this dangerous signal to the SIS. The Mark VIeS controller completed the logical judgment within a few milliseconds and confirmed the critical situation. It immediately issued an instruction to cut off the power supply of the compressor through the safety output module and start the emergency depressurization procedure. Before the catastrophic accident occurred, the system successfully brought the equipment to a safe state, protecting the assets worth billions of dollars and the lives of all the staff on the platform. As the "eye" of this safety defense line, IS220YAICS1A played an indispensable role.

Related product recommendations

Matching terminal board  Termination Board

IS200TBAIS1C / IS400TBAIS1C - Used for connecting on-site 4-20mA signals

IS200STAIS1A / IS200STAIS2A / IS400STAIS1A / IS400STAIS2A - Adapter for connecting the module to the terminal board

Modules of the same series for safety I/O

IS220YDIAS1A - Safety digital input module

IS220YDOAS1A - Safety digital output module

IS220YPROS1A - Safety processor module
