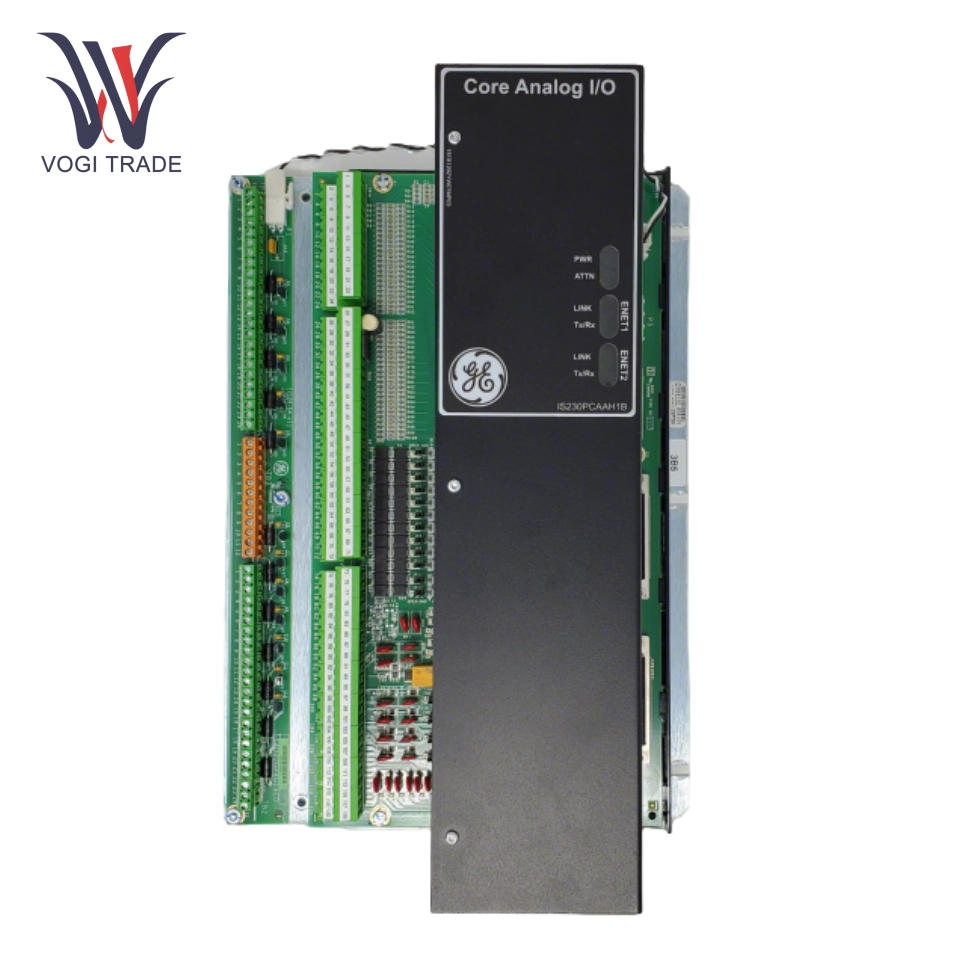

Brand: GE Description: Core Analog I/O Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: ShenZhen GE IS230PCAAH1B is a core analog I/O module developed specifically for the high-precision signal processing needs of gas turbines, industrial automation and energy industries.
|
Manufacture |
GE |
|
Model Number |
IS230PCAAH1B |
|
Ordering Number |
IS230PCAAH1B |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8517795000 |
|
Dimension |
35cm*30cm*10cm |
|
Packing Dimension |
37cm*32cm*13cm |
|
Weight |
1.5kg |
Technical Parameters
Input type: GE IS230PCAAH1B supports 4-20mA current signal, 0-10V DC voltage input (accuracy ±0.50%), thermocouple, LVDT (linear variable differential transformer) input (accuracy ±1.00%).
Output type: 4-20mA servo drive output (accuracy ±3.50%).
Number of input channels: 25 independent input channels.
Power supply voltage: 28V DC ±5%.
Power consumption: suitable for low-power industrial environments. .
Operating temperature: -30°C to 65°C.
Functions and Features
Signal acquisition and conversion: real-time acquisition of temperature, pressure, flow and other sensor signals, converted into digital signals that can be recognized by the control system, supporting the monitoring of key parameters of gas turbines, such as combustion efficiency and vibration monitoring.
Redundancy support: compatible with single machine (Simplex), dual redundant (Dual) and triple redundant (TMR) configurations to improve system fault tolerance.
Communication interface: integrated RJ45 dual Ethernet interface, supports high-speed data transmission; equipped with RS232/485 interface, compatible with multiple device communication protocols
Installation and Compatibility
Installation requirements: GE IS230PCAAH1B need to be connected to the TCAT terminal board via a 68-pin cable, and ensure that the RJ45 interface matches the control system network.
Compatibility: fully compatible with Mark VIe series controllers and I/O components, supports expansion with bus interfaces such as Profibus DP and DeviceNet.
