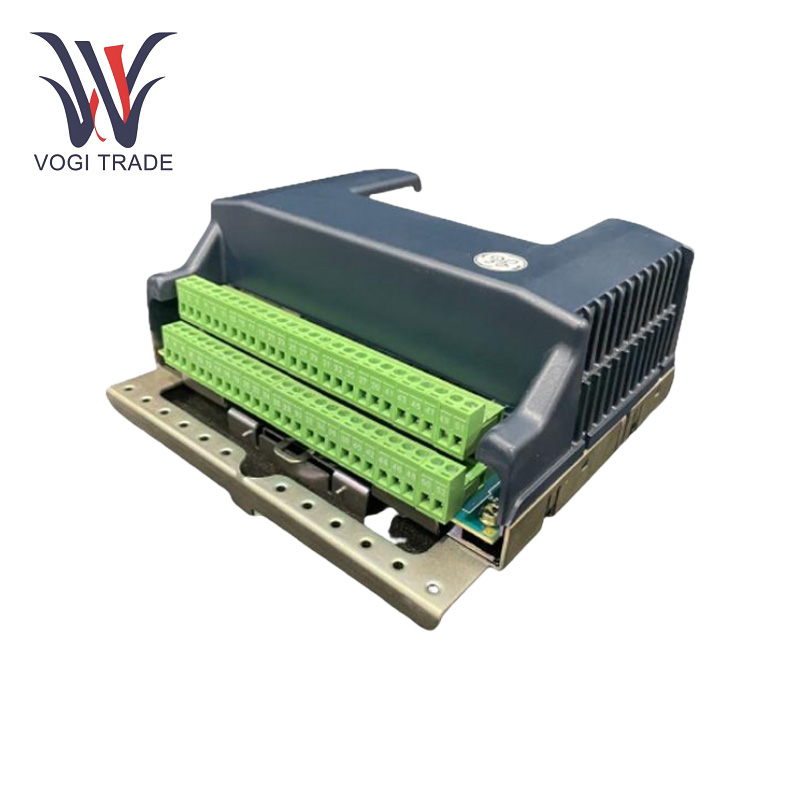

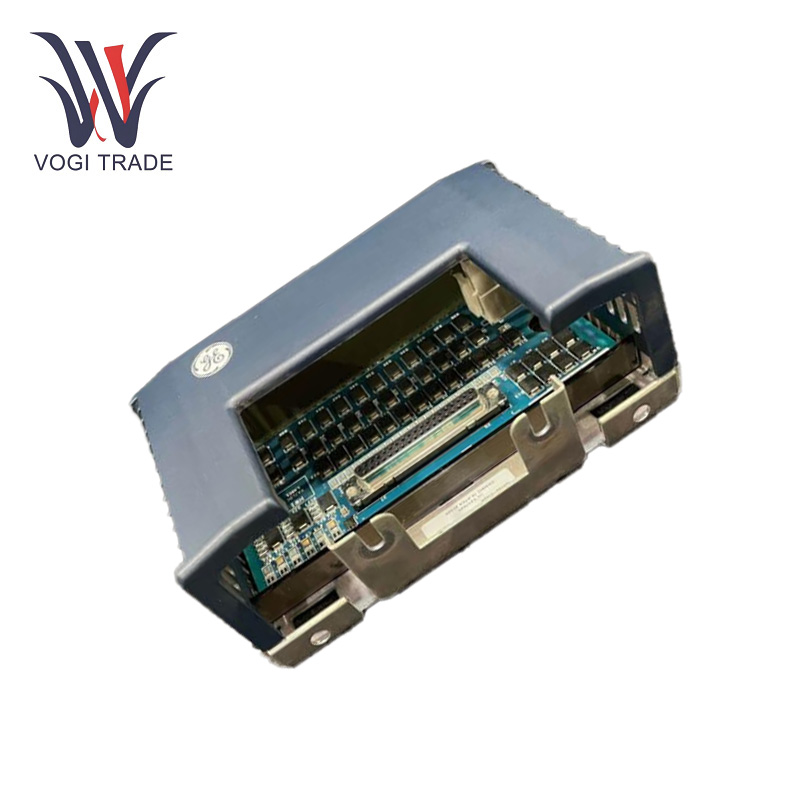

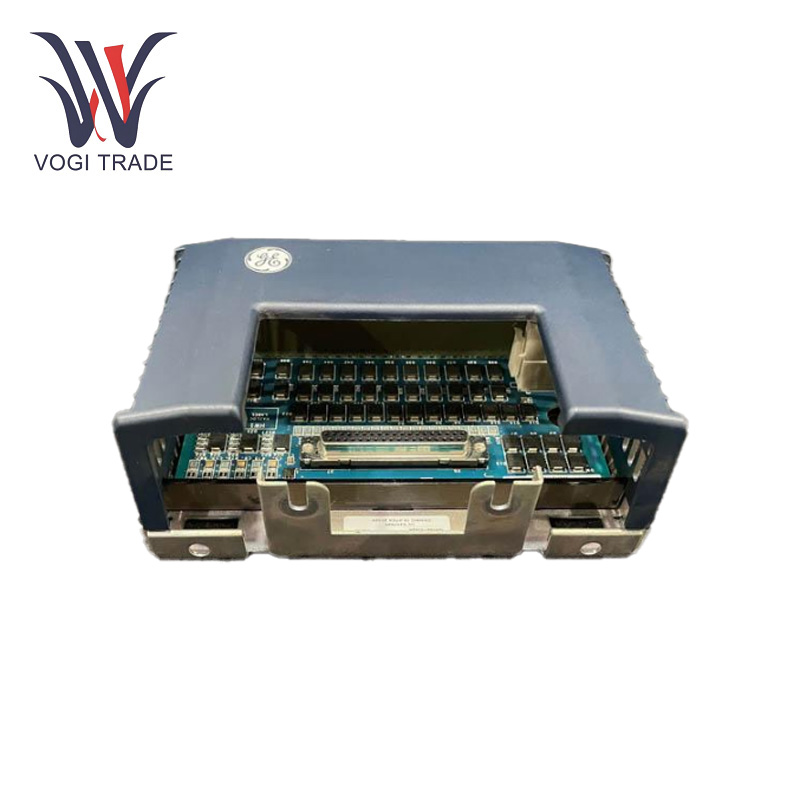

Brand: GE Description: STCI Terminal Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen GE IS410STCIS2A is a compact contact input terminal board designed for GE's Mark VIe and Mark VIeS turbine control systems. It provides 24 contact input channels with electrical isolation to ensure accurate signal acquisition from field devices such as switches and relays.
|
Manufacture |
GE |
|
Model Number |
IS410STCIS2A |
|
Ordering Number |
IS410STCIS2A |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
35cm*35cm*13cm |
|
Packing Dimension |
37cm*37cm*15cm |
|
Weight |
1.5kg |
Operating Parameters
Input Current: 24 V DC.
Number of Channels: 24 contact input channels.
AC Voltage Rejection: 12 V RMS.
Frequency: 50 or 60 Hz.
Operating Temperature: -30 to 65°C.
Humidity: 5 to 95%.
Signal Processing: Capable of handling high-speed signal processing for real-time control and monitoring.
Power Consumption: Low power consumption design to ensure energy efficiency and reduce heat generation.
Product Features
Contact Input Processing: GE IS410STCIS2A is designed to work as a contact input processing where its main goal is to read the input signal of multiple field devices. As soon as it receives input through the 24 contact inputs, the board decodes and interprets the input signals. For instance, a limit switch in a manufacturing machine can send its on/off state to a control system as a digital signal through DAQ. The processed information is then sent to the corresponding control unit, allowing the overall system to take decisions in real - time according to the status of the field devices.
Noise Suppression: The GE IS410STCIS2A has sophisticated noise - suppression circuitry to guarantee dependable operation amid adversarial industrial noise environments. This function eliminates electrical noise generated by motors, transformers and other high power systems from being falsely interpreted as input. This leads to an increase in the precision and stability of the input data, which is essential to maintain the integrity of the control system.
Gathering Data: GE IS410STCIS2A Collects contact input signals from field devices and interfaces those signals as data into the control system.
Isolation of Signals: Ensures electrical isolation to keep the control system free from external interferences.
Installation
Pre-Installation Check: Verify to turn off the power supply before installation Check that the board is compatible with the current system.
Inserting: Insert board into the control system chassis board to connector alignment.
wiring: refer wiring diagram for correct layout of input/output cables Double-check all connections are secure.
Power-Up: Test the system after installing to confirm proper operation.
Configuration: Use the appropriate software tools to configure the board for the specific application.
Application range
Power Generation: GE IS410STCIS2A Control and over the watch of turbines in Power manufacturing unit.
Oil and Gas: Orchestrating processes in extraction and refining operations.
Chemical Processing: GE IS410STCIS2A Supervising different chemical manufacturing processes.
Water Treatment: Regulating the purification and distribution systems of water.
Troubleshooting
Signal Verification: Check input signals for data validity at regular intervals.
Connection Integrity: for wear or corrosion, and ensure wiring is secure.
Environmental Conditions: Keep an eye to make sure the module is working in defined temperature and humidity environments to help avoid environmental stresses.
Assess DamageVisual inspection: Walk around and visually inspect the board for burnt components or loose connections.
