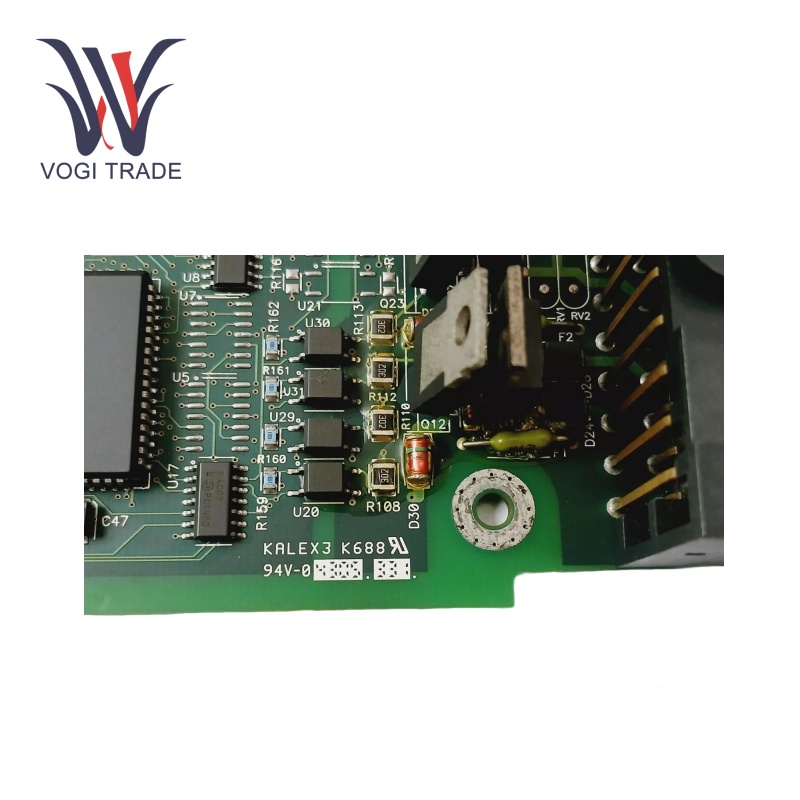

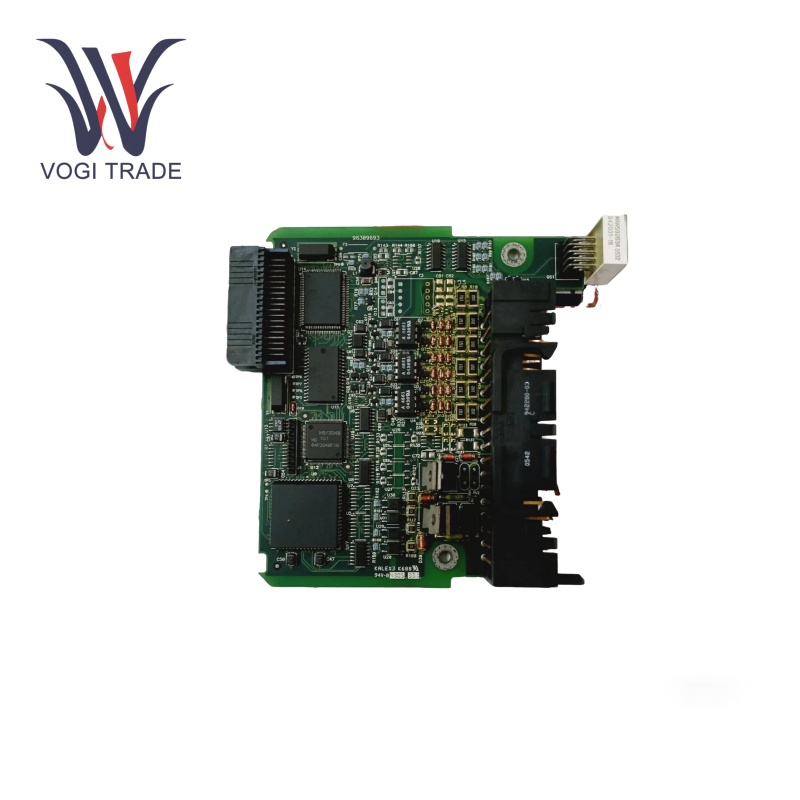

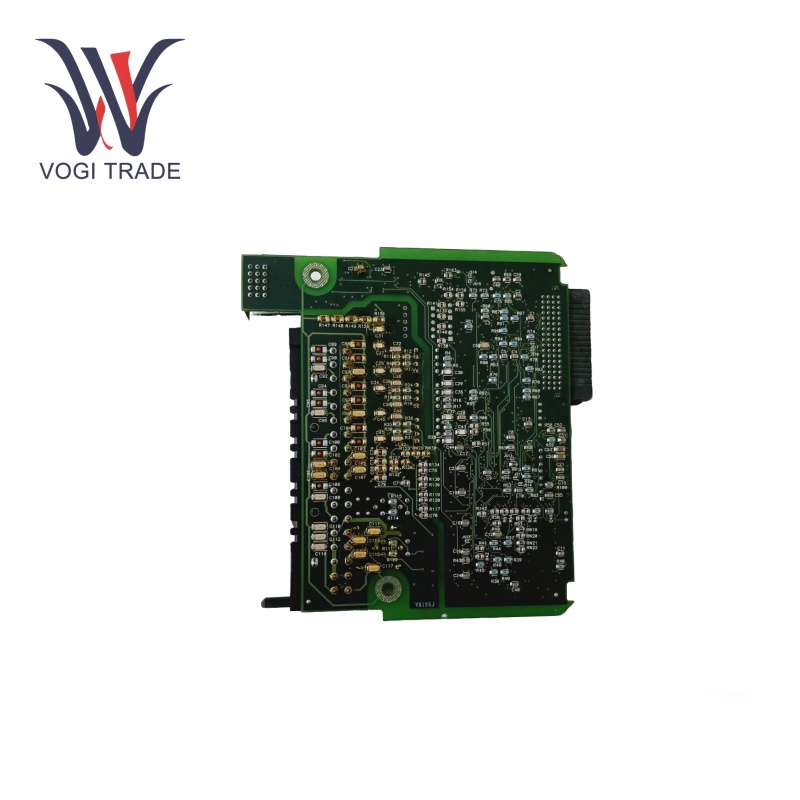

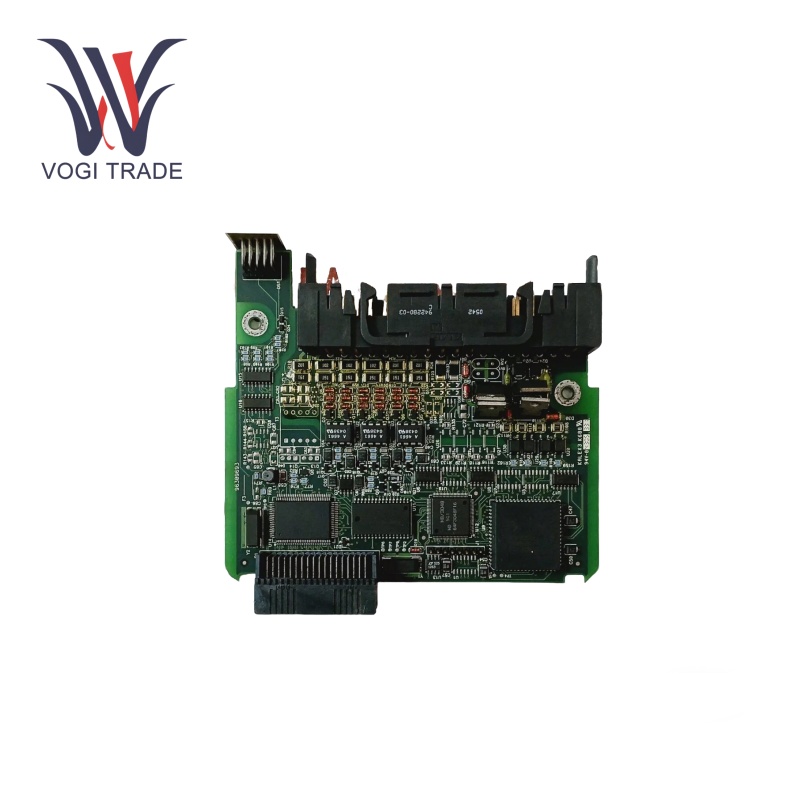

GE KALEX3 K688 94V-0

Voltage Range: 24V DC

Contact Rating: maximum current of 5A

Operating Temperature: -40°C to +70°C

Isolation: The relay contacts are electrically isolated from the control circuitry, providing protection against electrical noise and surges.

Flammability Rating: High resistance to flame propagation.

Switching Time: The relay has a fast switching time, typically in the range of milliseconds, ensuring quick response to control signals.

Product Features

Signal Switching: The GE KALEX3 K688 94V-0 is mainly used for signal switching. It is able to accept input signals from a variety of sources, including sensors, controllers, or other electrical devices. It uses these input signals to controll load by switching output signals. Automating processes and controlling the operation of electrical equipment are essential for a switching function.

Electrical Isolation: Electrical isolation between input and output circuits. This isolation also protects the control system from resolution of electrical effects interactions circuits such as voltage spikes, short - circuits in the load circuit. By introducing a degree of separation, it improves the safety and reliability of the system as a whole by preventing faults from propagating within the circuit.

Compatibility: GE KALEX3 K688 94V-0 can easily be integrated with programmable logic controllers, sensors and actuators. It can integrate into existing industrial environments with minimal configuration changes, enabling easier upgrades and system expansions.

Flame Retardant Property: The 94V - 0 rating ensures that the module features great flame - retardant property. GE KALEX3 K688 94V-0 will self extinguish in the event of a fire, quickly containing flames from spreading. This safety feature is essential, particularly in industrial settings where fire hazards can exist.

Installation

Storage: The module needs storage in the appropriate rack or enclosure in the control system. When in place, secure the module to prevent it from moving when in use.

Electrodes: Insert the electrodes into the respective slots on the module Double check the wiring to make sure it's not going to short out on you.

Configuring: Initializing the module can be performed with the right configuration tool. Apply addresses to relay channels then configure other diagnostics.

Testing: Once installed, test the module by activating the relay channels and checking that the devices respond properly. Make sure the LED indicators are working as intended.

Application range

Industrial Automation: GE KALEX3 K688 94V-0 is commonly used to automate different processes in industrial production plants. It can serve to control everything from conveyor belts to robotic arms to various automated machinery.

Building Automation: If used in commercial buildings with building management systems, the module can be used. An IP controller can also control lighting systems, HVAC equipment, and access control devices. compressors.

Power Distribution and Control: The GE KALEX3 K688 94V-0 can be used in power distribution systems to protect and control electrical circuits. In the event of overcurrent or short-circuit conditions, it can open the relay contacts to isolate the faulty spot, preventing damage to electrical devices and ensuring the safety of the power system.

Power Generation: Monitoring auxiliary systems in gas and steam turbines.

Process Control: Control valves, pumps, and other process control devices in chemical, petrochemical and oil & gas sector.

Energy Management: Managing lighting, HVAC systems, and other energy related devices in commercial and industrial buildings.

Safety and Protection Systems: These are the fundamental systems where reliability and redundancy are the primary requirement.

Troubleshooting

No Output: If you are not getting any output from the relay, check the power supply connections and ensure that the module is configured properly in the control system software.

Intermittent Output: If the output is intermittent, check the wiring for loose connections or damaged cables. You should also check for any electrical noise that could be interfacing with the module.

Stuck Relays: A relay that is stuck in the on position prevents the appliances from functioning, while a relay stuck in the off position means they will not turn off. Look for any signs of wear on the contact.

Overheating: Ensure that the total current draw is within the rated capacity of the module.overheating may increase heat damage or even damage the module. And ensure there is good airflow around the module.
