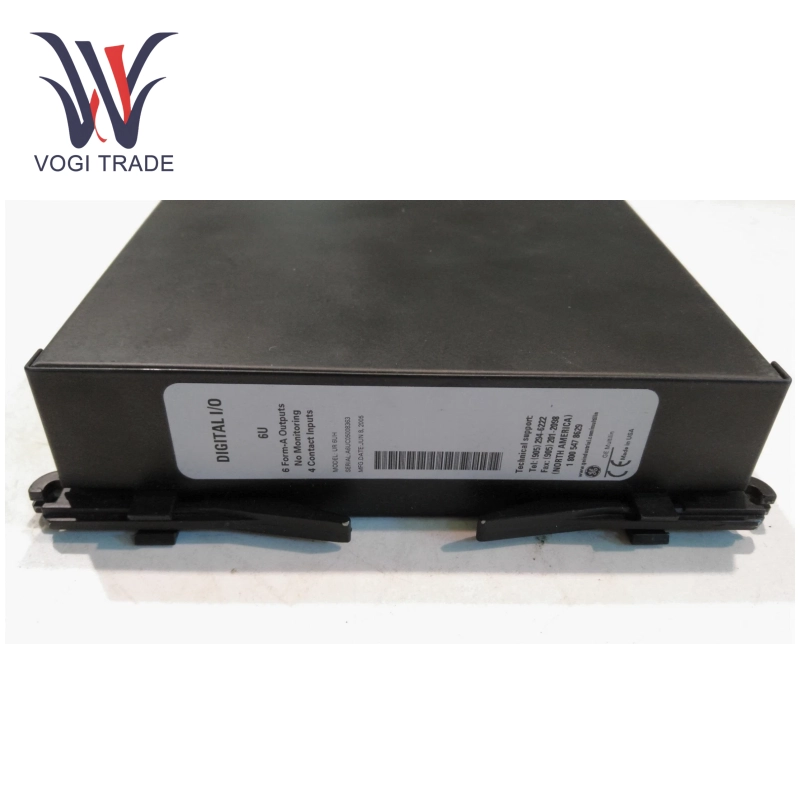

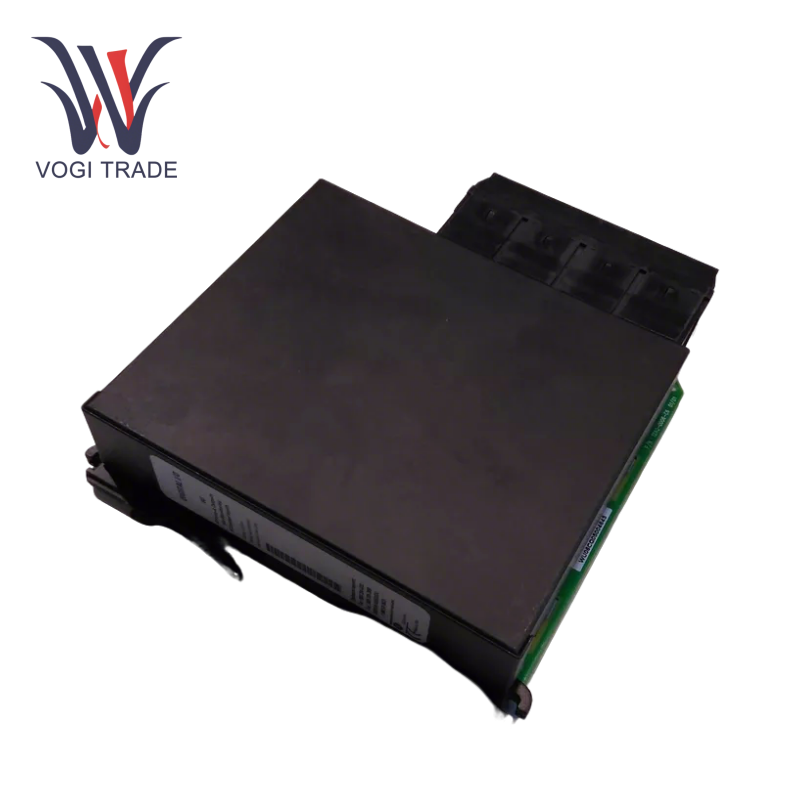

Brand: GE Description: Digital I/O Module Universal Relay Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: Shenzhen The main function of GE UR6UH is to collect discrete signals from field devices (such as switches and sensor status) and convert them into digital signals that can be processed by the control system.
|
Manufacture |
General Electric |
|
Model Number |
UR6UH |
|
Country Of Origin |
USA |
|
HS CODE |
9031809090 |
|
Dimension |
14*8*3CM |
|
Packing Dimension |
17*10*5CM |
|
Weight |
0.5kg |
Precise technical parameters
Input channels: 6 digital inputs, opto-isolated, logic level: 24V DC, input impedance: 470kΩ.
Output channels: 6 relay outputs, contact capacity: 250V AC/DC, 10A, output delay: ≤2ms.
Communication interface: 1×RS-232 (standard), optional embedded Ethernet port (supports Modbus protocol).
Working temperature: 0°C ~ 55°C.
Storage temperature: -20°C ~ 70°C.
Humidity: 5%~95% (non-condensing).
Power requirements: 24V DC industrial standard input
Core functional features
High reliability design: Industrial-grade components, anti-vibration and anti-shock, MTBF (mean time between failures)> 100,000 hours, wide input voltage range (0-30V DC), adaptable to voltage fluctuation environment.
Real-time monitoring and protection: GE UR6UH supports tripping, overload, and short-circuit alarms, cut off the output within 2ms after triggering, programmable logic functions, and custom signal processing rules (such as delayed triggering and interlocking control).
Strong anti-interference ability: Optoelectronic isolation + signal filtering, stable operation in strong electromagnetic fields (such as near inverters).
Application scenarios
Power system: Circuit breaker status monitoring, transformer protection signal acquisition.
Petrochemical: Pump valve switch control, tank level sensor signal acquisition.
Manufacturing industry: Production line equipment start and stop monitoring, robot position sensor feedback.
Traffic control: Signal light status detection, track switch position feedback.
