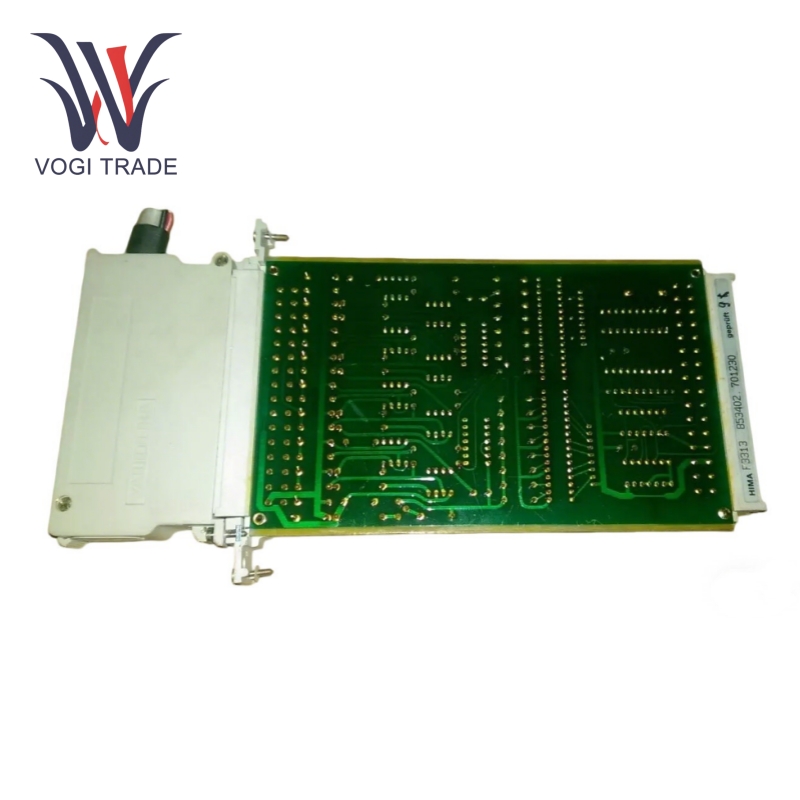

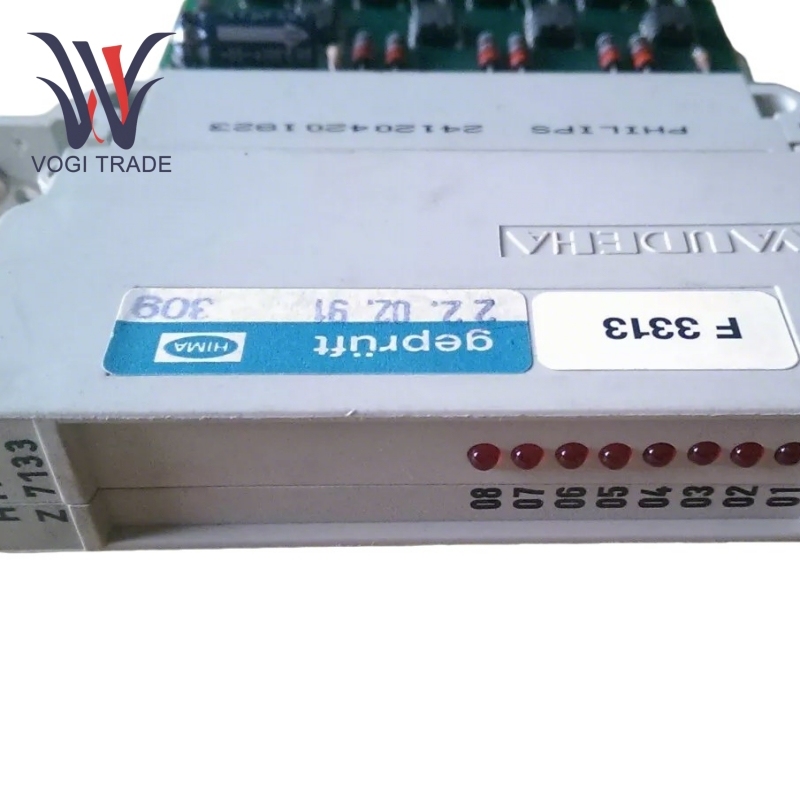

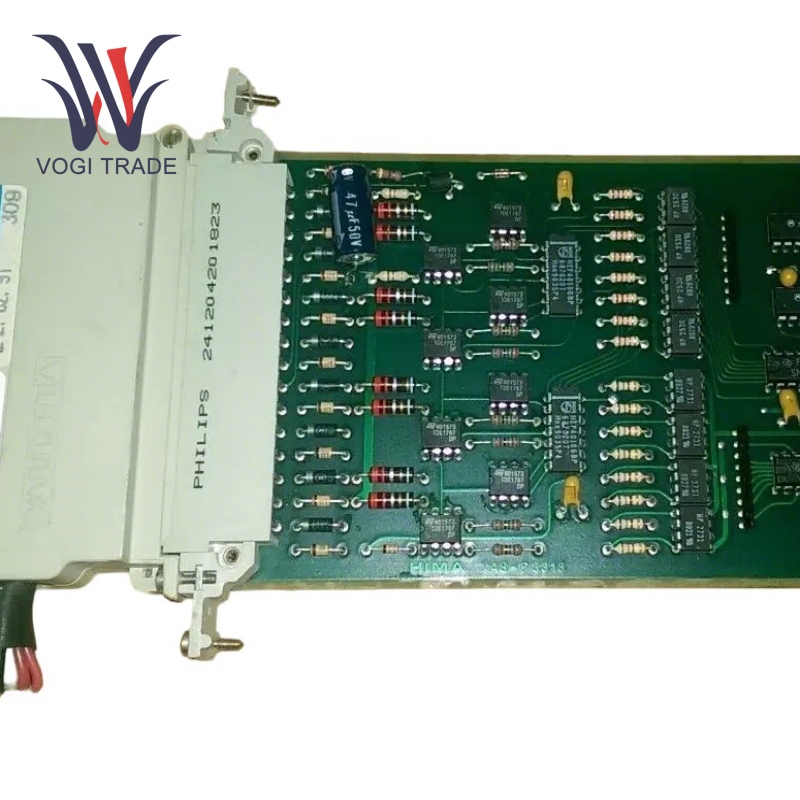

HIMA F3313

Usage Parameters

Input Voltage: The voltage input of HIMA F3313 is 24V DC, which is a common and widely accepted standard voltage in industrial control systems, so it can provide stable power for the normal operation of the module.

Rated Current: The rated current is 5A, so it can handle high current loads, thereby ensuring reliable signal transmission and power supply of devices connected to it.

Digital Input Channels: This module usually comes with multiple digital input channels. Depending on the configuration, the number may vary, but generally, it provides enough channels to connect multiple digital sensors or switches for various industrial applications.

Signal Monitoring: It combines line monitoring of open circuit (oc) and short circuit (sc). In this way, the system can check the health of the input line by detecting open circuit or short circuit conditions very quickly, thereby improving the safety and reliability of the system by sending alarms in time and allowing remedial measures to be taken at the appropriate time.

Product Function

Signal Acquisition and Processing: This module is used to acquire digital signals from multiple field devices (such as temperature sensors, switches and relays), and then process these signals in a simple and easy-to-understand way for use by the control system. This ensures accurate and faithful transmission of information, allowing the control system to execute decisions based on the actual status of the field equipment.

Fault Detection and Diagnostics: The module has a built-in fault detection mechanism. It continuously monitors the input signals and its internal circuits for any signs of faults or errors. If an abnormal situation such as an open or shorted input line occurs, it can diagnostically identify the problem and generate an alarm signal. This helps to quickly integrate maintenance activities by locating the fault point, thereby reducing equipment downtime; improving overall system availability.

Hot Swap Implementation: Of course, one of the most attractive features of the HIMA F3313 is the hot swap implementation, so that as long as the system is powered and running, the installation and removal of this module will not interrupt the normal course of events. This situation is very convenient because this allows maintenance and extended service of the system, and the module can also be replaced without shutting down the entire control system.

System Integration: It goes without saying that the F3313 is highly compatible with other members of the HIMA control system and can generally be incorporated into existing automation structures. It connects directly to the central module via the I/O bus, and all of these, the necessary connection functions are embedded in the H41Q central module. This integration simplifies system wiring and configuration work, greatly reducing installation costs and time, making it easy to build complex and reliable control systems.

Application Scope

Petrochemical Industry: HIMA F3313 is widely used in petrochemical plants to monitor and control processes, connect sensors, and measure parameters such as temperature, pressure, flow and even liquid level in tanks, pipelines and reactors. By perfectly acquiring and processing these signals, it ensures that petrochemical processes operate safely and efficiently, thereby preventing possible accidents and optimizing production efficiency.

Power Generation Industry: In power plants, the module is used to monitor electrical equipment such as generators, transformers and circuit breakers. It can receive digital signals from protection relays indicating faults or abnormal conditions in the power system. This can immediately protect the power system through various actions, such as tripping faulty equipment to ensure the stability and reliability of the power supply.

Manufacturing: In manufacturing plants, F3313 can be used for machine control and automation. It can be directly connected to sensors in the production line to track the position, speed and status of movable elements, as well as detect the presence or absence of workpieces. Based on these input signals, the control system can coordinate the operation of different machines and processes, thereby improving quality and productivity.

Building Automation: Apartments in large commercial and industrial buildings can be integrated into a BMS for controlling and monitoring various building services such as lighting, HVAC and access control within the F3313 control system. This can receive signals from occupancy sensors, temperature sensors, and door and window sensors, enabling intelligent control of the building environment and improving energy efficiency and safety.
