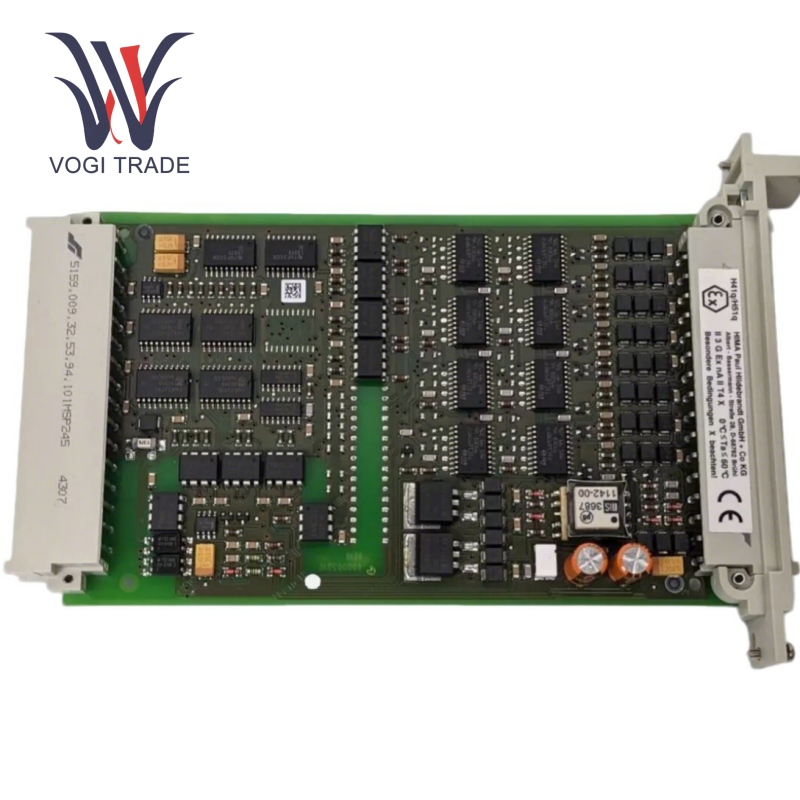

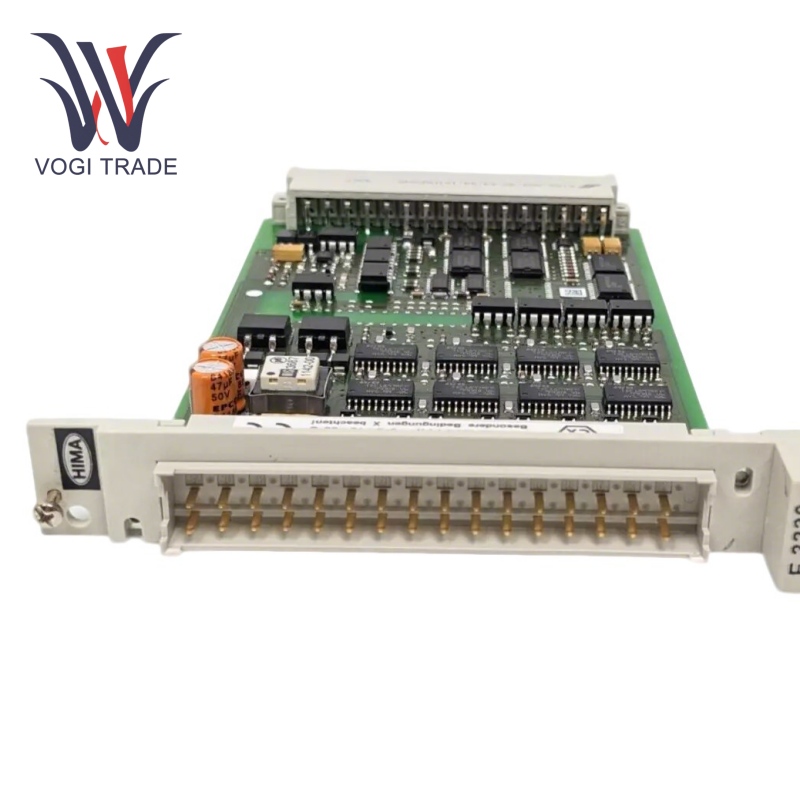

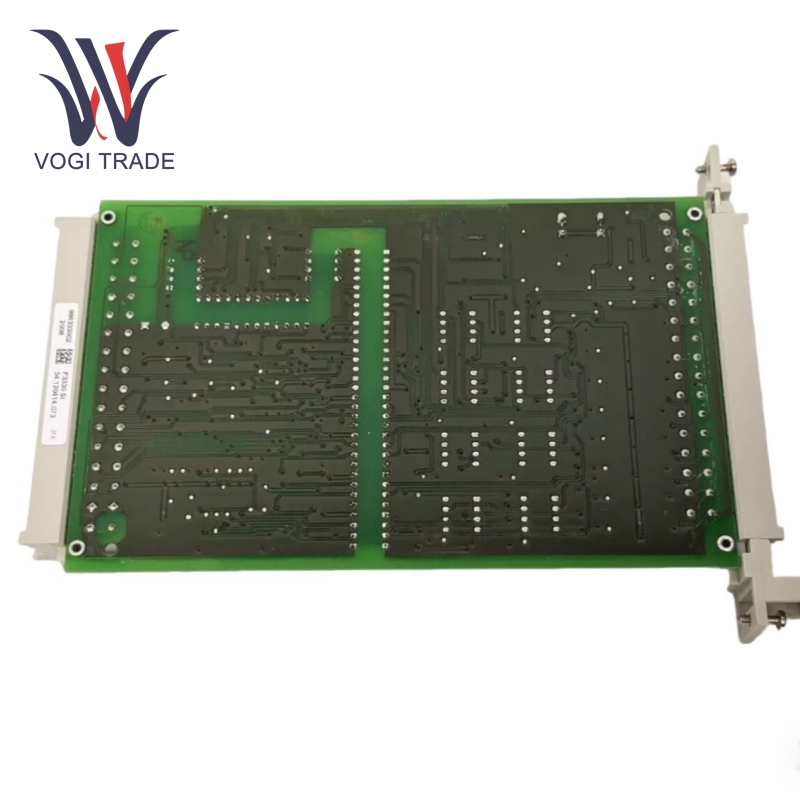

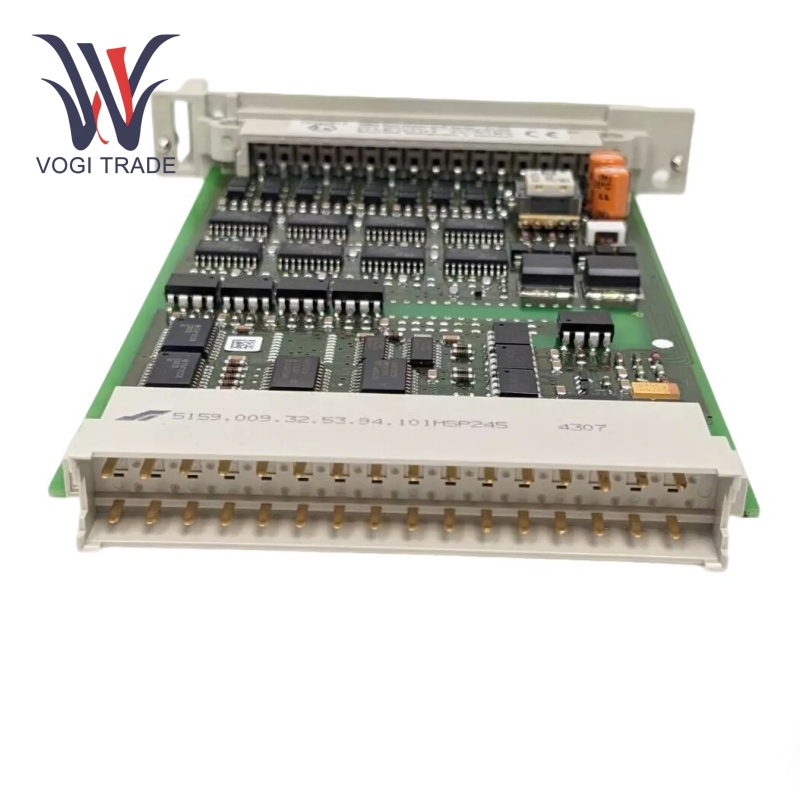

Band: HIMA Description: 8-channel output module Condition：New Certificate：COO TEST REPORT WARRANTY LETTER Warranty:1 year Inventory Qty: 67 Payment term:T/T Shipping Port:ShenZhen HIMA F3330 is a high-performance, high-reliability programmable logic controller. Its excellent operating parameters, powerful safety control, signal processing, fault diagnosis and other functions as well as a wide range of applications provide a solid foundation for ensuring the safe and efficient operation of industrial automation systems.
|
Manufacture |
HIMA |
|
Model Number |
F3330 |
|
Ordering Number |
984333002 |
|
Catalog |
HIQuad X |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
16.3× 3.8× 5.8cm |
|
Packing Dimension |
20*6*8CM |
|
Weight |
0.4kg |
Operation Parameters
Power supply: HIMA F3330 is normally powered by 24 VDC power supply, with an operating current rating of 180 mA under extra load and 110 mA under low voltage 5 VDC. Its undervoltage trip is set at 16 V. The maximum internal voltage drop is 2 V under 500mA current load.
Communication Ports: It has seven ports and an LCD display. The serial port can communicate in master/slave, device-to-device and user-device arrangements. It also has USB local I/O expansion and Ethernet remote I/O to accommodate complex industrial automation systems. The number of discrete and analog I/O modules is large. For example, the digital output module has eight channels, an output voltage of 24 VDC, and an output current of 4.7A per channel, capable of controlling many devices with actuators, valves, and relays.
Product Features
Safety Control: Safety supports CPU modules, which have the functions of executing safety logic, monitoring the status of safety equipment, and performing safety control, and supports multiple safety communication protocols.
Signal Processing and Output: Analog and digital modules can not only provide the above-mentioned relevant information, but also output appropriate digital signals for a variety of external devices, and feedback safety-related alarm signals and system status.
Improved Control Accuracy: F3330 adopts high-tech control strategy. When the absolute value of the range PV deviates from the SV value, long pulse drive technology is adopted. When this difference continues within the range of EN and half of the dead zone, short pulses are output within the Ton time, and the waiting time Toff is until the absolute difference drops below half of the dead zone, taking into full account the characteristics of system inertia and electric actuators, which can greatly improve the control accuracy.
Fault Detection and Diagnosis: Advanced function combination enables fault detection and diagnosis, quickly and easily identifying problems, and realizing simple troubleshooting and maintenance, thereby minimizing the downtime of the site.
Programmability: Large programmable range; the degree of customization of control parameters can be carried out according to application conditions to adapt to different inputs in the industry.
Application Scope
Chemical and petrochemical industry: In chemical plants and refineries, F3330 is used to monitor and control complex production processes, such as temperature, pressure and flow of reactors and pipelines, ensuring the safety and precise stability of production operations.
Energy sector: It helps monitor and manage key facilities and systems, including generators, transformers and natural gas transmission pipelines, to maintain a constant energy supply.
Transportation: F3330 is used for signal control, train or traffic safety, and in many cases for railways, subways and highways, where traffic needs to run safely and efficiently.
Water treatment: It can monitor and control water quality parameters, flow and water level in water treatment plants, thereby providing safe and reliable water treatment.
