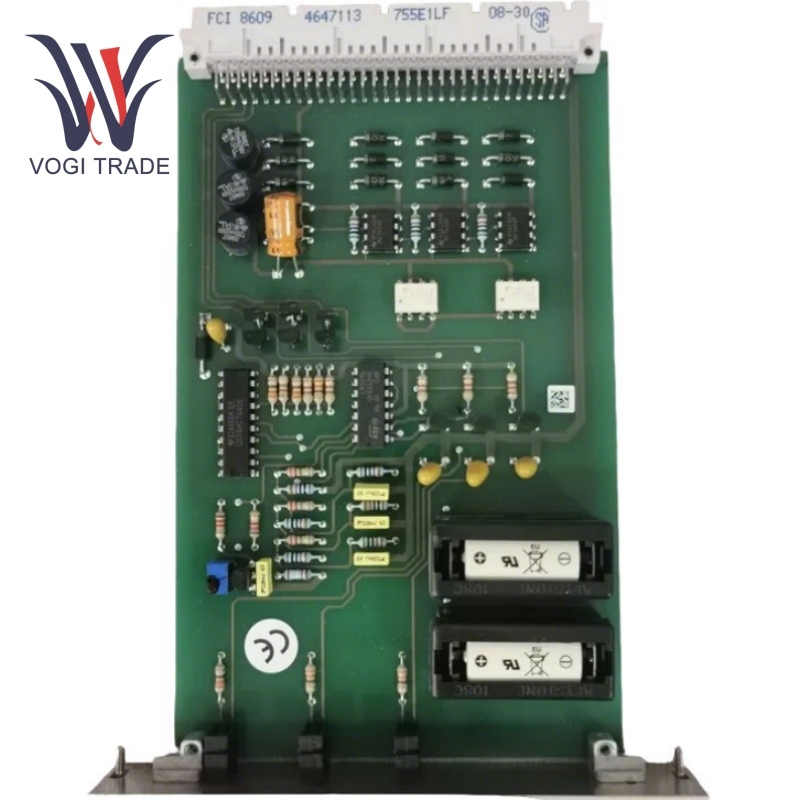

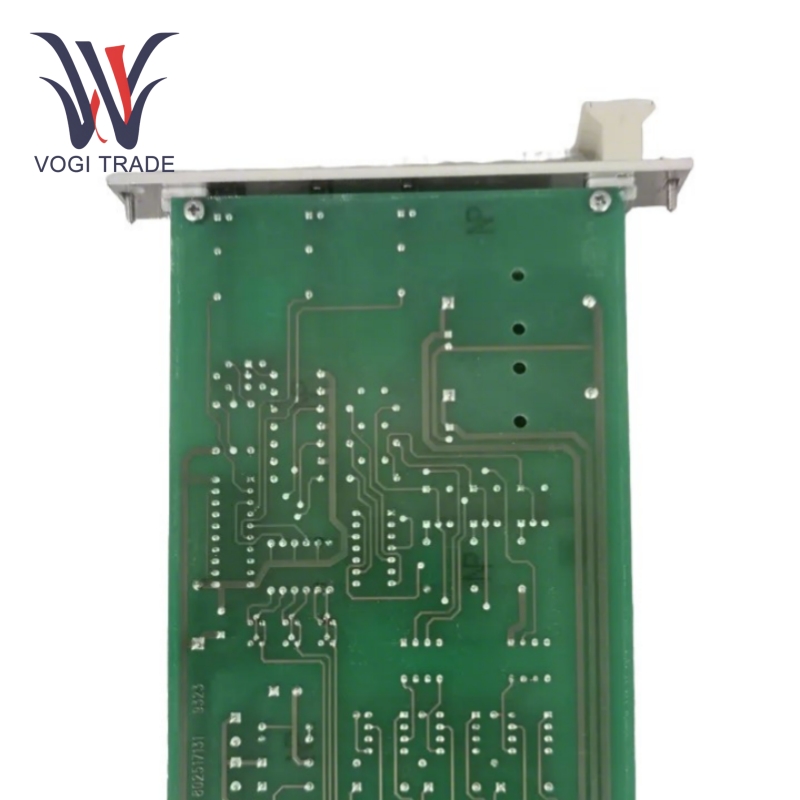

HIMA F5109B

Specification

Input rated voltage: 24V.

Input rated current: 15A.

Features

Good scalability : Hima F5109B is of much more good scalability allowing the soft hardware to be given modification and expansion without limitations during the operation of the system. It consists of unit, communication modules, and the power modular sections. Each 51Q system may be expanded to the extent of having up to 16 input/output subracks, and each of these racks accommodates 16 I/O modules each of which fits any individual needs of an industrial automation system, which varies in range and complication, also provide customers the flexible measurements while upgrading their systems depending on industrial necessities. To top it all, Hima F5109B's self-diagnosis technology can diagnose all hardware and software operations of the system within one scan period at a realization rate of 99.99%. Thus, it detects the exact location of the faulty module and displays it as four-bit characters in my CU info window and at workstation so that the maintenance personnel can quickly locate and troubleshoot faults, reduce system downtime, and improve production efficiency.

Advanced redundant configuration: H 41/51Q system where Hima F5109B is located adopts a CPU quadruple structure (QMR), which has stronger fault tolerance than the traditional triple structure. This redundant design ensures that whenever a part of the system fails, it will not put the other components or operations into disarray and significantly enhances the availability and reliability of the system that guarantees continuous industrial production.

Unlimited software changes: During the operation of the system, software and hardware can able to modify and expand without negation. This allows users to adjust subsequent control logic-algorithms-parameters and other software parts at any time according to actual production operation needs without imposing constraints or restrictions on the normal operation of the system. This flexibility will enable Hima F5109B to better adapt industrial application to differing production process requirements thereby providing the enterprises with more personalized automation solutions.

Application

Steel Manufacturing Industry: During steel production, Hima F5109B can be just placed in the automation control system of key equipment like blast furnaces, converters, and rolling mills. For example, the parameters furnace temperature, furnace pressure, and gas flow are monitored and controlled in real time in blast furnace ironmaking in order to stabilize and enhance efficiency in the iron-making process; in the steel rolling production line, the speed of the rollers, the rolling force, and the thickness accuracy of the steel plate are controlled to improve product quality and production efficiency.

Chemical industry: In the chemical production process, Hima F5109B is used to monitor and control key parameters such as the temperature, pressure, and liquid level of chemical reactors. In other words, the polymerization reaction production line of a large chemical enterprise, such as Hima F5109B, collects data by connecting devices such as temperature sensors, pressure transmitters, and liquid level gauges in real time and makes precise adjustments according to the specified control logic. When the temperature in the reactor rises abnormally, Hima F5109B sends instructions within seconds to adjust the flow of the cooling medium to ensure such a reaction does not go out of control, thereby preventing safety accidents and quality problems.

Oil and Gas Industry

Offshore Oil Platform: Hima F5109B can be applied to equipment safety protection and monitoring systems for offshore oil production, that is, real-time monitoring of the operating status of key equipment such as wellhead devices, oil pipelines, compressors, etc. In the event of equipment failure or abnormal conditions detected, such as pipeline leakage, compressor overload, etc., the system will trigger the emergency shutdown to always ensure the safety of personnel and protect the environment from pollution.

Land oil and gas processing plant: Hima F5109B is for controlling the operation of various valves, pumps, and compressors during the oil and gas processing processes, such as oil and gas separation, desulfurization, dehydration, etc.  Hima F5109B is feasible for fire and gas detection systems. In the event of fire and the escape of any combustible gas, the relevant safety measures are quickly put into action, such as shutting down related equipment and starting the fire protection system.
