HIMA F7130A

Technical Parameters

Input voltage: 24V DC, allowed bracket of - 15% to + 20%.

Ripple factor：RPP<15%.

Output voltage: 5V DC for central devices/IO modules, accuracy is ±0.25V and maximum output current is 10A. For Hibus, it is 5V DC, accuracy is ±0.25V and max output current 1A.

Protection function: Hima F7130A has an over-voltage, over-current, and short-circuit function. This would prevent excessive voltage inputs that can damage the module or related equipment from excessive input voltage, current limiting to ensure the module is within a safe current range of operation to prevent overload damage. The output circuit has a short-circuit protection function; during short circuits at the output, the module can cut off the output automatically, hence avoiding the expansion of the fault.

Conversion efficiency: Efficiency ≥ 70%, can help save energy and better energy utilization.

Operating temperature range: -10℃ to 60℃.

Communication interface: RS485 communications interface exists sometimes.

Protection level：IP20.

Input fuse: 5A GL.

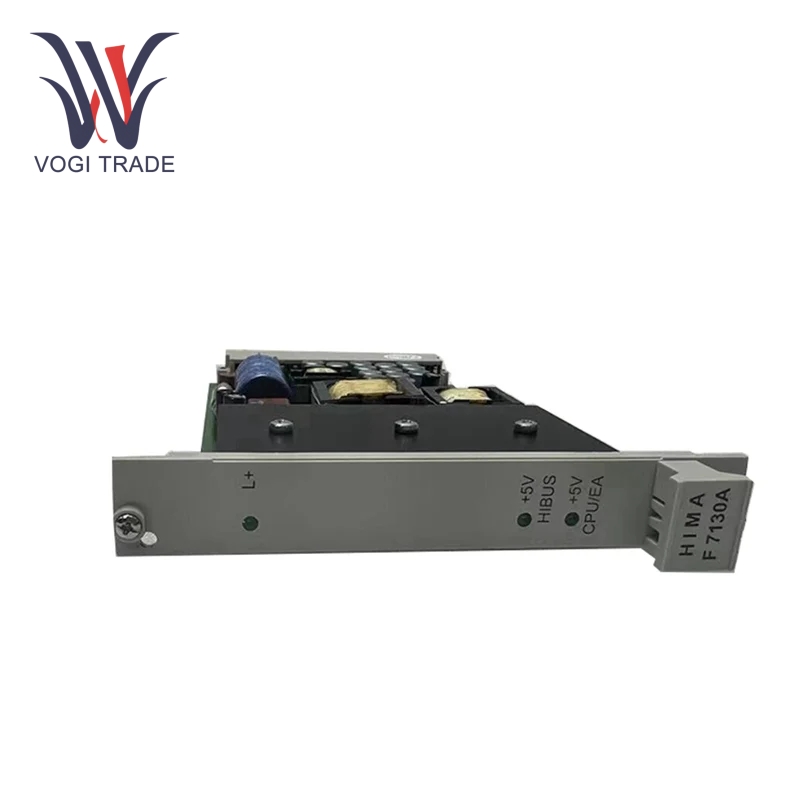

LED Indicator: The LED indicators on the front display can show the input voltage (L+) and output voltage status; even if the 5V CPU/EA indicator only occasionally glows dimly, normal module operation will still obtain assurance.

Appropriate protection level: Hima F7130A enjoys IP20 protection classification-it is physically inaccessible against intrusion by foreign objects, thus protecting its internal circuits and components, increasing reliability and overall lifetime of the products and adapting to general industrial physical protection requirements.

Features

Correctness of power output: Hima F7130A produces a stable voltage of 24V DC and can maintain output voltage variation within most extensive operational ranges. This is very important to various delicate electronic devices and accurate sensors in industrial automation systems. For example, apps that utilize either programming or control mechanisms frequently utilize such input or output regions for the appropriate power supply that must be stable and precise to ensure proper functioning and readings.

Sound protection functions: Hima F7130A has in-built electrical safety-or over-voltage, over-current, and short-circuit protection mechanisms. All these protection mechanisms act almost instantly in several worst-case electrical fault situations, and thus protect the power module itself and the equipment connected from damage. When the input voltage has an excessively high spike pulse or the voltage soars becomes abnormally high due to some grid fault, the Over-voltage Protection circuit will immediately seek to clamp the output voltage to a safer value to prevent large values of voltage from breaking down electronic components. Deemed called-overcurrent protection and short circuit protection functions at the output section will rapidly disconnect in circuit operation to prevent the high current that would have produced thermal damage to the equipment or safety catastrophes like fire during an overload or short circuit.Apart from that, Hima F7130A offers overheat protection as well. When the internal temperature is over the set threshold, it will automatically back down output power or follow other heat dissipation remedies, assuring the safe operation of the module.This excellent protection mechanism improves the safety and reliability of the equipment and also lessens equipment maintenance and replacement expenses due to electrical failures, therefore prolonging the service life of the entire automation system and giving a strong guarantee for safe production and steady operation of the enterprise.

Application

Transportation field: In the urban subway system, the station signal equipment is powered by Hima F7130A for the turnout control device, signal machine, and screen door control system. When the train enters the station, the signal system reliably controls the turnout and signal machine with the stable Hima F7130A supplying power for safe stopping of the train. The screen door control system is also able to work safely, thus ensuring security for passengers getting on, and off the train.The crane control system in the Port is powered by Hima F7130A for the crane position monitoring system and the safety limit system, giving safety and increased efficiency to port loading and unloading operations.

Pharmaceutical industry: Hima F7130A provides electricity for the temperature control and stirring system for the reactor and the temperature monitoring and humidity monitoring system for the clean room in the pharmaceutical production workshop.During pharmaceutical synthesis, the temperature of the reactor needs to be rather precisely controlled, and the stable power supply by Hima F7130A is what gives the temperature control system the accuracy it needs, as well as the quality of the ensuing medicine.The temperature and humidity monitoring system of the clean room also relies on the power supply of Hima F7130A for proper operation to maintain a conditioned environment that fulfills the demands of pharmaceutical production.

Food and beverage industry: In the production line of a beer brewery, Hima F7130A powers the temperature control system of the saccharification pot, the temperature pressure monitoring system of the fermentation tank, and the control system of the packaging equipment. One particular case is saccharification, wherein proper temperature control is pivotal to wort quality, and the temperature control subsystem is maintained in a stable operation by Hima F7130A. The control system for the packaging equipment also functions normally with the help of power supply from Hima F7130A during packaging, thus ensuring the high quality and efficiency of beer packaging.
