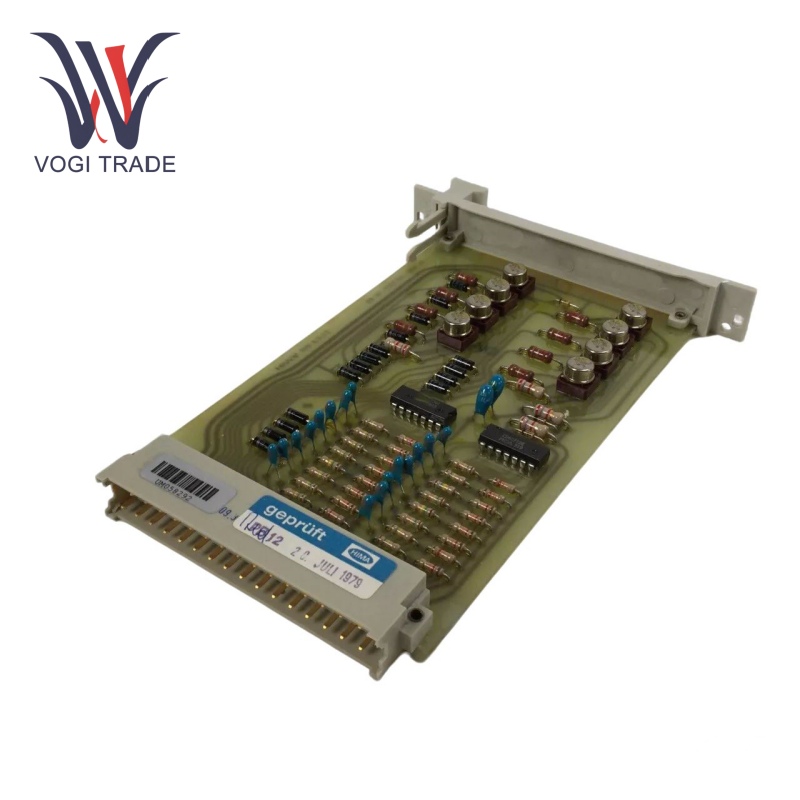

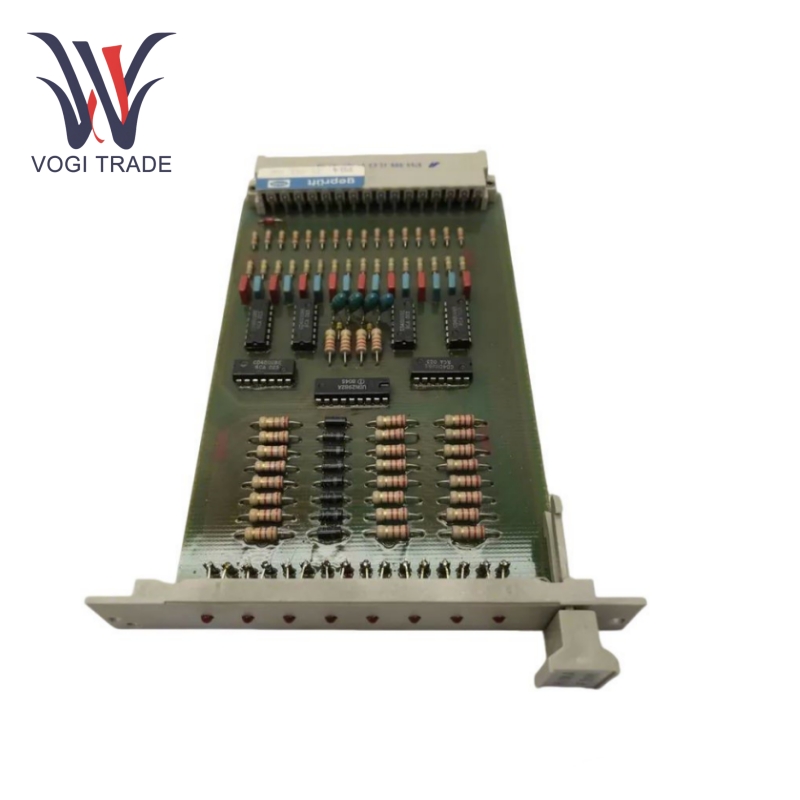

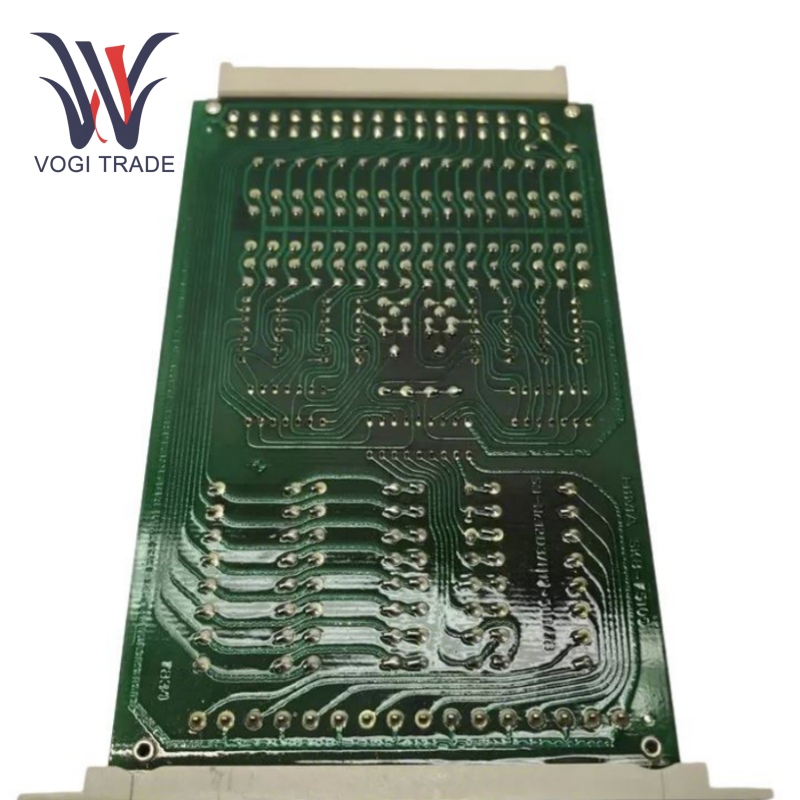

HIMA F7534

Technical Parameters

Voltage and current: The working voltage for Hima is 24V and the working current is 5A.

Communication function: It facilitates data connection and communication functions to establish communication between I/0 levels and central equipment. Supported communication protocols include Ethernet and OPC, towards efficient transmission and interaction of data in the system.

Bus coupling: The I/O bus coupling is combined into one module in the central slot and directly connected into the I/O rack, while F7553 coupling module is physically placed into slot 17 so that the data cable which connects every inner rack is back-ended with the BV7032 data cable.

Failure safety: under any system error condition, Hima F7534 can bring the plant into the safe state, and conduct different levels of shutting-down operations abiding by the defined response once fault takes place during operation to ensure system and equipment safety.

Hot plug: Hima F7534 commonly supports the hot plug function that involves inserting or removing modules without offending normal operation while the system is powered.

Features

Triple redundant design: Hima F7534 implements the redundant design concept to improve reliability and stability within the system. Power redundancy will supply power through dual power inputs. In case one fails, the other would take over after the system fails safely, with no chance of modules ceasing due to power problems. In terms of communication redundancy, its design supports redundant ethernet interfaces, per the engineer statement. Once the main communication link fails, the backup link automatically takes care of communications so that data transmission will go uninterrupted smoothly. Power redundancy also exists on the major cycle of signal processing, including those designed with redundant ADC or DAC circuits. With minimal system functions maintained through redundant parts, all signal processes remain functional and the risk of entire plant shutdown is obstructed. The mentioned design is certainly satisfactory for industries strictly demanding reliability, including power substations, chemical continuous production and testing of ground systems in aerospace.

Powerful analog input processing: Hima F7534 possesses an admirable analog input processing capacity and can accept different sorts of analog signals, including voltage types that can approximately cover the commonly reserved ranges in Industries from-o to I0V within the given frame, - 10V to -10V; current signals from 0 to I ma and -4-20mA. The Hima F7534 utilizes an accurate analog-to-digital converter (ADC) for transforming analog signals into digital quantities. This gives an internal precision of conversion up to 16 bits or more; thus, extremely small changes in the analog signals can be monitored subsequently. In industrial process control, it deals with monitoring parameters such as temperature and pressure in the reactor while producing chemicals; a minute change in temperature or pressure may affect the product quality or production safety. Hima F7534 has a high degree of ability to process analog input in which accurate real-time change values of these parameters are obtained and fed back to the control system for subsequent precise control.

Application

Pharmaceutical and food processing industry: During the production of medicines, the Hima F7534 controls environmental parameters and the operating conditions of production equipment, such as the temperature and humidity in clean rooms, and monitors for possible defects in pharmaceutical devices, so as to ensure the quality of medicines is up to the established standards. Hima F7534 controls equipment and protects safety on food production lines in the food processing industry-such as control of operation of food packaging equipment and monitoring of cold storage temperature-to ensure the standards of food quality and safety.

Aerospace use: Hima F7534  can be used during aircraft manufacturing for control and protection of a variety of automation equipment, test equipment, tools, etc. on the aircraft assembly line, ensuring the quality and efficiency of the aircraft manufacturing process.

Energy management and use of renewable energy: In traditional energy management, Hima F7534 can be useful in the control of equipment and energy distribution management in power stations, substations, etc., to enhance the efficiency of energy utilization. In renewable energy-such as solar power generation and wind power generation, Hima F7534  can monitor and control its context within energy generation systems to ensure the stability and efficiency of energy production: for instance, monitoring of solar panels and speed of wind turbines.
