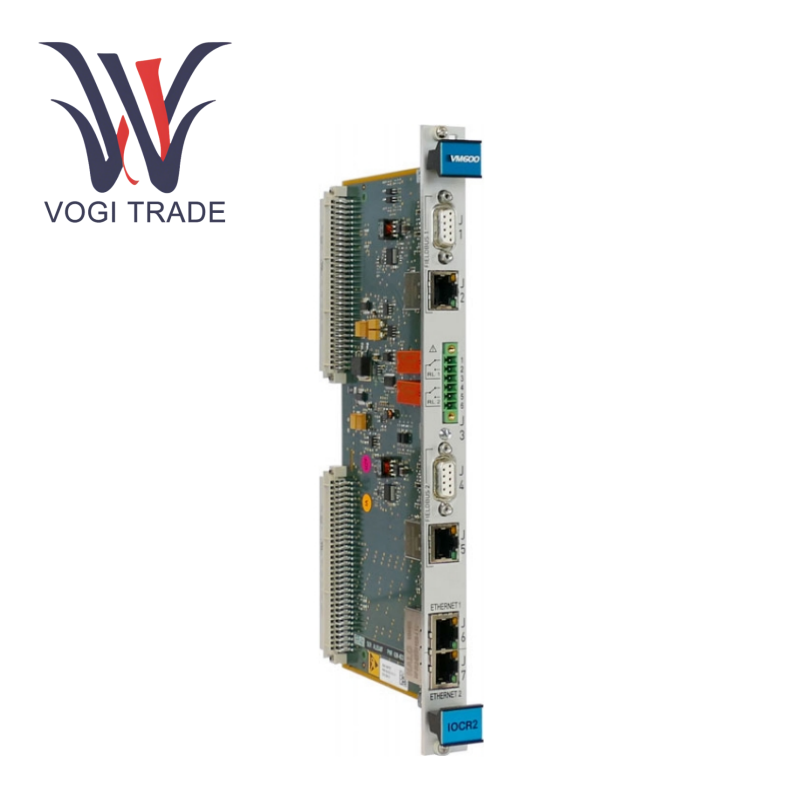

Brand: Vibro-Meter Description:Communications Interface Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty:4 Payment Term: T/T Shipping Port: ShenZhen IOC-R2 620-022-000-112 is a Communications Interface Card that provides high reliability data exchange and real-time monitoring capabilities for rotating machinery protection systems.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IOC-R2 |
|
Ordering Number |
620-022-000-112 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
85371090 |
|
Dimension |
154 × 30 × 125mm |
|
Packing Dimension |
240 × 180 × 80mm |
|
Weight |
0.8kg |
Core parameters
System Ethernet: 2×10/100/1000BASE-TX transmission distance 100m
Fieldbus: 2×RS-485 + 2×10/100BASE-TX
Relay output: 2×SPDT contact (5A/240VAC, mechanical life 15 million times)
Isolation level: Ethernet port 1500V RMS, serial port 700V RMS
Environmental adaptability - Operating temperature: 0~65℃ (≤45℃ at 5A load)
Storage temperature: -20~85℃
Humidity: 0~90% RH
Power consumption and certification - Typical power consumption: 6W (CPUR2/IOCR2 pairing)
Certification: EN 61000-6-2/4 + EN 61010-1 + RoHS
Core functions
1. Multi-protocol gateway
Synchronously supports Modbus TCP and PROFIBUS DP protocols, and can be connected to DCS/PLC systems in parallel. Data processing capacity: 131,072 registers + 131,072 coils (Modbus), 244 bytes × 2 channels (PROFIBUS)
2. Redundant architecture
Dual Ethernet + dual fieldbus interfaces, support automatic link switching
System network isolation: independent subnet division ensures communication security
3. Intelligent operation and maintenance
Hot-swappable design: supports online replacement of protection cards (MPC4) and automatic reload configuration
Diagnostic log: obtain the health status of the card in real time through VibroSight® software
Differentiation advantages
1. Industrial-grade protection
Fully isolated interface design (1500V/700V) through EN 61326-3-1 strict EMC certification, effectively resisting on-site electromagnetic interference
2. Visual monitoring
The front panel is equipped with 8 groups of LED status lights (including LINK/ACT dual indications), which provide real-time feedback on the communication link and card operation status
3. Flexible expansion
The J3 relay interface supports custom mapping of Modbus variables and can remotely transmit system-level alarm signals
Typical application scenarios
Large rotating machinery protection
In the gas turbine monitoring system, IOC-R2 620-022-000-112 is used as a communication hub to transmit MPC4 vibration protection card data to DCS in real time to trigger interlocking control
Factory digital upgrade
Connect compressor group status data to PLC system through PROFIBUS DP to build a predictive maintenance platform
