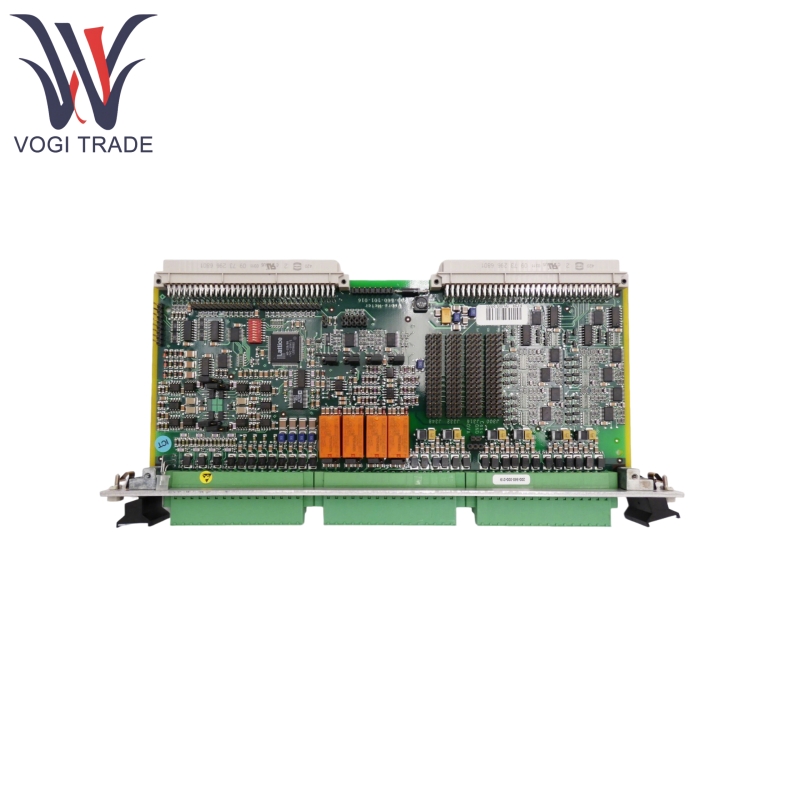

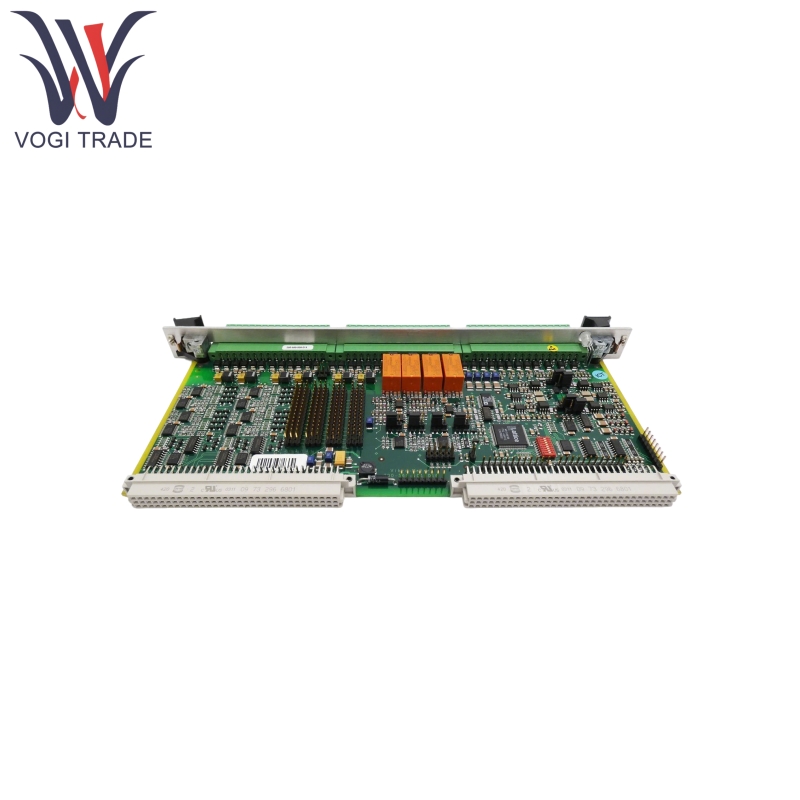

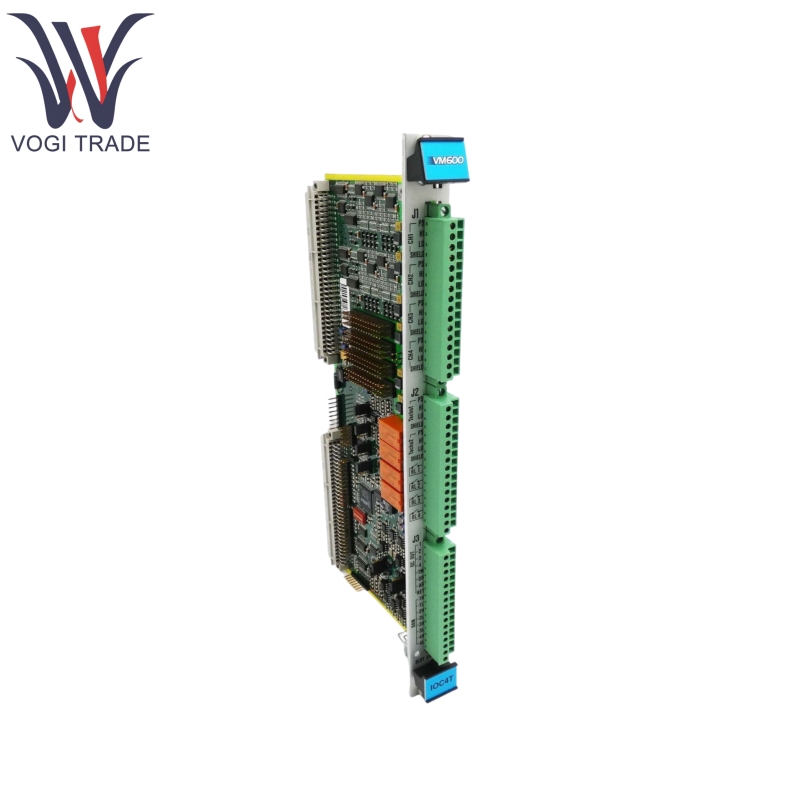

Brand: Vibro-Meter Description: Input/Output Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen IOC4T 200-560-000-214 input/output card main function is to receive the sensor signals and pass them on to the MPC4 for processing, and to transmit the processed signals to an external system via the output interface.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IOC4T |
|
Ordering Number |
200-560-000-214 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*4*14cm |
|
Weight |
0.4kg |
Product Feature
IOC4T 200-560-000-214 has 4 dynamic signal inputs and 2 RPM inputs to support signal acquisition for the MPC4 Machine Protection Card.
IOC4T 200-560-000-214 has buffered “raw” sensor signals and analog outputs (voltage 0-10V or current 4-20mA, selectable via jumpers) for easy signal multiplexing of the vibration channels.
IOC4T 200-560-000-214 has 4 relays that can be assigned to alarm signals via software to support alarm triggering from external systems.
IOC4T 200-560-000-214 has 32 fully programmable open collector outputs that can be connected to IRC4 Smart Relay Cards and RLC16 Relay Cards to expand alarm capabilities.
Product Using Principle
IOC4T 200-560-000-214 can receive 4 channels of dynamic signals (e.g. vibration) and 2 channels of RPM signals through the J1/J2 connector and pass them to the MPC4 card for processing.
The signals processed by MPC4 output the raw sensor signals through the buffer circuit of IOC4T and are converted into 4 analog signals (0-10V/4-20mA) for external monitoring.
Based on the processing results, MPC4 controls the 4 local relays of IOC4T through IP interface or the relays of RLC16/IRC4 card through rack bus to trigger alarms; DSI input signals (AR/DB/TM) can be dynamically adjusted to alarm status.
IOC4T 200-560-000-214 ensures stable operation in industrial environments through EMI protection and isolation design, and supports hot-swapping to simplify maintenance.
Product Parameter
IOC4T 200-560-000-214 detail specification as below
|
Category |
Details |
|
Dynamic signal inputs |
With EMI filtering, compliant with EC standard |
|
Speed / phase reference inputs |
With EMI filtering, compliant with EC standards |
|
Analog outputs (DC) |
4 channels, supporting 0-10V voltage or 4-20mA current (selectable via jumper for each channel) accuracy ≤ ±1.5%, linearity error ≤ ±0.5% voltage output load > 100kΩ, current output load < 325Ω |
|
Relay outputs |
4 relays (RL1-RL4), model PE014005, supporting 1 set of NC or NO contacts (user-configurable) rated voltage 250VAC, rated current 5AAC maximum breaking capacity 1250VA (without contact protection) in ABE056 slimline rack (DC power supply), the maximum switching voltage is 70VDC/33VAC (RMS) |
|
Open-collector outputs |
32 channels, connectable to RLC16/IRC4 cards via the OC bus or Raw bus of the VM600 rack |
|
Operating temperature |
−25 to 65 °C (−13 to 149 °F) |
|
Storage temperature |
−40 to 85 °C (−40 to 185 °F) |
|
Humidity |
Operating: 0 to 90 % non-condensing Storage: 0 to 95 % non-condensing |
|
Vibration |
Conforms to IEC 60255-21-1 (Class 2) |
