IQS900 204-900-000-011-A1-B31-C1-H10-I0

Product Overview

Target application and signal output

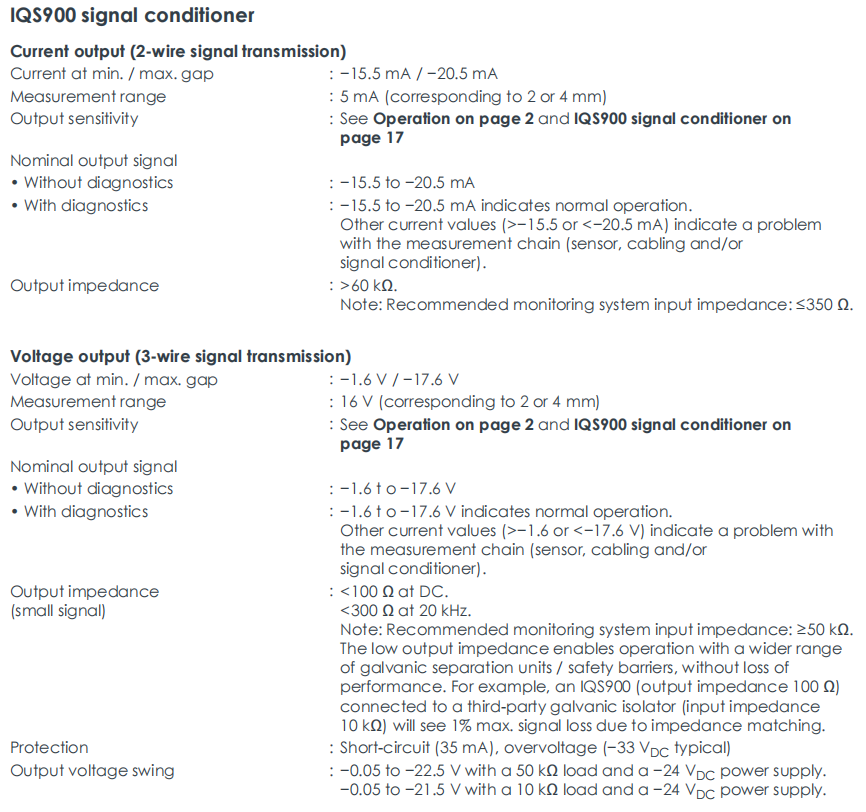

This system IQS900 204-900-000-011-A1-B31-C1-H10-I0 is specifically designed for monitoring the relative vibration of the shafts and the axial position/clearance of rotating machinery such as turbines, compressors, and pumps. IQS900 output signal simultaneously contains

The dynamic AC component can precisely reflect the radial vibration of the shaft with a frequency as high as 20 kHz, and is suitable for fault diagnosis and spectral analysis.

The static DC component represents the static average position or clearance of the shaft (such as axial play).

This system is designed in accordance with the API 670 standard and is an ideal choice for mechanical protection and predictive maintenance applications. Specific model analysis

A1      Standard industrial environment version (non-explosion-proof).

B23    4 mm linear measurement range, voltage output, sensitivity of 4 mV/µm. 204-900-000-011-A1-B31-C1-H10-I0 is suitable for monitoring a large range of displacement and vibration.

C1      No built-in diagnostic function. IQS900 is a standard economy configuration.

H10    The total system length is 10 meters. The combined total length of the sensor integrated cable and the extension cable was specified to ensure the optimal electrical performance of the system.

I0       The installation method is to directly use the M4 screw of the main body for installation, and it does not include a DIN rail adapter.
