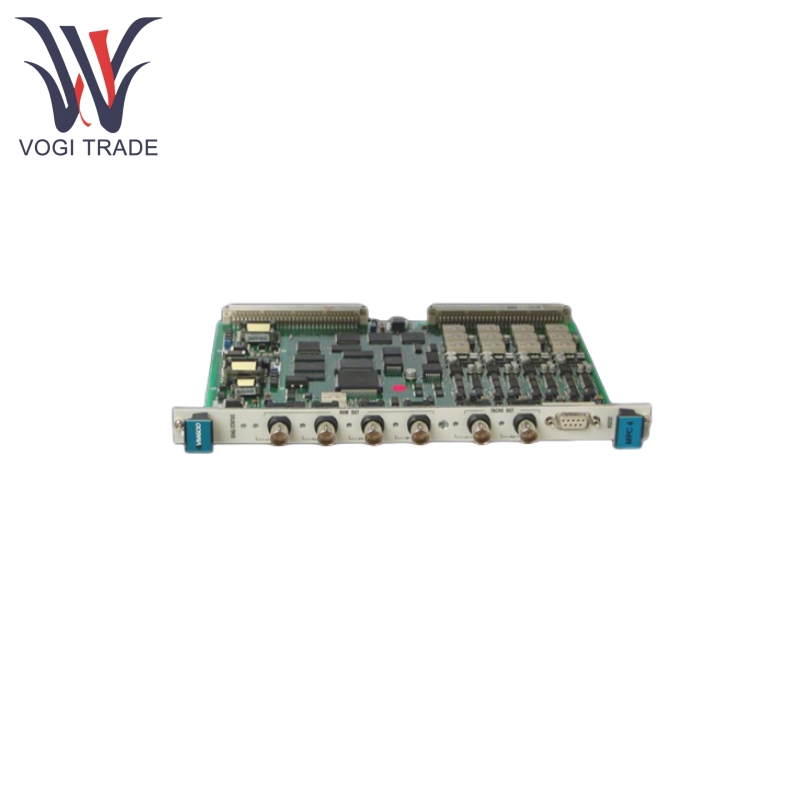

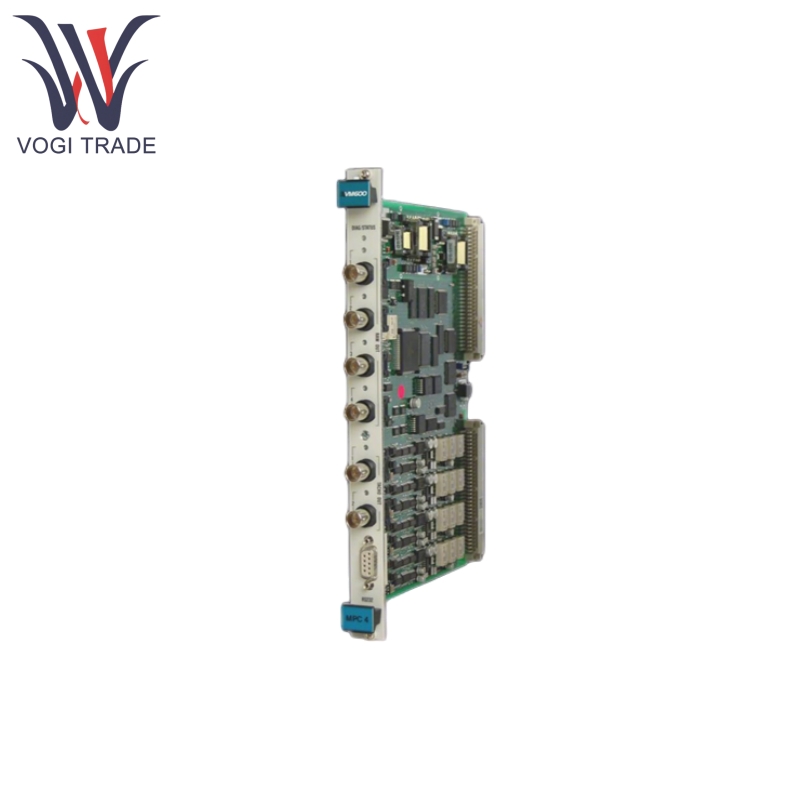

Brand: Vibro-Meter Description: Machinery Protection Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen MPC4 200-510-078-215 is designed for machinery protection and condition monitoring, and can simultaneously measure and monitor 4 dynamic signals and 2 rotational speed signals, realize multi-parameter real-time monitoring through digital signal processing, and work with the matching IOC4T input/output card to provide alarm control and signal output functions.
|
Manufacture |
Vibro-Meter |
|
Model Number |
MPC4 |
|
Ordering Number |
200-510-078-215 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*20*4cm |
|
Weight |
0.6kg |
Product Feature
MPC4 200-510-078-215 has programmable support for acceleration, velocity, displacement and other signals, and can measure physical quantities such as relative/absolute vibration, Smax, eccentricity, thrust position, case expansion and more.
MPC4 200-510-078-215 is compatible with proximity probes, magnetic pulse sensors, TTL signals, and more, and supports fractional speed ratios from 0.016 Hz to 50 kHz (input) and 0.016 Hz to 1092 Hz (1 to 65535 RPM) after processing.
MPC4 200-510-078-215 has digital processing capabilities, including digital filtering, integration/differentiation, rectification, order tracking, sensor gap measurement.
MPC4 200-510-078-215 supports Alert and Danger thresholds, configurable alarm delays, hysteresis, latching, and alarm levels that are adaptively adjusted with speed or external signals.
MPC4 200-510-078-215 can drive 4 local relays via the IOC4T card or be extended to the RLC16/IRC4 relay card via the Raw bus/open collector (OC) bus of the VM600.
Product Using Principle
MPC4 200-510-078-215 receives 4 dynamic signals and 2 RPM signals through the front-end interface, buffers them and sends them to the digital signal processor.
MPC4 200-510-078-215 can filter, integrate/differentiate, rectify and order track the signals, calculate the physical parameters and compare them with the programmable Alert/Danger thresholds.
MPC4 200-510-078-215 monitors the status of the sensor link in real time. If the threshold is exceeded or the link fails, it triggers an alarm and outputs a relay signal or bus signal through the IOC4T.
MPC4 200-510-078-215 can convert the processed signals into analog (0-10V/4-20mA) for output via the IOC4T; communicate with the IOC4T via the IP interface, supporting RS-232/VME configuration (requires CPUx card for Ethernet configuration).
Product Application
MPC4 200-510-078-215 can be used to monitor vibration, speed, displacement and other parameters of rotating machinery such as turbines, generators, pumps, compressors and other rotating machinery to prevent equipment from operating beyond limits.
MPC4 200-510-078-215 can provide real-time data to support equipment health analysis, and is suitable for critical equipment in electric power, oil and gas, and industrial manufacturing.
MPC4 200-510-078-215 is particularly suitable for industrial scenarios with strict requirements for circuit isolation (separate circuit version), such as explosion-proof and high-interference environments.
