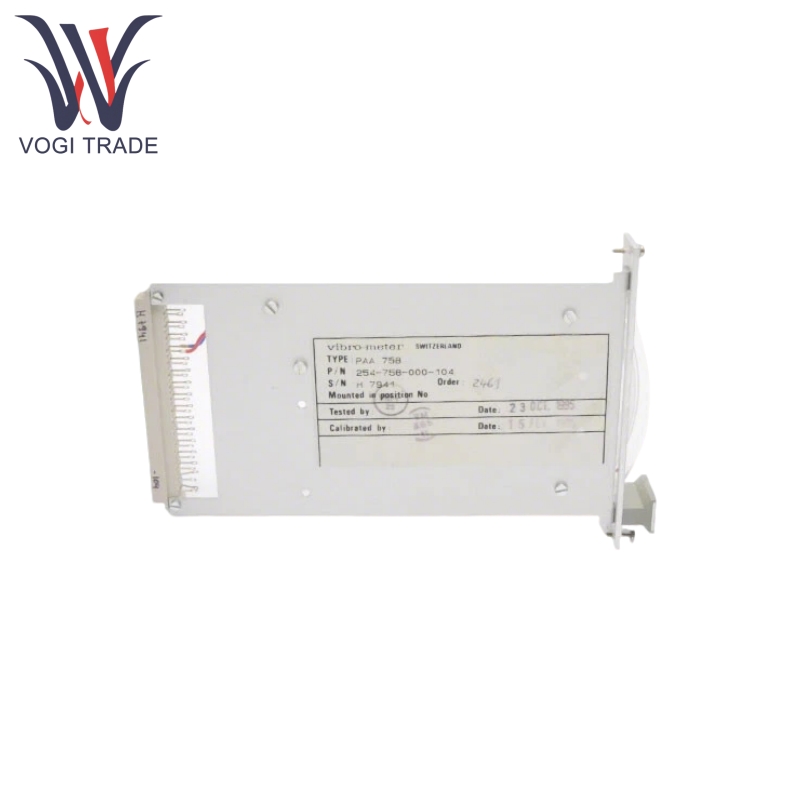

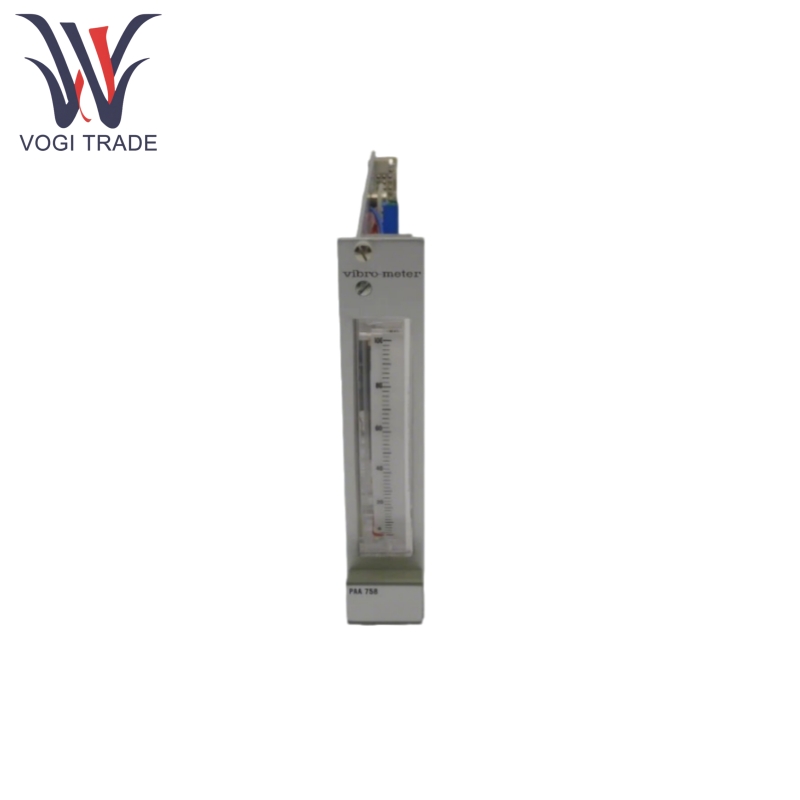

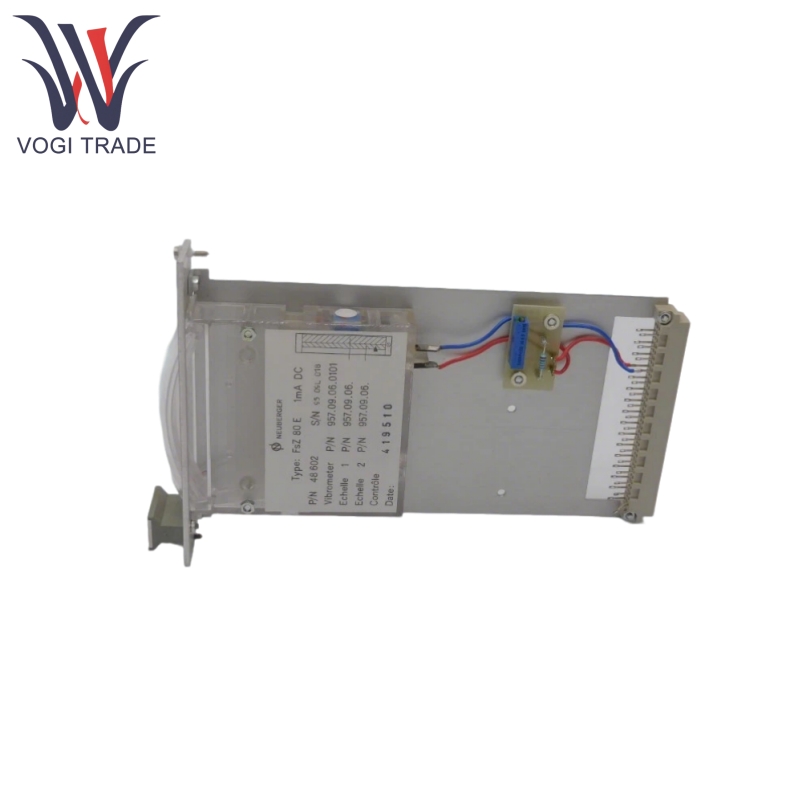

Brand: Vibro-Meter Description: Indicator Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen PAA758 254-758-000-104 can support multi-channel signal inputs and outputs, and can display key parameters such as vibration amplitude, frequency, phase, etc. in real time, and has over-limit alarm function. Its design is compatible with industrial standard communication protocols, suitable for long-term reliable operation in complex industrial environments.
|
Manufacture |
Vibro-Meter |
|
Model Number |
PAA758 |
|
Ordering Number |
254-758-000-104 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8531909000 |
|
Dimension |
10*8*5cm |
|
Weight |
0.4kg |
Product Feature
PAA758 254-758-000-104 supports multi-dimensional measurements of vibration velocity, acceleration, displacement, and so on.
PAA758 254-758-000-104 has a built-in spectrum analysis function to identify abnormal frequency characteristics of equipment (e.g. gearbox failure, bearing wear).
PAA758 254-758-000-104 can configure multi-level alarm thresholds and trigger external devices through relay outputs or communication interfaces.
PAA758 254-758-000-104 can monitor the module working status in real time and feedback fault information.
PAA758 254-758-000-104 can provide communication interfaces such as RS-485, Modbus RTU/TCP, etc., and can be integrated with PLC, SCADA system or upper computer software.
PAA758 254-758-000-104 supports data storage and historical trend query, which is convenient for fault tracing and predictive maintenance.
PAA758 254-758-000-104 is suitable for high temperature, dust, humidity and other harsh environments. Anti-electromagnetic interference (EMI) design ensures signal stability.
Product Using Principle
PAA758 254-758-000-104 can collect vibration signals through front-end sensors, and convert them into digital signals after amplification and filtering by conditioning circuit.
PAA758 254-758-000-104 has a built-in microprocessor to perform FFT spectrum analysis on the signal to identify the vibration characteristic frequency and compare it with the preset threshold value.
When the vibration parameter exceeds the set threshold, the module triggers a relay output (normally open/closed) and sends an alarm code through the communication interface.
PAA758 254-758-000-104 supports “event-triggered” data storage, automatically recording waveform and spectrum data before and after the alarm.
PAA758 254-758-000-104 can be used with VIBRO-METER's MPC4 protection card, AMC8 analog input module, etc. to form a complete machinery protection system.
Product Parameter
The following detail is for PAA758 254-758-000-104 Indicator Module.
|
Item |
Specification |
Test Standard |
|
Input Signal Type |
4-20mA, ±10V, IEPE sensor |
Industry Standard |
|
Measurement Range |
Velocity: 0-200mm/s (RMS) Acceleration: 0-50g (Peak) Displacement: 0-2000μm (Peak-to-Peak) |
Dynamic range ≥100dB |
|
Frequency Response |
0.5Hz ~ 10kHz (±3dB) |
ASTM D-4781 |
|
Accuracy |
±1% FS (Typical) |
Calibration cycle: 12 months |
|
Supply Voltage |
24VDC ±10% |
Power consumption ≤5W |
|
Communication Protocol |
Modbus RTU/TCP, PROFINET |
Customizable |
