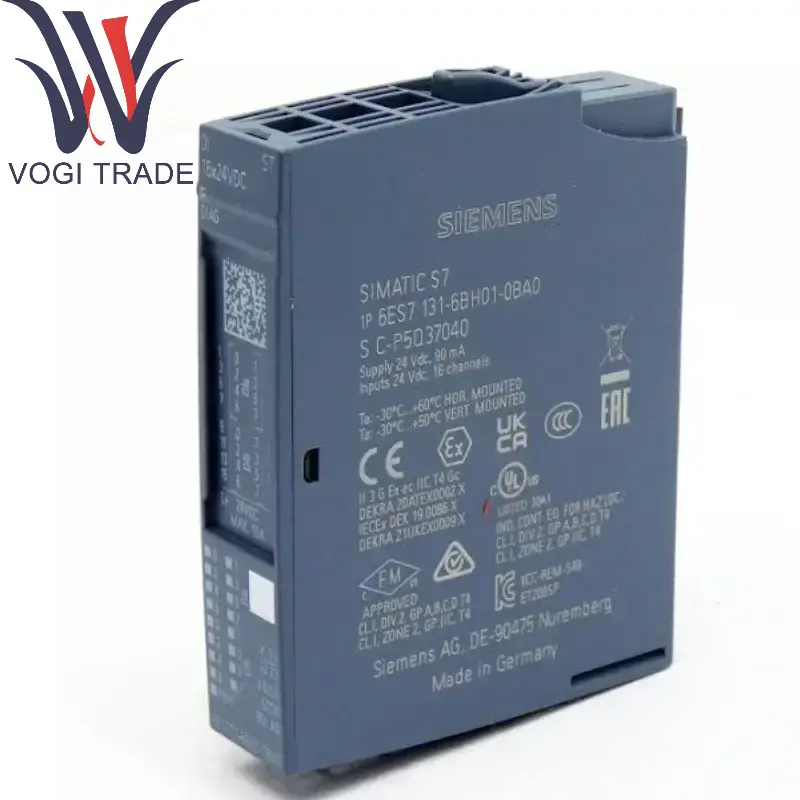

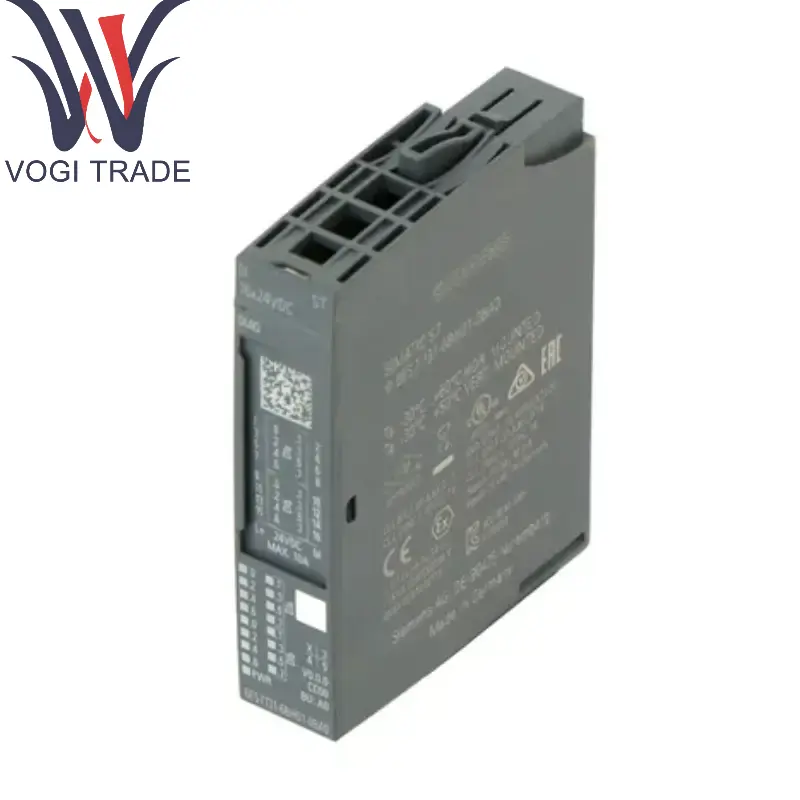

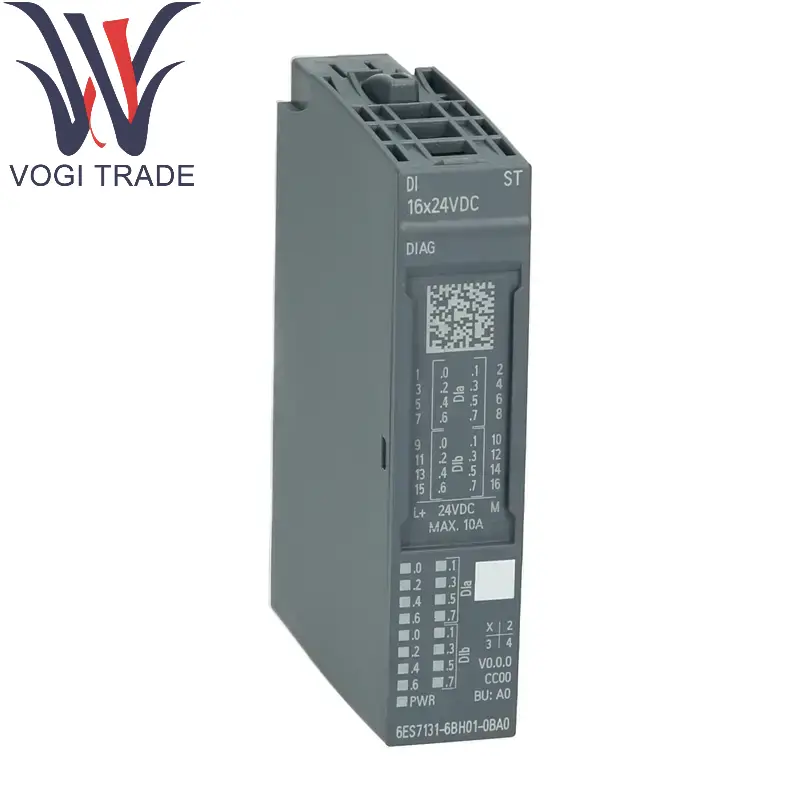

Siemens 6ES7131-6BH01-0BA0

Product parameters

Electrical characteristics

Number of input points: 16 channels (8 channels per group)

Input voltage: 24V DC (rated value)

Input logic:

"1" signal: 15-30V DC

"0" signal: -3 to +5V DC

Input delay: configurable (usually 0.1ms/3ms/15ms)

Isolation method: optoelectronic isolation (between channels and between channels and backplane bus)

Mechanical and connection

Module width: 15mm (compact design)

Connection method: Siemens 6ES7131-6BH01-0BA0 connected via BaseUnit (such as BU15-P16+A0+2D)

Wiring type: supports push-in spring connection (no tools required)

Diagnostic function

Siemens 6ES7131-6BH01-0BA0 supports short circuit, wire break, overload diagnosis

Status can be monitored through PLC or TIA Portal software

Compatibility

System support: SIMATIC S7-1500, S7-1200 (via PROFINET)

Communication protocol: PROFINET IO (needs to cooperate with interface module such as IM 155-6)

Environmental conditions

Working temperature: -20℃ to +60℃

Protection level: IP20 (needs to be installed in the control cabinet)

Product features

Modular design: Siemens 6ES7131-6BH01-0BA0 supports hot-swap, easy to expand and maintain.

High-density channels: 16-point input saves space and is suitable for dense wiring scenarios.

Flexible configuration: adjustable input delay to adapt to different signal types (such as pulse or continuous signals).

Integrated diagnosis:Siemens 6ES7131-6BH01-0BA0 reduce downtime and improve system reliability.

Application areas

Industrial automation

Digital signal acquisition of machine tools and packaging machinery (such as sensors and button status).

Process control

Monitoring the switching status of equipment such as valves and limit switches.

Logistics system

Sensor signal processing of sorting lines and conveyor belts.

Automobile manufacturing

Real-time detection of equipment status in assembly lines.

Energy management

Remote monitoring of circuit breaker status in distribution cabinets.
