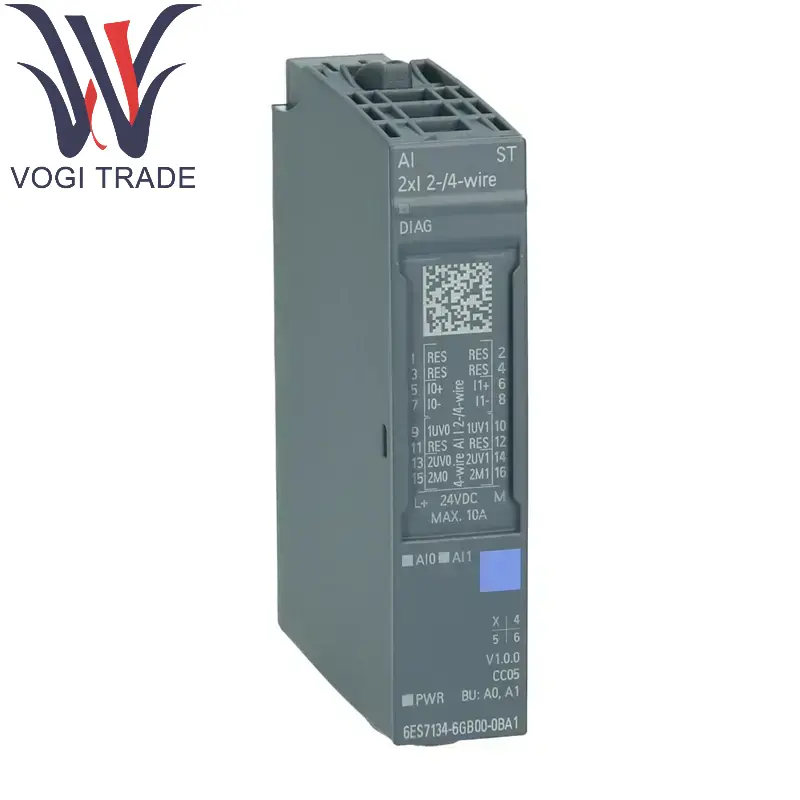

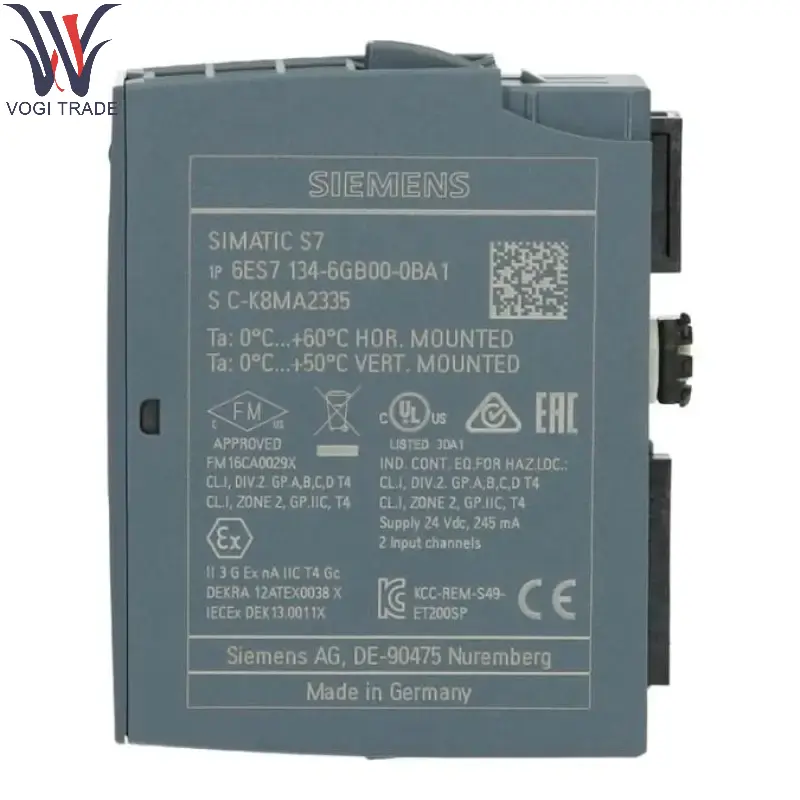

Brand: Siemens Description: Analog Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7134-6GB00-0BA1 SIMATIC ET 200SP, Analog input module, AI 2xI 2-/4-wire Standard, Pack quantity: 1 unit, suitable for BU type A0, A1, Color code CC05, Module diagnostics, 16 bit.
|
Manufacture |
Siemens |
|
Model Number |
6ES7134-6GB00-0BA1 |
|
Catalog |
SIMATIC ET 200SP |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
6.8cm x 7.9cm x 2.4cm |
|
Packing Dimension |
8.8cm x 9.9cm x 4.4cm |
|
Weight |
0.040kg |
Product Introduction
Function:
16-point digital input, supports 24V DC standard industrial signals.
Channel isolation: 8 channels are electrically isolated as a group (two groups of isolation).
Diagnostic function: supports short circuit, wire break, overload and other diagnostic alarms.
Modular design: Adopts the compact design of ET 200SP, supports hot plugging (need to cooperate with the base unit).
Compatibility: Seamless integration with SIMATIC S7-1500, S7-1200, WinAC and other controllers.
Key features:
Input voltage range: 0V to 30V DC (24V rated).
Input current: about 3mA (per channel).
Response time: <0.1ms (configurable filter time).
Siemens 6ES7134-6GB00-0BA1 supports PROFINET or PROFIBUS communication (interface module required).
Product details
Mechanical and electrical parameters:
Dimensions: about 30mm wide (single module).
Power consumption: typical 1W (no load).
Wiring method: quick wiring through BaseUnit (base unit), such as BU15-P16+A0 (6ES7193-6BP00-0DA1).
Protection level: IP20 (needs to be installed in the control cabinet).
Certification and standards:
Siemens 6ES7134-6GB00-0BA1 complies with international standards such as CE, UL, ATEX (industrial explosion-proof).
Siemens 6ES7134-6GB00-0BA1 supports EMC anti-interference design in industrial environments.
Application fields
Typical application scenarios:
Industrial automation: Siemens 6ES7134-6GB00-0BA1 used for PLC system switch signal acquisition (such as buttons, sensors, limit switches, etc.).
Production line control: equipment monitoring in automobile manufacturing, packaging machinery, and food and beverage industries.
Process control: Siemens 6ES7134-6GB00-0BA1 combined with other ET 200SP modules to achieve distributed I/O solutions.
Energy management: monitor equipment status (such as motor run/stop signals).
Advantages:
High density and space saving: 16 channels are integrated in a narrow module.
Flexible expansion: easily expand the number of I/O points through the ET 200SP system.
Diagnostic capabilities: reduce downtime and improve maintenance efficiency.
