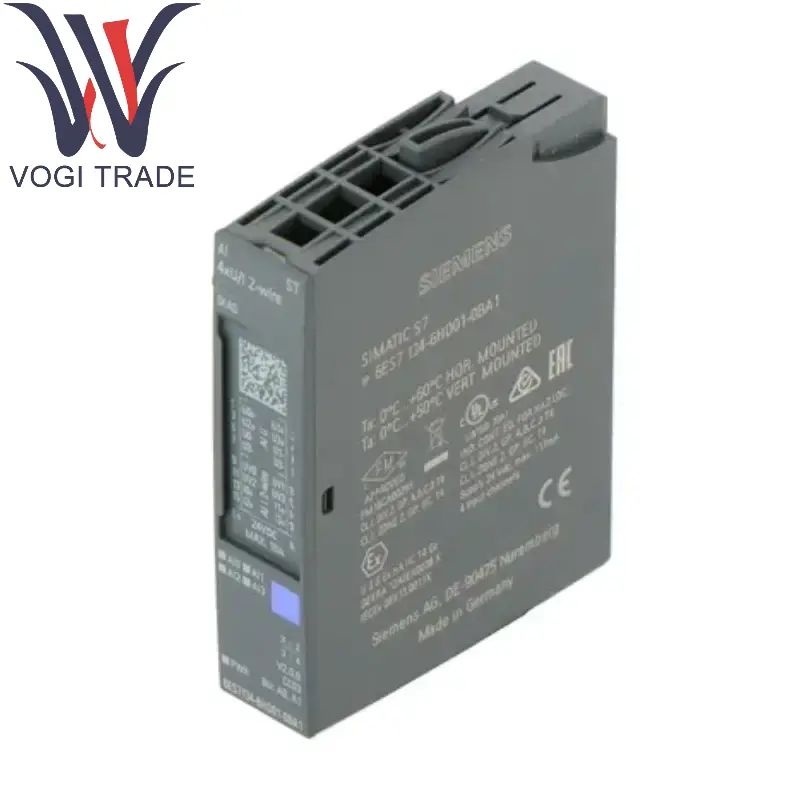

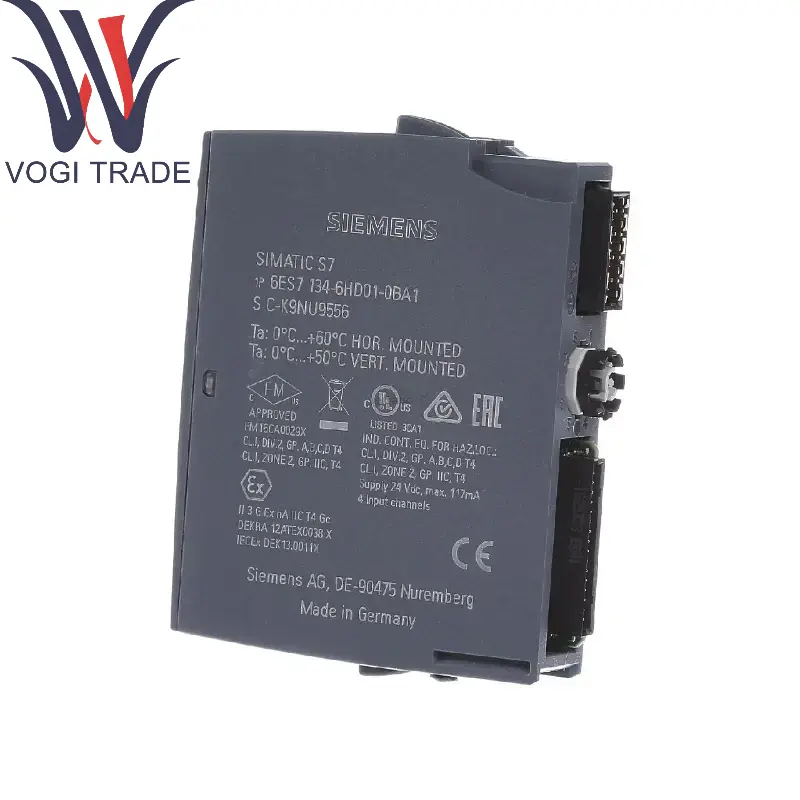

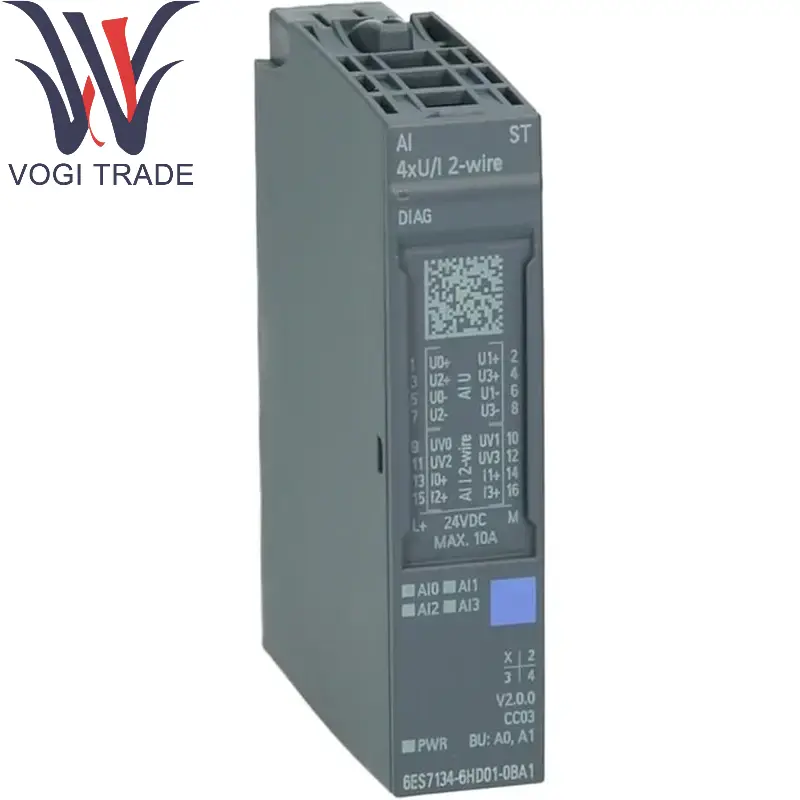

Brand: Siemens Description:Analog Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7134-6HD01-0BA1 SIMATIC ET 200SP, ANALOG INPUT MODULE, AI 4XU/I 2-WIRE STANDARD, PACKING UNIT: 1 PIECE, FITS TO BU-TYPE A0, A1, COLOR CODE CC03, MODULE DIAGNOSIS, 16BIT, +/-0,3%
|
Manufacture |
Siemens |
|
Model Number |
6ES7134-6HD01-0BA1 |
|
Catalog |
SIMATIC ET 200SP |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
1.5cm×7.3cm×5.8cm |
|
Packing Dimension |
3.5cm×9.3cm×7.8cm |
|
Weight |
0.031kg |
Product Description
Model: 6ES7134-6HD01-0BA1
Product Name: SIMATIC ET 200SP Digital Input Module
Series: ET 200SP
Module Type: Digital Input (DI), 16 channels, High Feature
Electrical Specifications: Siemens 6ES7134-6HD01-0BA1 supports 24V DC input, single-ended or differential input optional
Product Introduction
Functional Features:
16-channel digital input: can be connected to binary signal devices such as buttons, proximity switches, photoelectric sensors, etc.
High flexibility: Siemens 6ES7134-6HD01-0BA1 supports source (PNP) or sink (NPN) input configuration to adapt to different sensor types.
Diagnostic function: supports channel-level diagnosis, improving system reliability.
Modular design: adopts the compact design of ET 200SP and supports hot plugging.
Split potential design: allows different channel groups to use different reference potentials.
Technical parameters:
Input voltage: 24V DC (rated range)
Input current: typical 2mA (per channel)
Filter time: configurable (0.1ms/0.8ms/3ms, etc.), to meet different signal response requirements.
Communication interface: Siemens 6ES7134-6HD01-0BA1 communicate with PLC via PROFINET or PROFIBUS
Product details
Mechanical and electrical characteristics:
Module width: 15mm.
Wiring method: quick wiring via Base Unit (base unit), support spring clamping or screw connection.
Operating temperature: -20°C to +60°C (industrial grade environmental adaptability).
Protection level: IP20 (suitable for installation in control cabinet).
Compatibility:
Siemens 6ES7134-6HD01-0BA1 need to be used with Base Unit of ET 200SP.
Siemens 6ES7134-6HD01-0BA1 supports TIA Portal (Totally Integrated Automation) platform configuration, STEP 7 or GSD file import.
Application areas
Industrial automation:
Digital signal acquisition for production lines, packaging machinery, conveying systems and other scenarios.
Process control:
Siemens 6ES7134-6HD01-0BA1 connect limit switches, safety door locks and other equipment to achieve status monitoring.
Automotive manufacturing:
Production line control with high-density input requirements.
Energy management:
Monitoring of switch status in distribution cabinets.
