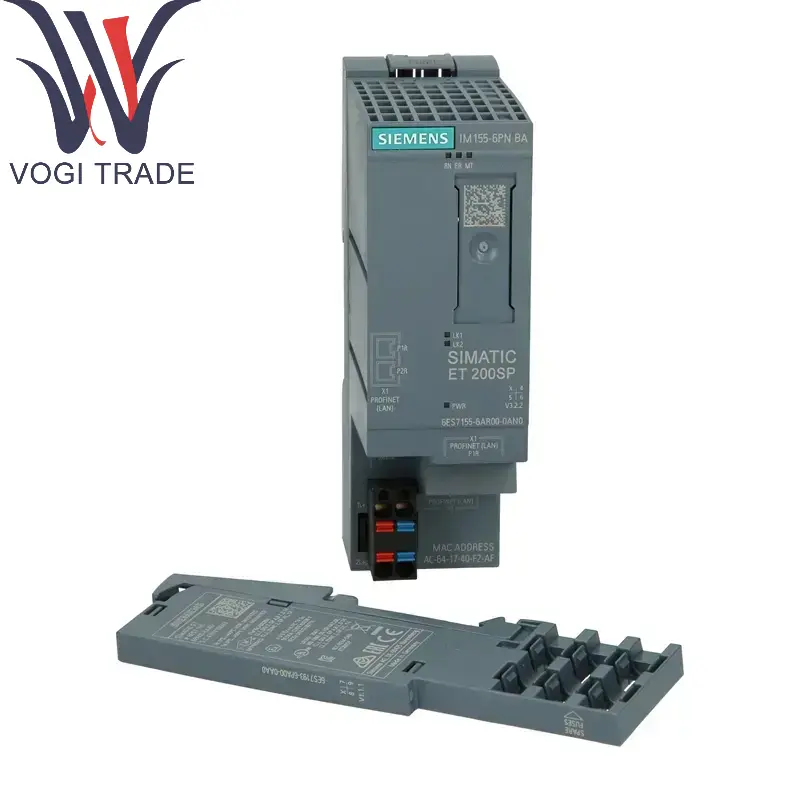

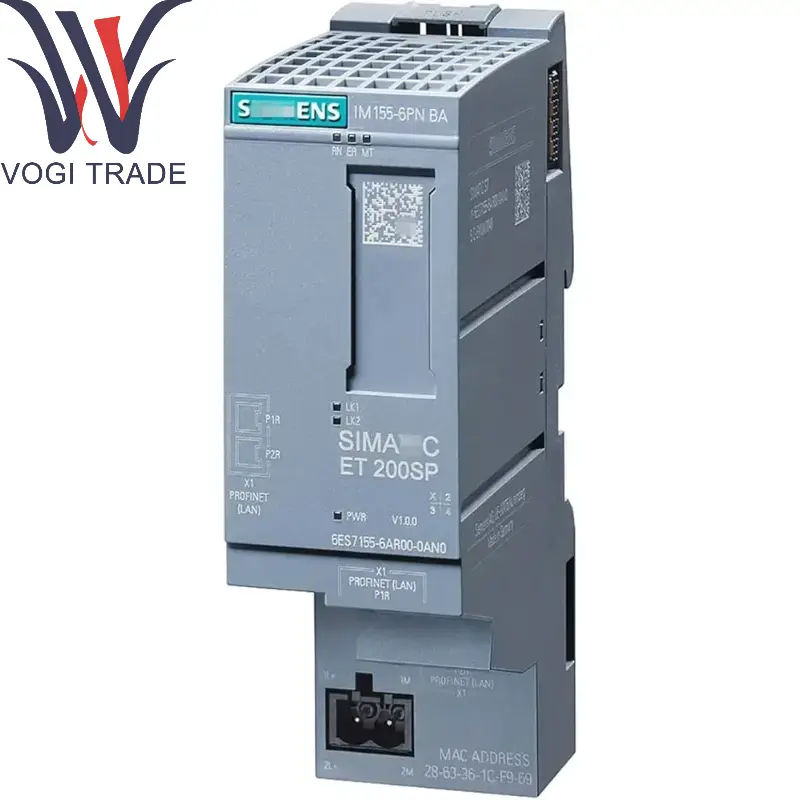

Brand: Siemens Description:Interface Module IM 155-6PN Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7155-6AR00-0AN0 SIMATIC ET 200SP, PROFINET interface module IM 155-6PN Basic, Max. 12 I/O modules, 2x integrated RJ45 sockets incl.
|
Manufacture |
Siemens |
|
Model Number |
6ES7155-6AR00-0AN0 |
|
Catalog |
SIMATIC ET 200SP |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
3.5cm×11.7cm×7.4cm |
|
Packing Dimension |
5.5cm×13.7cm×9.4cm |
|
Weight |
0.125kg |
Product Overview
Model: 6ES7155-6AR00-0AN0
Name: SIMATIC ET 200MP, IM 155-6 PN HF
Type: High-performance interface module (Interface Module) for PROFINET communication
Series: Part of the ET 200MP distributed I/O system, which belongs to the Siemens SIMATIC product line.
Product Description
Function:
As a PROFINET IO device, Siemens 6ES7155-6AR00-0AN0 communicates with the PLC via the PROFINET protocol.
Siemens 6ES7155-6AR00-0AN0 supports up to 30 I/O module expansions, providing flexible configuration capabilities.
Siemens 6ES7155-6AR00-0AN0 supports modular hot swapping (replace modules during operation without downtime).
Performance level:
HF version, supports higher performance communication and data transmission, such as isochronous synchronization, IRT, bandwidth optimization, etc.
Technical details
Communication interface:
2 PROFINET ports (RJ45), supporting Gigabit Ethernet (1000 Mbps).
Supports MRP to improve network reliability.
Protocol support:
PROFINET IO , PROFIdrive, PROFIsafe.
Data transmission rate:
Up to 1 Gbps, Siemens 6ES7155-6AR00-0AN0 supports real-time communication (RT/IRT).
Module expansion:
Supports up to 30 I/O modules.
Power requirements:
24V DC power supply, power consumption is about 2.5W.
Working environment:
Temperature range: -40°C to +60°C.
Protection level: IP20.
Product features
High performance:
Supports isochronous mode, suitable for motion control.
Low-latency communication, suitable for high-speed applications.
Flexibility:
Modular design, expandable with a variety of signal modules (SM), process modules (TM) or communication modules (CM).
Diagnostic function:
Fast fault diagnosis through LED indicators, TIA Portal or Web server.
Compatibility:
Perfectly integrated with TIA Portal, supports GSDML file import.
Application areas
Industrial automation:
Production line control, packaging machinery, printing equipment, etc.
Process control:
Distributed I/O systems in the chemical, oil and gas industries.
Motion control:
High-precision synchronization with servo drives
Infrastructure:
Energy management, remote monitoring of water treatment systems.
Safety-critical applications:
Supports PROFIsafe protocol, suitable for safety-related I/O control
Ancillary equipment
Recommended PLC: Siemens S7-1500, S7-1200.
I/O modules: digital modules, analog modules, etc.
Software tools: TIA Portal (STEP 7), PRONETA (network diagnostic tool).
