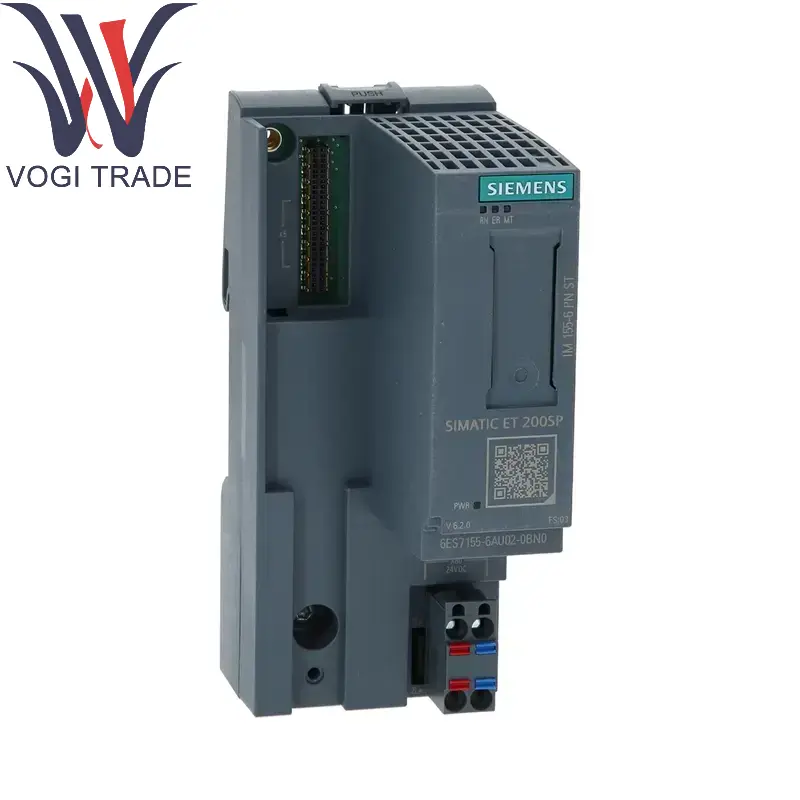

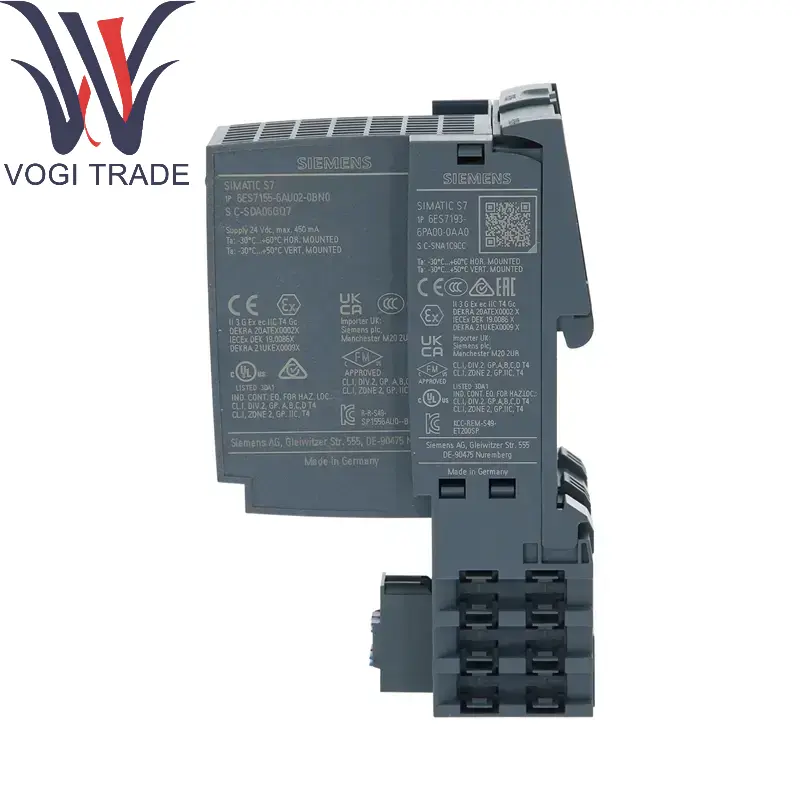

Brand: Siemens Description: Interface Module IM 155-6 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7155-6AU02-0BN0 SIMATIC ET 200SP, PROFINET interface module IM 155-6 PN ST, max. 32 I/O modules, and 16 ET 200AL modules, multi hot swap, optional PN strain relief, PN security class 1 incl.
|
Manufacture |
Siemens |
|
Model Number |
6ES7155-6AU02-0BN0 |
|
Catalog |
SIMATIC ET 200SP |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
5.0cm×11.7cm×7.4cm |
|
Packing Dimension |
7.0cm×13.7cm×9.4cm |
|
Weight |
0.120kg |
Product Overview
Model: 6ES7155-6AU02-0BN0
Name: SIMATIC ET 200MP, IM 155-6 PN Interface Module
Brand: Siemens
Series: ET 200MP (distributed I/O system)
Siemens 6ES7155-6AU02-0BN0 is a PROFINET interface module of the Siemens ET 200MP series, used to connect distributed I/O devices to the PROFINET industrial network, supporting high-performance data transmission and modular expansion.
Product Description
Function:
As a PROFINET IO device (slave),Siemens 6ES7155-6AU02-0BN0 communicate with PLC or other controllers (master).
Supports real-time communication (RT) and isochronous mode (IRT), suitable for high-precision synchronization applications.
Modular design, expandable up to 30 I/O modules.
Communication protocol:
PROFINET IO
Siemens 6ES7155-6AU02-0BN0 supports PROFIenergy (energy-saving function) and MRP.
Performance:
Data transmission rate: 100 Mbps
Siemens 6ES7155-6AU02-0BN0 supports up to 1440 bytes of input/output data.
Technical details
Parameters: Specifications
Power supply voltage: 24V DC
Power consumption: about 2.5W (no load)
PROFINET interface: 2 RJ45 ports
Protection level: IP20)
Operating temperature: -20°C to +60°C
Dimensions (W×H×D): 35 mm × 147 mm × 129 mm
Module expansion: up to 30 I/O modules
Application areas
Industrial automation:
Used in production lines, packaging machinery, robot control and other scenarios that require distributed I/O.
Process control:
Connect sensors and actuators to achieve data acquisition and equipment control.
Energy management:
Energy-saving control of equipment through PROFIenergy.
High-precision synchronization applications:
Such as motion control, printing machinery, etc.
Advantages and features
Flexibility:Siemens 6ES7155-6AU02-0BN0 supports a variety of I/O modules.
Diagnostic function: Rapid troubleshooting through LED indicators and TIA Portal software.
Compatibility: Seamless integration with the TIA Portal engineering platform to simplify programming and configuration.
