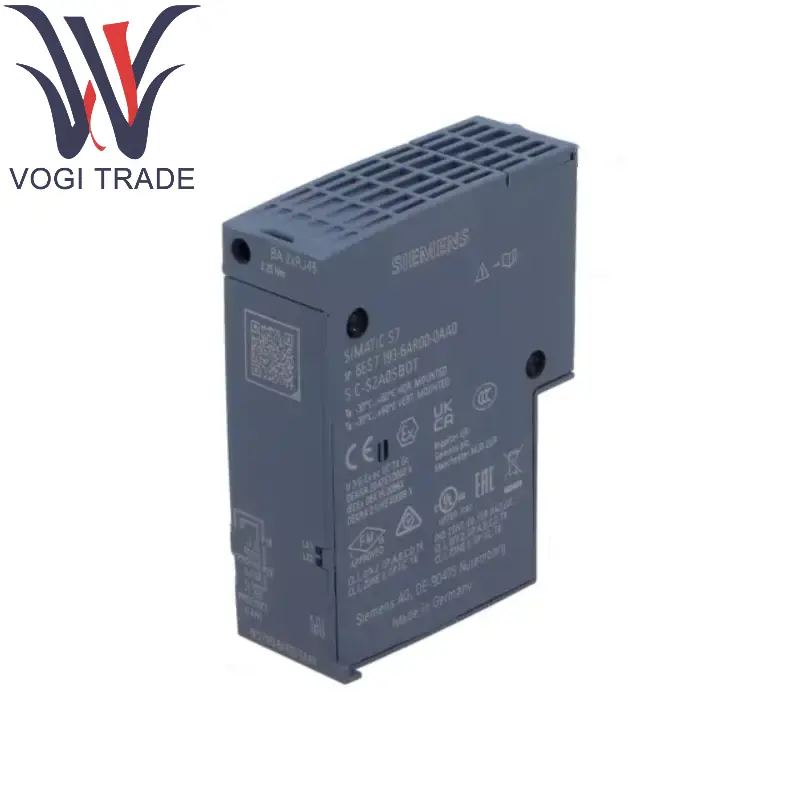

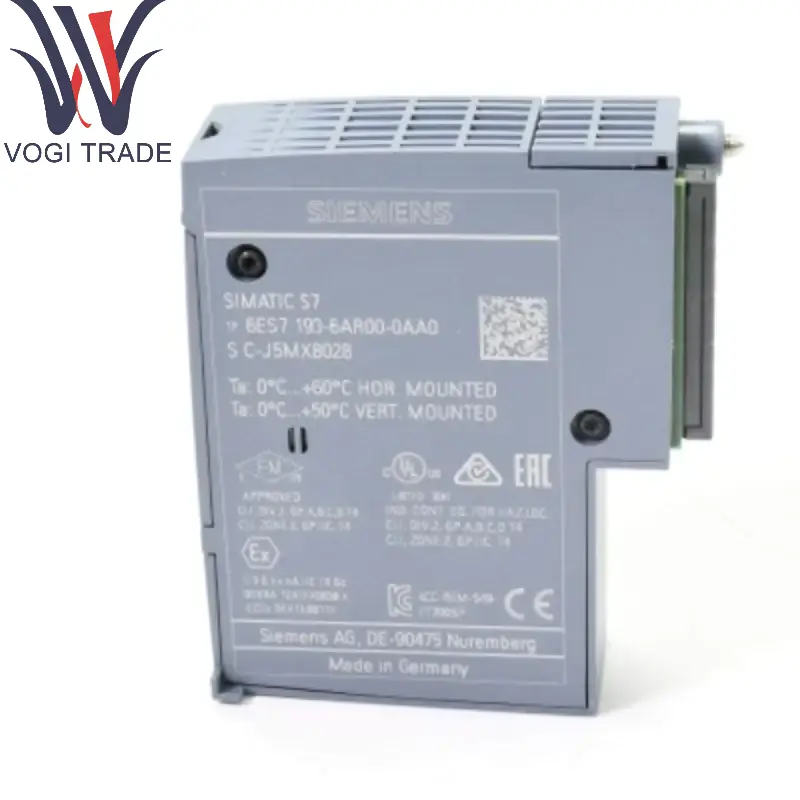

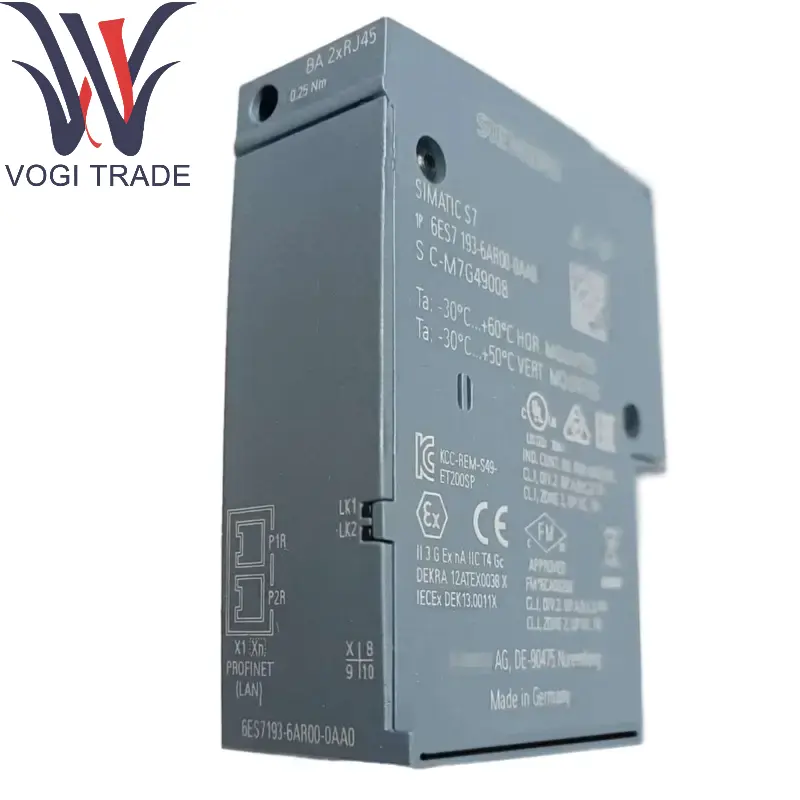

Brand: Siemens Description: Bus Adapters Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7193-6AR00-0AA0 SIMATIC ET 200SP, Bus Adapter BA 2xRJ45, 2 RJ45 sockets.
|
Manufacture |
Siemens |
|
Model Number |
6ES7193-6AR00-0AA0 |
|
Catalog |
SIMATIC ET 200SP |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
2.0cm×6.95cm×5.9cm |
|
Packing Dimension |
4.0cm×8.95cm×7.9cm |
|
Weight |
0.046kg |
Electrical characteristics
Rated voltage: 24 V DC
Maximum current: 15 A (total load, including module and sensor power supply)
Wiring: via Push-in terminals or screw terminals (depending on the specific model variant)
Polarity protection:Siemens 6ES7193-6AR00-0AA0 supports reverse polarity protection
Mechanical characteristics
Width: 15 mm (compact design)
Modularity:Siemens 6ES7193-6AR00-0AA0 supports hot swapping (replacing modules while the system is running)
Coding key: Automatic coding (A0 type) to ensure correct module installation and prevent wrong insertion
Communication support
Compatible bus: PROFIBUS DP or PROFINET (need to be used with corresponding interface modules, such as IM 155-6)
Environmental conditions
Operating temperature: -20°C to +60°C
Protection level: IP20 (suitable for installation in control cabinet)
Product details
Terminal type:
Supports wiring of 16 terminals (8 pairs), including:
Power supply (L+/M)
Sensor power supply (AUX)
Signal line (DI/DO/AI/AO)
LED indication: The base unit is usually not equipped with LEDs separately, and the status is displayed by the inserted I/O module.
Mounting method: DIN rail installation (35 mm standard rail).
Application area
Industrial automation
For ET 200SP distributed I/O system to expand the I/O capabilities of PLC (such as S7-1500/S7-1200).
Process control
Connect sensors (such as temperature, pressure) and actuators (such as valves, motors).
Machine manufacturing
Flexible configuration of modular equipment (such as packaging machines, assembly lines).
Automobile and logistics
High-speed signal processing scenarios such as sorting systems and conveyor belt control.
Features and Benefits
Modular design: Flexible expansion, saving space in the control cabinet.
Quick installation: Push-in terminals simplify wiring and reduce commissioning time.
High reliability: Automatic coding keys prevent incorrect module installation.
Compatibility:Siemens 6ES7193-6AR00-0AA0 supports Siemens TIA Portal (Totally Integrated Automation) ecosystem for easy programming and maintenance.
