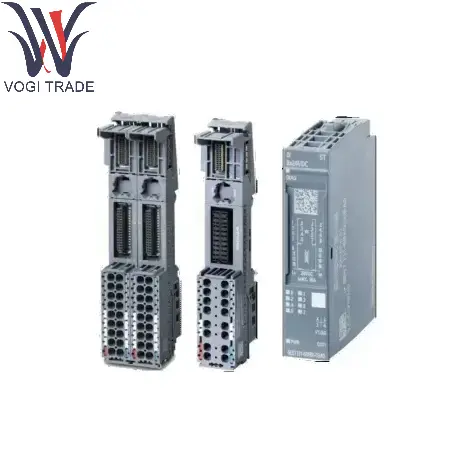

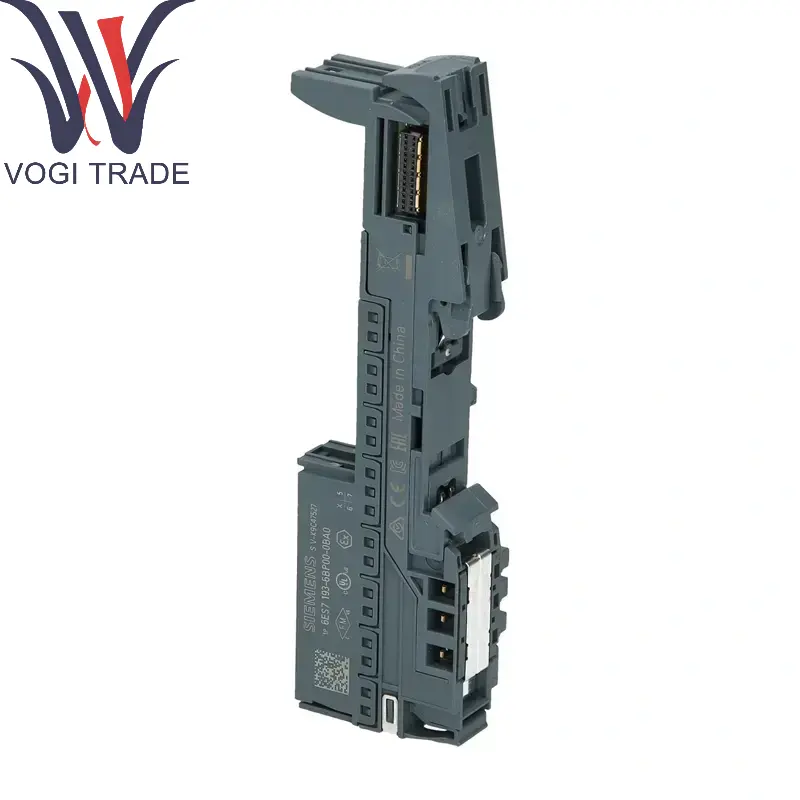

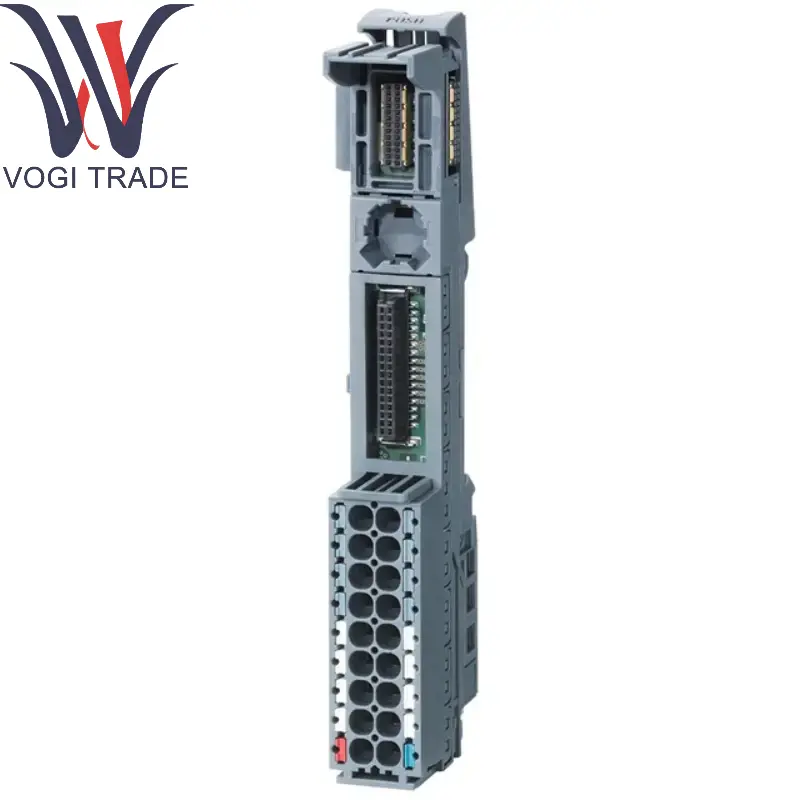

Siemens 6ES7193-6BP00-0BA0

Product Description

Function:

As the base unit of ET 200SP module, it is used to install and connect signal modules (such as digital/analog I/O modules).

Siemens 6ES7193-6BP00-0BA0 provides electrical connection and mechanical fixation, and supports fast plugging and unplugging of modules.

Integrated self-coding (color coding) system to prevent incorrect module insertion.

Electrical characteristics:

Rated voltage: 24V DC (powered by system power supply or PM module).

Maximum current supported: depends on the configured I/O module.

Mechanical characteristics:

Width: 15mm (compact design).

Material: high-strength plastic with dust protection.

Product details

Interface and connection:

Front plug-in terminals support fast wiring.

Built-in backplane bus for data transmission to the upper PLC (such as S7-1500/1200).

Compatibility:

Compatible with all I/O modules of the ET 200SP series (pay attention to voltage level matching).

Siemens 6ES7193-6BP00-0BA0 support PROFINET or PROFIBUS communication (need to use the corresponding interface module).

Special design:

Color identification (such as "A0" in BU15-P16+A0+2D indicates a black base for standard modules).

Scalability:Siemens 6ES7193-6BP00-0BA0 supports multi-module cascading, and the maximum number of expansions depends on the controller performance.

Application areas

Industrial automation:

Siemens 6ES7193-6BP00-0BA0 used for distributed I/O systems to connect field devices such as sensors and actuators.

Suitable for high-speed production lines such as automobile manufacturing, food packaging, and logistics sorting.

Process control:

Integrated into DCS system to collect analog signals such as temperature and pressure.

Infrastructure:

Building automation.

Flexible deployment scenarios:

Space-constrained occasions (because the module is small, it saves control cabinet space).

Systems that require frequent maintenance or expansion (support hot swapping).

Additional information

Certification and standards:

Complies with international industrial standards such as IEC 61131, UL, CE, etc.

Supporting equipment:

Need to be used with ET 200SP interface moduleand I/O module.

Document support:

Manuals are provided on Siemens official website
