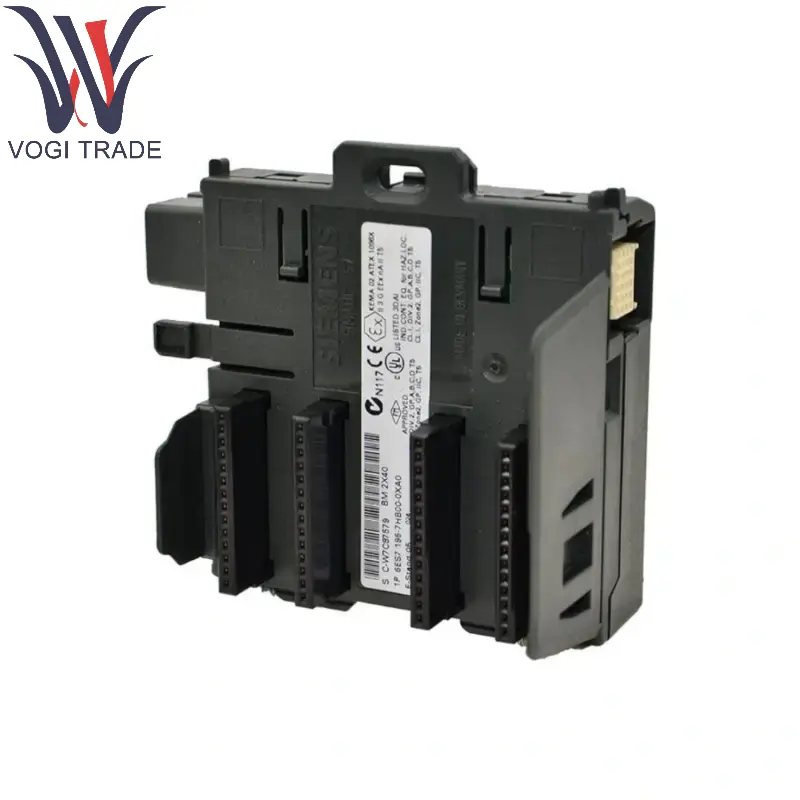

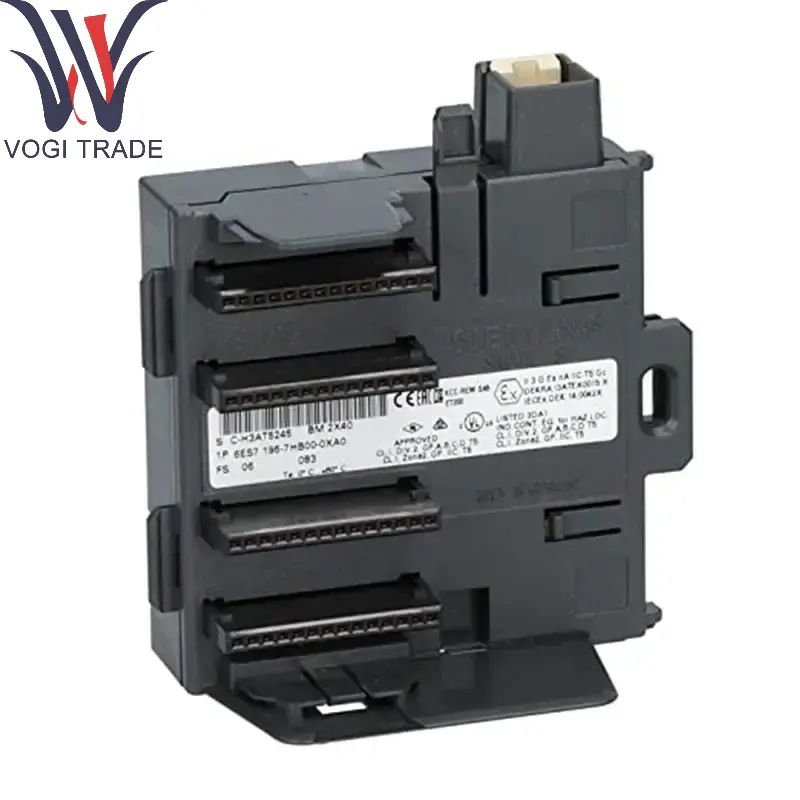

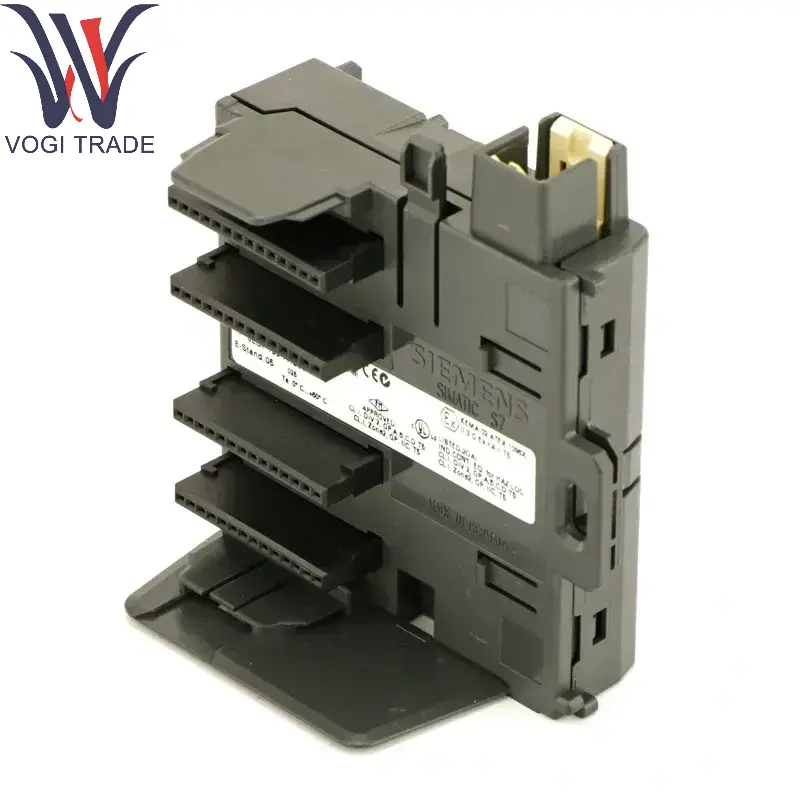

Siemens 6ES7195-7HB00-0XA0

Function:

Base unit for ET 200SP distributed I/O system, providing electrical and mechanical connection for I/O modules.

Provide module power supply (via backplane bus) and signal transmission channel.

Integrated self-encoder, can automatically identify module type, reducing commissioning time.

Electrical parameters:

Rated voltage: 24 V DC (powered by system power supply or PM module).

Maximum current: 2 A (per group of contacts).

Mechanical characteristics:

Width: 15 mm (compact design, space saving).

Protection level: IP20 (suitable for installation in control cabinet).

Product details

Wiring method:

Siemens 6ES7195-7HB00-0XA0 supports 16 channels (digital or analog, depending on the connected I/O module).

Maximum wire cross-section of screw terminals: 1.5 mm².

Compatibility:

Compatible with all ET 200SP I/O modules (such as DI, DQ, AI, AQ, etc.).

Need to be used with server modules (such as 6ES7193-6PA00-0AA0).

Special design:

Expandable AUX auxiliary terminals for external power supply or signal jumper.

Modular design, supports hot swapping (the base unit needs to be replaced when the power is off).

Application areas

Industrial automation:

As a PROFINET or PROFIBUS slave, connect to the remote I/O of PLC (such as S7-1200/S7-1500).

Typical scenarios:

Production line control (such as sensor/actuator signal acquisition).

Process automation (such as valve control, temperature monitoring).

Modular wiring of machinery and equipment (automobile manufacturing, packaging machinery, etc.).

Advantages:

Siemens 6ES7195-7HB00-0XA0 save cabinet space and simplify wiring.

Siemens 6ES7195-7HB00-0XA0 supports rapid maintenance and expansion.
