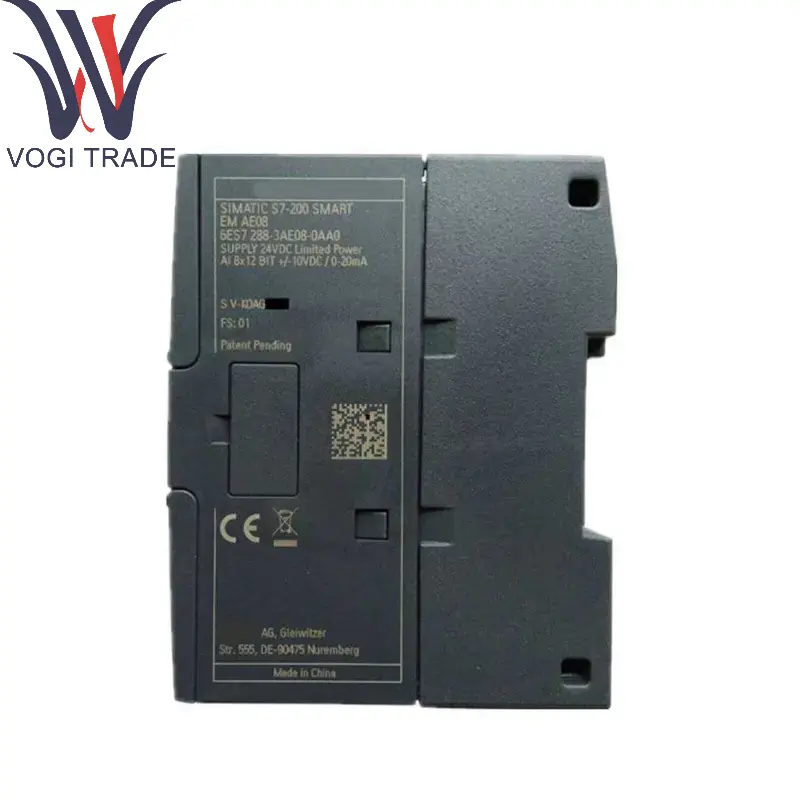

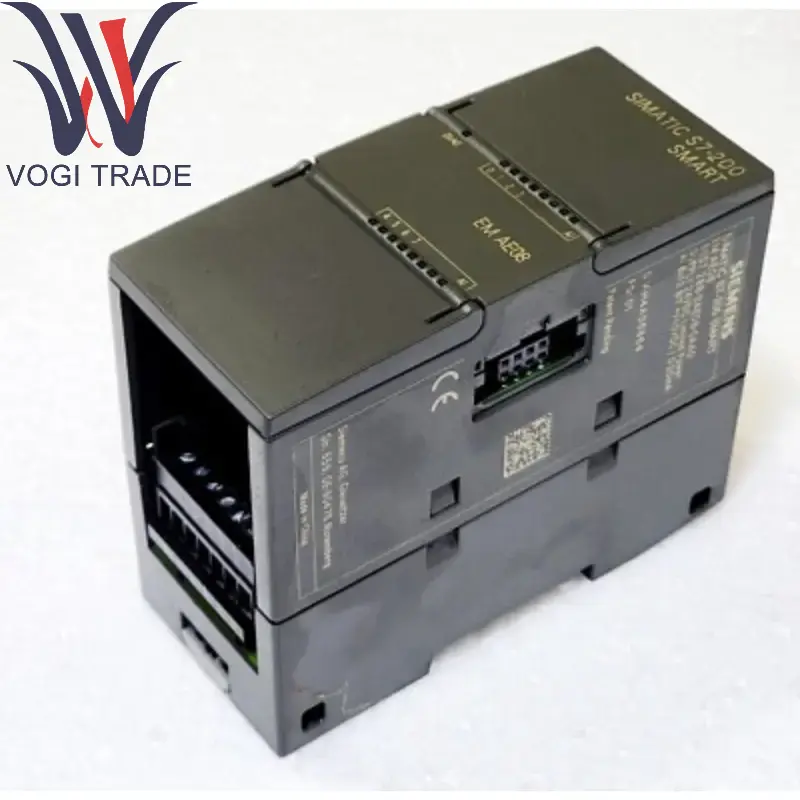

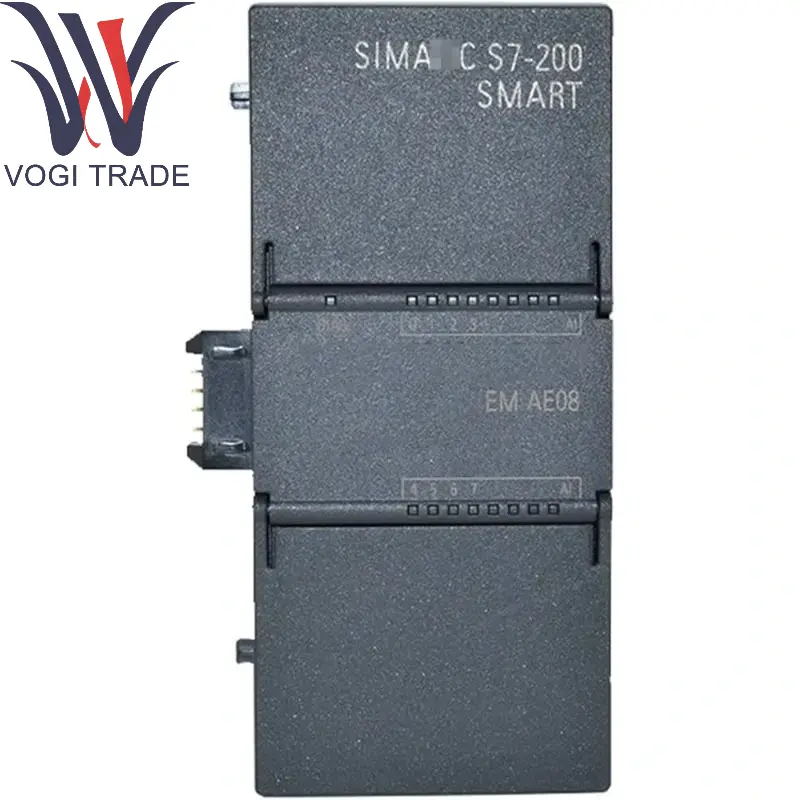

Brand: Siemens Description: Analog input SM AI08 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7288-3AE08-0AA0 SIMATIC S7-200 SMART, Analog input SM AI08, 8 AI, 0...10V, 0...5V, +/-5 V, +/-2.5 V or 0/4-20 mA; 11 bit + sign (12 bit ADC)
|
Manufacture |
Siemens |
|
Model Number |
6ES7288-3AE08-0AA0 |
|
Catalog |
SIMATIC S7-200 |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
4.5cm×10.0cm×8.1cm |
|
Packing Dimension |
6.5cm×12.0cm×10.1cm |
|
Weight |
0.186kg |
Product Overview
Model: 6ES7288-3AE08-0AA0
Product Name: SIMATIC ET 200SP AI 8xI 2-/4-wire HS
Series: Siemens ET 200SP Distributed I/O System
Function: Siemens 6ES7288-3AE08-0AA0 used to collect 8-channel analog signals (current or voltage), supporting high precision and high sampling rate.
Product Description
Module Type: Analog Input Module (AI)
Number of Channels: 8 channels, which can be independently configured as current or voltage input.
Signal Type:
Current: 0-20mA, 4-20mA (2-wire or 4-wire)
Voltage: ±10V, ±5V, 0-10V, etc.
Resolution: 16 bits (high precision)
Sampling Rate: High-speed sampling.
Electrical Isolation: No isolation between channels, but isolated from the backplane bus.
Diagnostic function:Siemens 6ES7288-3AE08-0AA0 supports disconnection detection, over-range alarm, etc.
Technical details
Power supply voltage: powered by ET 200SP base (24V DC).
Power consumption: typical value is about 1W.
Connection method:
Use ET 200SP dedicated terminal module.
Support 2-wire or 4-wire sensor connection.
Compatibility:
Need to be used with ET 200SP CPU or PROFINET/PROFIBUS master station.
The base unit needs to be matched.
Operating temperature: -20°C to +60°C.
Protection level: IP20 (indoor installation only).
Application field
Industrial automation: used for analog signal acquisition of PLC systems.
Process control:Siemens 6ES7288-3AE08-0AA0 connect temperature transmitters, pressure sensors, flow meters, etc.
Test and measurement: high-speed data acquisition.
Energy management: current/voltage monitoring.
Advantages and features
Modular design: supports hot plugging, easy to expand and maintain.
High-density channels: 8 channels are integrated in a compact module to save space.
High precision: 16-bit resolution, suitable for precision measurement.
PROFINET integration: Siemens 6ES7288-3AE08-0AA0 communicate with the host system through the ET 200SP interface module.
Notes
Configuration software: parameterization is required using TIA Portal (STEP 7).
Grounding and shielding: analog signals need to be properly shielded to reduce interference.
Calibration: calibration may be required after long-term use to ensure accuracy.
