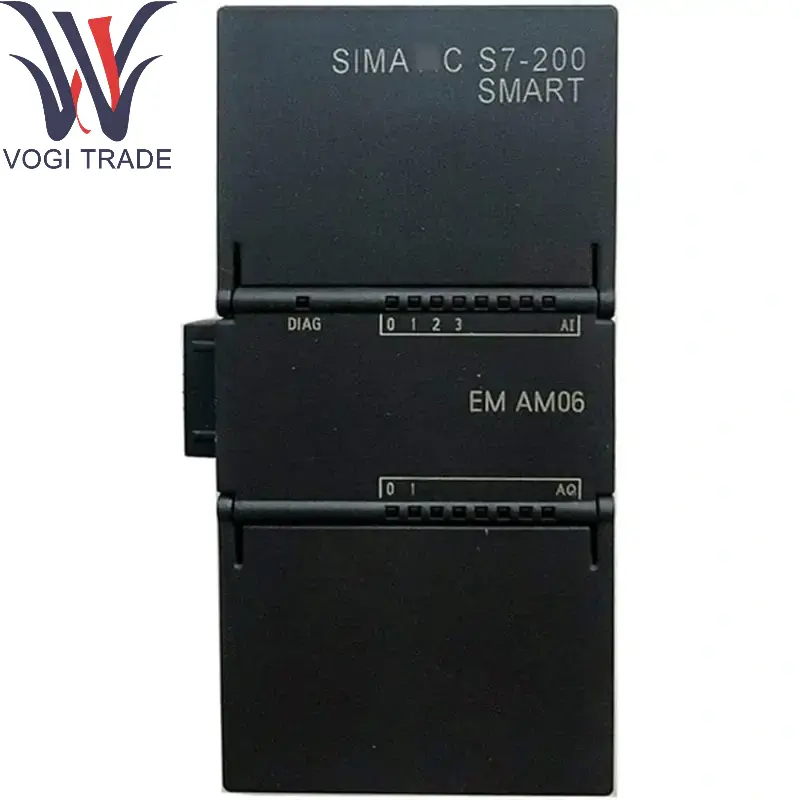

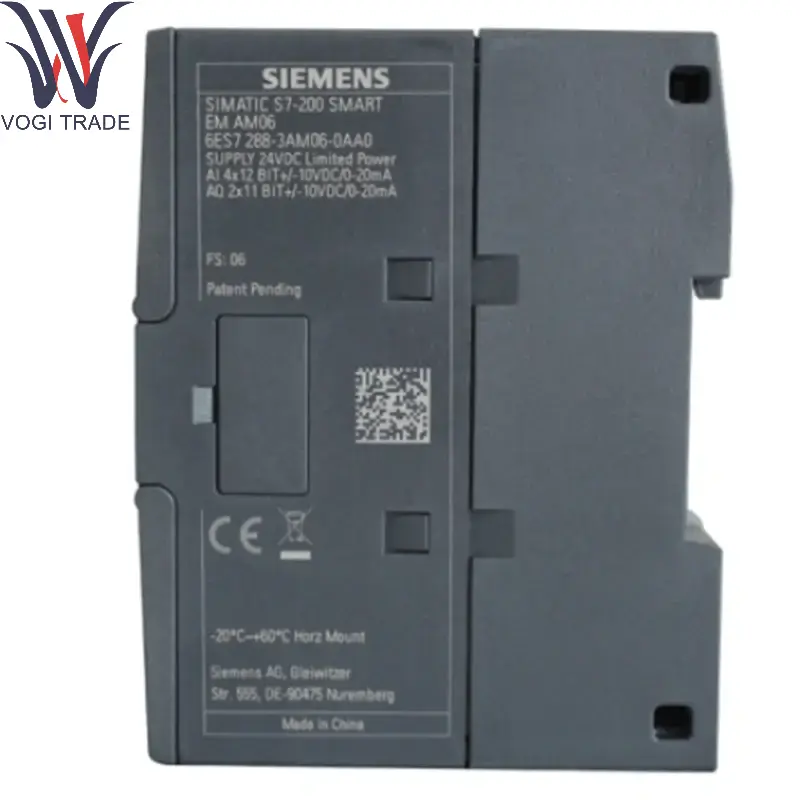

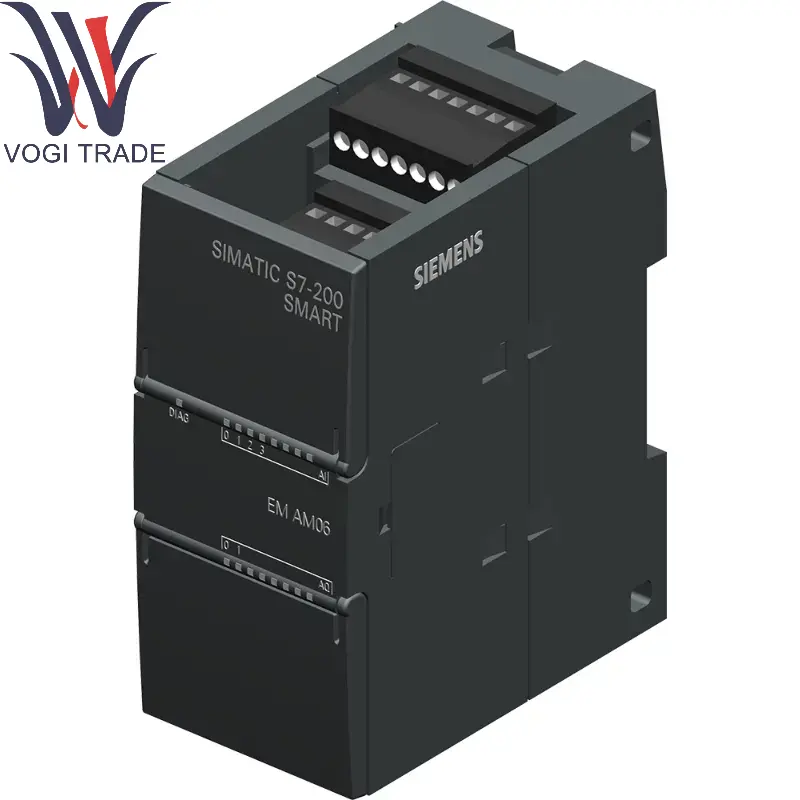

Siemens 6ES7288-3AM06-0AA0

Product Description

Function:

Siemens 6ES7288-3AM06-0AA0 Provides 8 high-precision analog input channels, which can be configured to measure voltage (U), current (I), resistance (RTD) or thermocouple (TC) signals.

Siemens 6ES7288-3AM06-0AA0 supports multiple sensor types (such as RTDs such as Pt100, Pt1000, Ni100, and J/K/N/T type thermocouples).

The module adopts a split design and needs to be used with a base unit (BaseUnit), such as BU15-P16+A0+2D, etc.

Signal processing:

Resolution: 16 bits (including sign bit), high-precision sampling.

Siemens 6ES7288-3AM06-0AA0 supports two-wire, three-wire or four-wire RTD connection to reduce wiring errors.

Built-in cold junction compensation (CJC) function, suitable for thermocouple measurement.

Product Details

Technical Parameters

Item Parameter Value/Description

Input Channel 8 channels, signal type can be configured independently

Measurement Range Voltage: ±10V, ±5V, ±2.5V, 0-10V, etc.;

Current: 0-20mA, 4-20mA, ±20mA;

RTD/TC: supports multiple models (such as Pt100, J/K type thermocouple)

Accuracy ±0.1% (voltage/current), RTD/TC depends on the type

Isolation No isolation between channels, but isolated from the backplane bus

Power consumption Typical value 1.5W (24V DC power supply)

Operating temperature -20°C to +60°C

Protection level IP20 (needs to be installed in the control cabinet)

Hardware Features

Module size: 30mm (width) × 117mm (height) × 75mm (depth).

Wiring method: Through Base Unit plug-in terminals, support one-handed wiring.

LED indicator: Each channel status display (green/red).

Compatibility

Controller support:Siemens 6ES7288-3AM06-0AA0 compatible with S7-1200, S7-1500, ET 200SP CPU, etc.

Software configuration: parameterization is required using TIA Portal (STEP 7 V13 or higher).

Application areas

Process automation: acquisition of analog signals such as temperature, pressure, flow, etc. (such as chemical, pharmaceutical).

Energy management: current/voltage monitoring (such as power distribution system, renewable energy).

HVAC system: ambient temperature and humidity monitoring (RTD/TC signal).

Manufacturing: production line sensor signal processing (such as weighing, position feedback).

Advantages and features

Modular design: flexible expansion and space saving.

High precision: suitable for harsh industrial environments.

Fast diagnosis: fault channel indication through TIA Portal or LED.

Hot swap: Siemens 6ES7288-3AM06-0AA0 support module replacement during operation (system configuration required).
