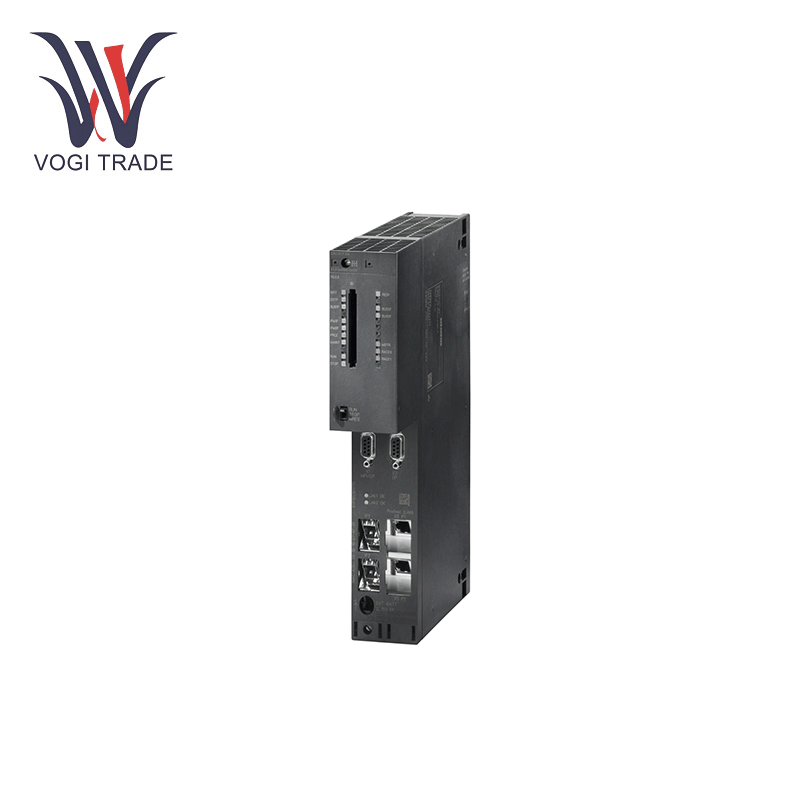

Siemens 6ES74143XM070AB0

Technical Parameters

Redundancy Support

Designed for high-availability systems with software-synchronized redundant operation, enabling seamless switchover during faults (<1s typical failover time).

Firmware Flexibility

Supports firmware updates via memory card without physical hardware replacement, compatible with multiple versions of STEP 7 (V5.x to TIA Portal V18 with limitations).

Extended Diagnostic Capabilities

Features integrated system diagnostics with granular error code generation (16-bit diagnostic buffer) and LED status indicators for module-specific fault isolation.

Process I/O Scalability

Manages up to 65,536 process I/O points through distributed PROFIBUS/Profibus-DP networks, with support for hybrid analog/digital signal configurations.

Real-Time Performance Metrics

Executes binary operations in 0.025μs and floating-point calculations in 0.095μs, optimized for motion control and closed-loop applications.

Application Environments

The Siemens 6ES74143XM070AB0 is engineered for demanding industrial automation scenarios.

Heavy-Duty Manufacturing: Ideal for automotive assembly lines, chemical processing plants, and steel production facilities due to its robust design and compliance with RoHS substance restrictions (effective since 2015).

High-Precision Control Systems: Suitable for environments requiring real-time data processing, such as semiconductor fabrication or pharmaceutical quality control, leveraging its 4 MB work memory (2 MB code, 2 MB data) for multitasking.

This PLC module thrives in temperature-regulated settings and supports seamless integration into both standalone and networked industrial setups, ensuring reliability in global markets with certifications like ECCN 9N9999 for export.

Key Features

The Siemens 6ES74143XM070AB0 stands out with advanced functionalities:

Multi-Protocol Connectivity: Features MPI/DP (12 Mbit/s), PROFIBUS DP, and a plug-in IFM slot for flexible communication with sensors, HMIs, and drives.

Enhanced Processing Power: A 414-3 CPU core enables rapid execution of complex algorithms, critical for motion control and batch processing applications.

Compact and Durable: With dimensions 23.3×30.2×6.6 cm and 1.031 kg weight, it optimizes space in control cabinets while meeting IP20 protection standards.

These features ensure the Siemens 6ES74143XM070AB0 delivers precision and adaptability in dynamic industrial ecosystems.

Compatible Devices

The module integrates seamlessly with Siemens automation ecosystems:

SIMATIC HMI Panels: Pair with TP/OP series for real-time monitoring and operator input.

I/O Expansion Modules: Connect to SM/FM series for scalable analog/digital signal handling, ideal for large-scale production lines.

PROFIBUS Network Components: Compatible with drives (e.g., SINAMICS) and remote I/O stations, enabling distributed control architectures.

For advanced simulations, the Siemens 6ES74143XM070AB0 interfaces with PLCSIM Advanced and MATLAB/Simulink models via OPC UA, streamlining virtual commissioning.

Practical Use Cases

PID Control in Process Automation: Deployed in temperature regulation systems for chemical reactors, utilizing its high-speed counters (HSC) and analog processing capabilities.

Material Handling Systems: Coordinates conveyor belts and robotic arms in logistics hubs, leveraging PROFIBUS DP for synchronized operations.

A case study demonstrates its role in a PID-controlled HVAC system, where the Siemens 6ES74143XM070AB0 reduced energy consumption by 18% through adaptive loop tuning.
