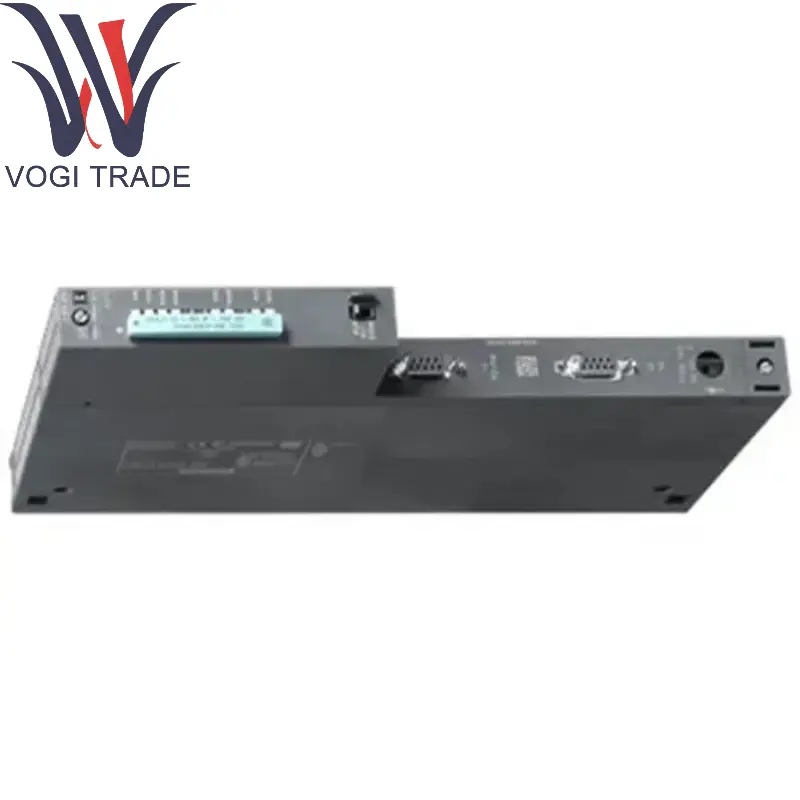

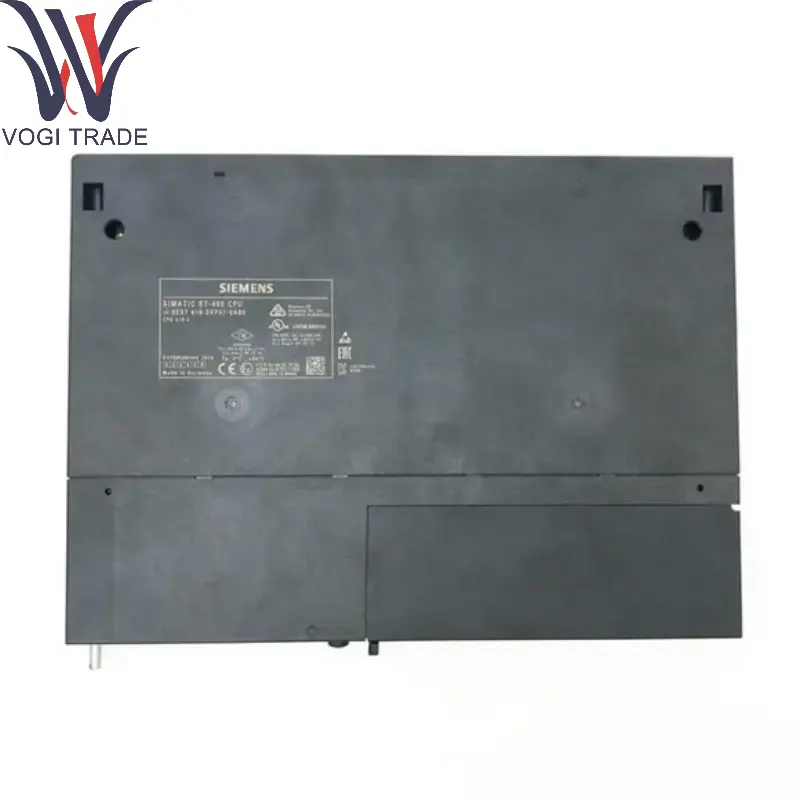

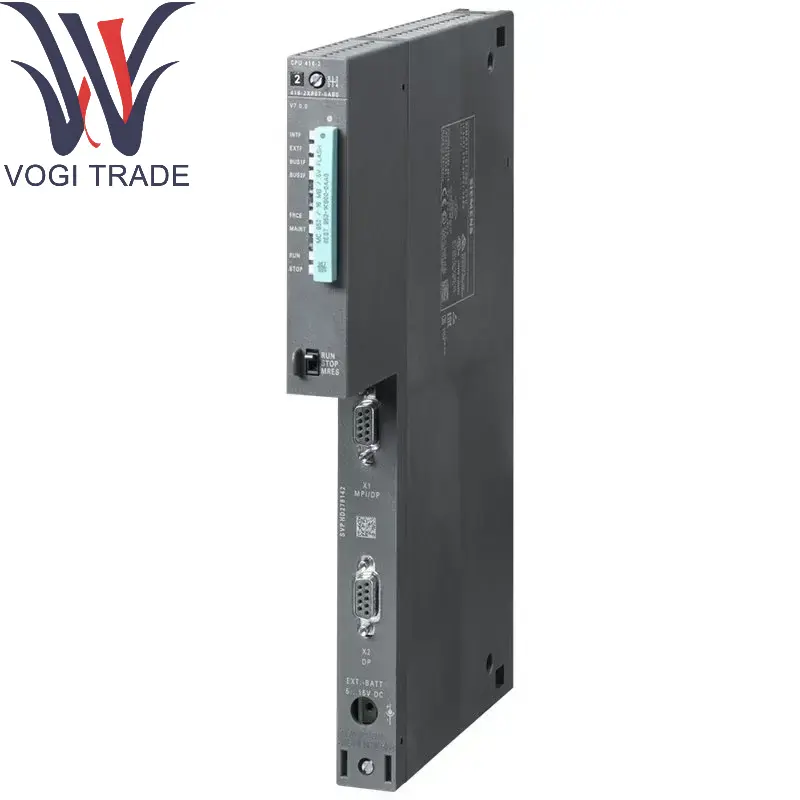

Siemens 6ES7416-2XP07-0AB0

Product Description

CPU Type:

416-2 central processing unit belonging to the S7-400 series, equipped with dual processors.

High-performance processing capability, suitable for industrial scenarios with strict real-time requirements.

Memory Configuration:

Working memory: 2.8 MB.

Load memory: Siemens 6ES7416-2XP07-0AB0 supports expansion memory card (maximum 64 MB).

Communication Capability:

Integrated 2 PROFIBUS-DP interfaces,Siemens 6ES7416-2XP07-0AB0 supports master/slave mode, can connect distributed I/O or other PROFIBUS devices.

Supports expansion of PROFINET, Ethernet and other protocols through communication modules.

Technical details

Processing speed:

Bit instruction execution time is about 0.025 µs, and complex mathematical operations are efficient.

I/O capacity:

Supports up to 131,072 digital I/Os and 8,192 analog I/Os.

Programming environment:

Compatible with STEP 7 (TIA Portal requires the corresponding version),Siemens 6ES7416-2XP07-0AB0 supports multiple programming languages.

Redundancy function:

Supports hardware redundancy configuration to improve system reliability.

Protection level:

Modular design, Siemens 6ES7416-2XP07-0AB0 needs to be installed in the control cabinet (protection level IP20).

Functional features

High reliability:

Built-in diagnostic function, supports fault self-detection and alarm recording.

Multitasking:

Siemens 6ES7416-2XP07-0AB0 supports multi-threaded program execution (OB block organization).

Real-time clock:

Built-in clock for timestamp recording and timing control.

Scalability:

Up to 21 expansion modules can be connected through rack expansion (UR1/UR2).

Application areas

Industrial automation:

Large-scale production line control in automobile manufacturing, chemical industry, metallurgy, etc.

Process control:

Continuous process industries such as oil, gas, and water treatment.

Energy management:

Power plant control system, distributed energy monitoring.

Infrastructure:

Airport logistics system, rail transit signal control.

Redundant system:

High availability scenarios (such as data center backup control).

Additional information

Certification standards: Comply with international industrial standards such as CE, UL, ATEX, etc.

Compatibility: Seamless integration with Siemens HMI (such as WinCC) and drive systems (such as SINAMICS).

Alternative model: The new model may be 6ES7416-3XR05-0AB0 (need to verify the latest product line).
