Siemens 6ES7417-4XT07-0AB0

Product Overview

Model: 6ES7417-4XT07-0AB0

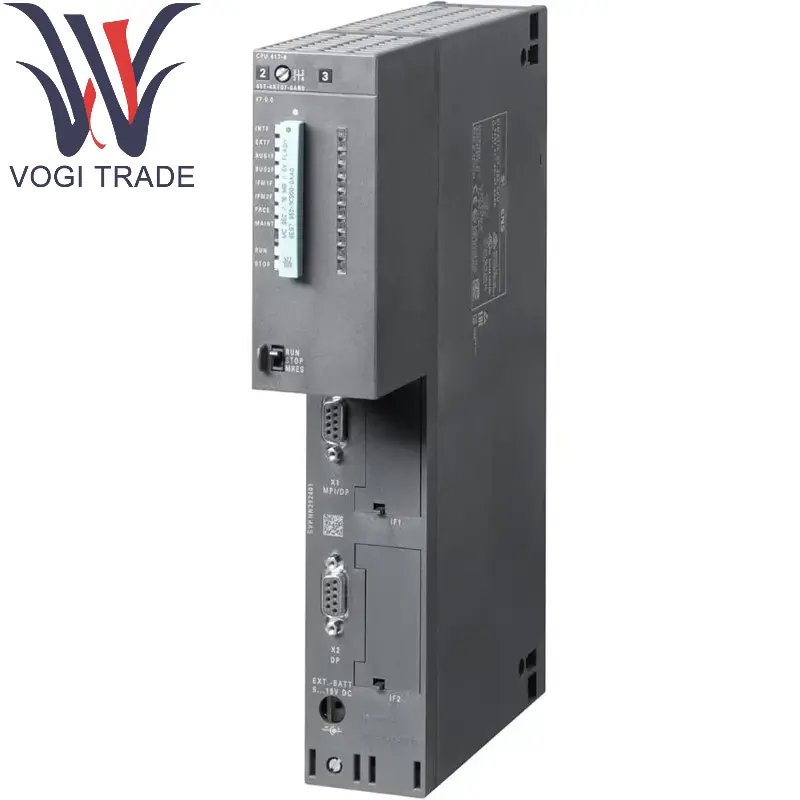

Product Name: SIMATIC S7-400 CPU 417-4, Central Processing Unit (CPU)

Series: Siemens S7-400 PLC (High-Performance Automation Controller)

Positioning: Suitable for medium and large complex control tasks, providing extremely high processing performance and expansion capabilities.

Product Description

Functional Features:

High-Performance Processor:Siemens 6ES7417-4XT07-0AB0 Suitable for high-speed data processing and complex algorithms

Memory Capacity:

Working Memory: Approximately 4 MB (for program and data storage).

Load Memory: Siemens 6ES7417-4XT07-0AB0 supports expansion memory card (maximum 64 MB).

Execution Speed: The execution time of each binary instruction is about 0.02 µs.

Communication Capacity: Integrates multiple communication interfaces (PROFIBUS DP, MPI, etc.) and supports multiple industrial protocols.

Modular Design: Expandable up to 21 expansion racks, supports digital/analog I/O, function modules, etc.

Technical details

Key parameters:

Power supply voltage: 24V DC

Power consumption: typical 10W (maximum 20W)

Communication interface: 1x MPI/DP, 1x DP (PROFIBUS)

Connectable I/O points: up to 131072 points

Programming language: STEP 7

Protection level: IP20

Expansion options:

Supports distributed I/O.

Can be connected to HMI panels, SCADA systems and host computer software.

Application areas

Typical industries:

Process industries: chemicals, petroleum, natural gas (continuous control, batch processing).

Manufacturing: automobile production lines, heavy machinery control.

Energy management: power plant monitoring, power distribution systems.

Infrastructure: water treatment, building automation.

Applicable scenarios:

Systems requiring high-speed data processing and complex logic control.

Projects with large-scale distributed I/O configurations.

Redundant systems with high reliability requirements (requires redundant modules).

Additional information

Programming tool: Siemens STEP 7 V5.x or TIA Portal is required.

Certification: Conforms to international standards such as CE, UL, ATEX, etc.

Alternative model: The new model may be the S7-1500 series, but the S7-400 is still widely used for upgrading existing systems.
