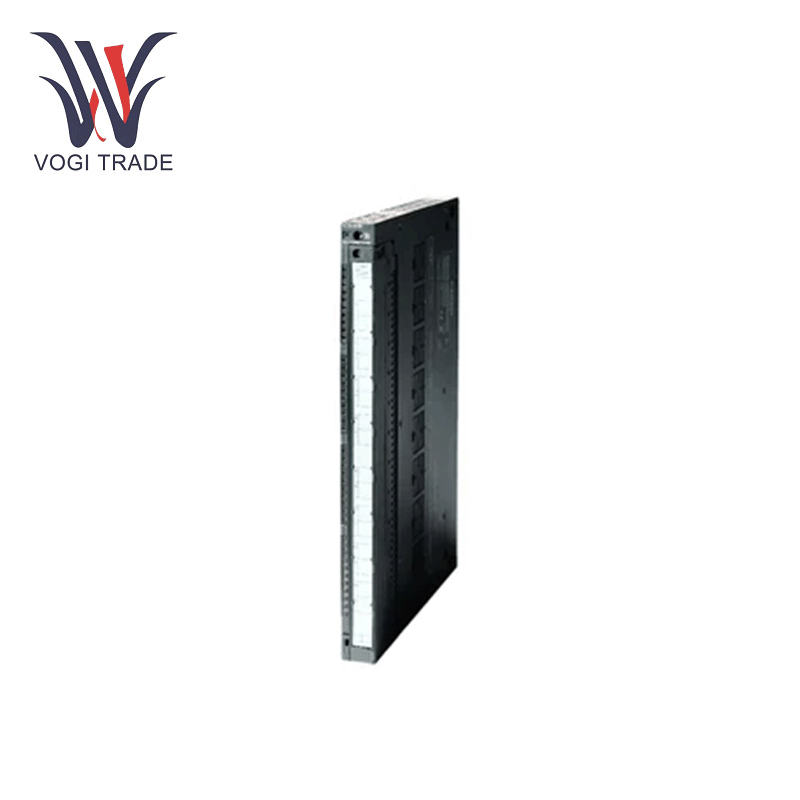

Siemens 6ES74317KF000AB0

Technical Parameters

Diagnostics & Redundancy: Provides detailed channel-specific diagnostics (e.g., wire break, over-range) and supports hot-swapping in redundant systems with SyncBox compatibility for fail-safe operations.

Protocol Integration: Embedded PROFIBUS-DPv2 functionality enables cyclic data exchange and acyclic parameter configuration, aligning with IEC 61158-2 standards for process automation.

Environmental Robustness: Certified for operation in Class I, Division 2 hazardous areas (ATEX, IECEx) and withstands 150 ms voltage surges up to 2.3 kV per EN 61000-4-5.

Mechanical Design: Utilizes a cliplock terminal mechanism with color-coded spring contacts, enabling tool-free wiring and reducing installation time by 40% compared to screw-type modules.

Power Efficiency: Features a low-power mode (<1.2 W per channel) with adaptive sampling rates, dynamically adjusting power consumption based on configured signal bandwidth (0.1 Hz to 10 kHz).

Key Features

The Siemens 6ES74317KF000AB0 provides sophisticated functionality specifically designed for industrial data collection.

High-Resolution Inputs: Provides 16-bit resolution on 8 analog channels to measure voltage (±10V), current (4–20mA), and thermocouple signals with high precision.

Diagnostic features: Alarm detection and real time diagnostics built into the module for module health monitoring helps in reducing downtime with proactive maintenance.

Universal Signal Processing: U(voltage), I(current),  thermocouple types, it makes clean measurement with various sensor configurations.

Single-Root Isolation Provides signal integrity and protects personnel by electrically isolating input circuits from the control system, ideal for process-critical applications.

Compatible Devices and Accessories

The Siemens 6ES74317KF000AB0 is compatible with Siemens and third-party automation products.

Integrate with S7-400 PLC: This module is a member of the SIMATIC S7-400 family of S7 programmable controllers that can directly connect to the central processing unit, with the entire automation process centralized in larger industrial applications.

Compatible with Distributed I/O -Compatible with I/O systems (ET 200SP) for decentralized installations, the perfect solution for space-consuming plants.

Profinet Communication: It can communicate via Profinet protocols in a real-time manner to guarantee synchronization with HMIs, SCADA systems as well as other networked devices.

Application Scenarios

The Siemens 6ES74317KF000AB0 is good when you need precise Anlog signal processing.

Process Automation — It can monitor temperature, pressure, and flow in chemical processing plants using its 16-bit resolution for regulatory reporting.

Energy Monitoring: Monitor current and voltage to the loads in power distribution system protecting against grid disturbances.

HVAC system: connects to thermocouples RTDs for climate controls in commercial building to achieve energy efficiency by accaurate data acquisition.

Quality audit: Collects sensor data in automobile assembly lines, detecting problems in real time to ensure product quality.
