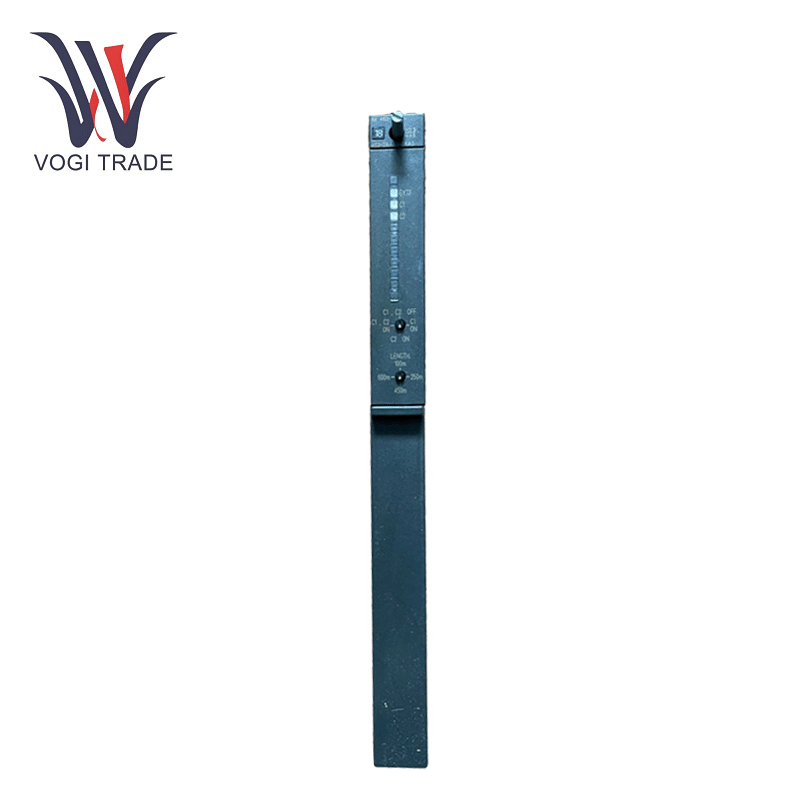

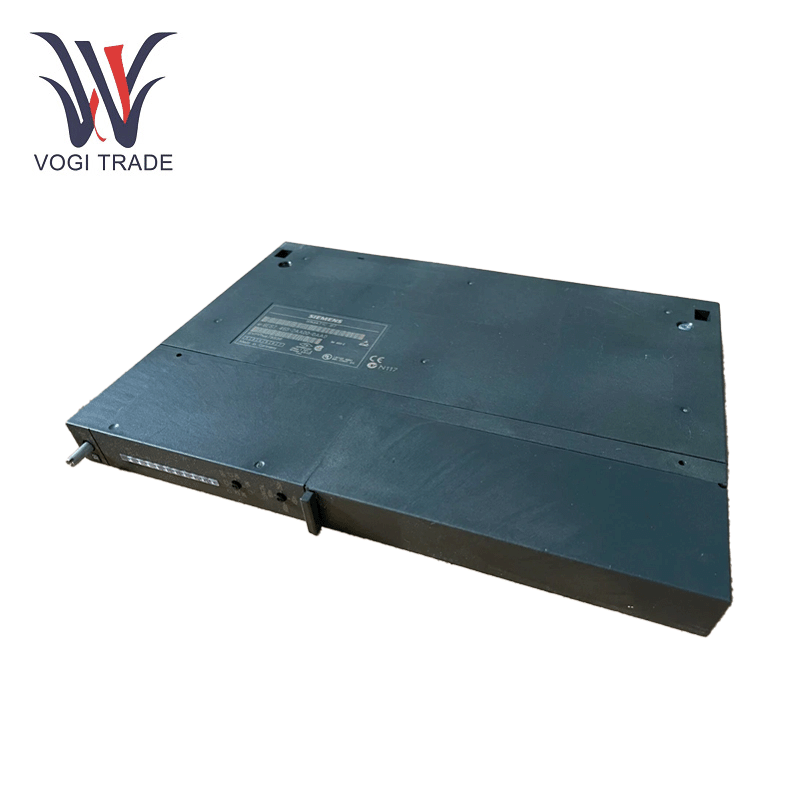

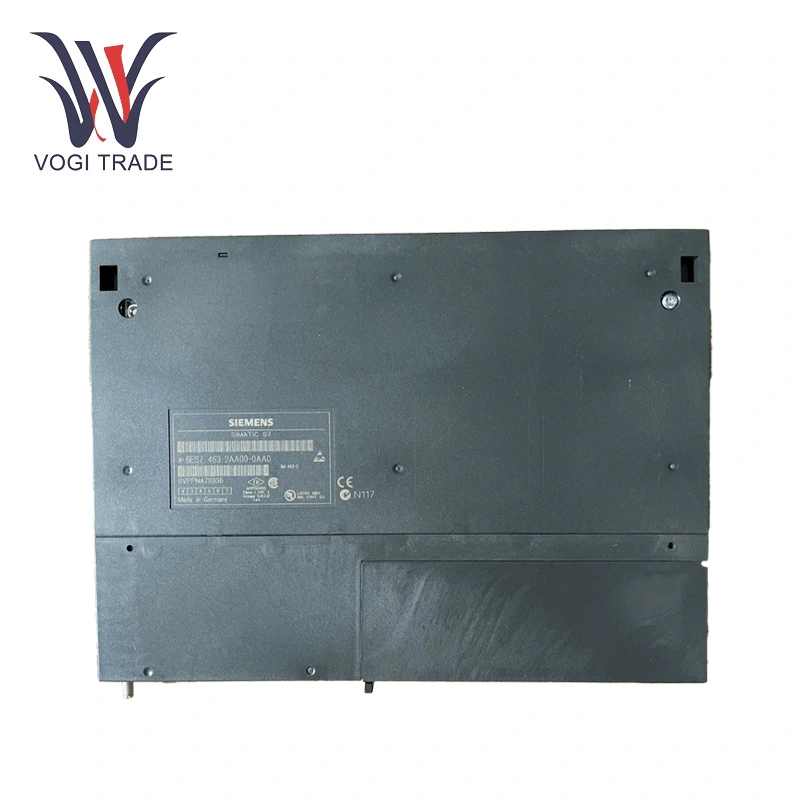

Brand: Siemens Description: IM 463-2 interface module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES74632AA000AA0: IM463-2 transmitter interface module for connection to S5 expansion modules via IM314, up to 600 m.
|
Manufacture |
Siemens |
|
Model Number |
6ES74632AA000AA0 |
|
Catalog |
ST74 |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
30.1*23.3*4cm |
|
Packing Dimension |
33*25*6cm |
|
Weight |
1.08kg |
Technical Parameters
Backplane Bus Compatibility
Designed exclusively for UR1/UR2/ER1/ER2-type S7-400 racks, requiring specific bus connector types (6ES7 195-1GFxx) for signal integrity assurance.
Redundant System Support
Enables redundant rack synchronization via fiber-optic cables (6XV1870-5AH10 recommended), featuring ≤1ms signal propagation delay between paired modules.
Firmware Management
Supports dual firmware banks with automatic fallback functionality, requiring STEP 7 V5.5 SP4 or higher for version-specific configuration management.
Diagnostic Buffer Architecture
Non-volatile 2048-entry diagnostic memory with time-stamping resolution of 1ms, compatible with Plant Diagnostic Manager but requiring dedicated SFB52 blocks for custom access.
Environmental Stress Testing
Validated for 100 thermal cycles (-25°C to +70°C) with full functionality maintained during 10g vibration exposure (IEC 60068-2-6 compliance).
Key Functional Features
The Siemens 6ES74632AA000AA0 delivers critical performance enhancements for automated systems.
High-Speed Data Transmission: Acts as a Send IM 463-2 interface, enabling seamless data exchange between SIMATIC S5 devices and S7-400 controllers via IM 314 modules, ensuring real-time process synchronization.
Scalability: Supports modular expansion, allowing integration of up to 600 meters of distributed I/O systems. This flexibility makes the Siemens 6ES74632AA000AA0 indispensable for retrofitting older production lines while maintaining operational continuity.
Associated Equipment
To maximize performance, pair the Siemens 6ES74632AA000AA0 with compatible Siemens hardware.
SIMATIC S7-400 Controllers: The module is natively compatible with S7-400 PLCs, providing centralized control for hybrid S5/S7 setups.
IM 314 Receivers: These interface modules on the S5 side ensure stable communication with the Siemens 6ES74632AA000AA0, maintaining signal integrity across long distances.
Practical Use Cases
The Siemens 6ES74632AA000AA0 excels in diverse industrial scenarios.
Automotive Assembly Lines: Used to integrate legacy S5-based robotic arms with S7-400 control systems, enabling automated welding and precision part handling without costly hardware replacements.
Chemical Processing Plants: Facilitates communication between S5 sensors monitoring reactor temperatures and modern S7-400 safety systems, ensuring compliance with real-time hazard protocols.
