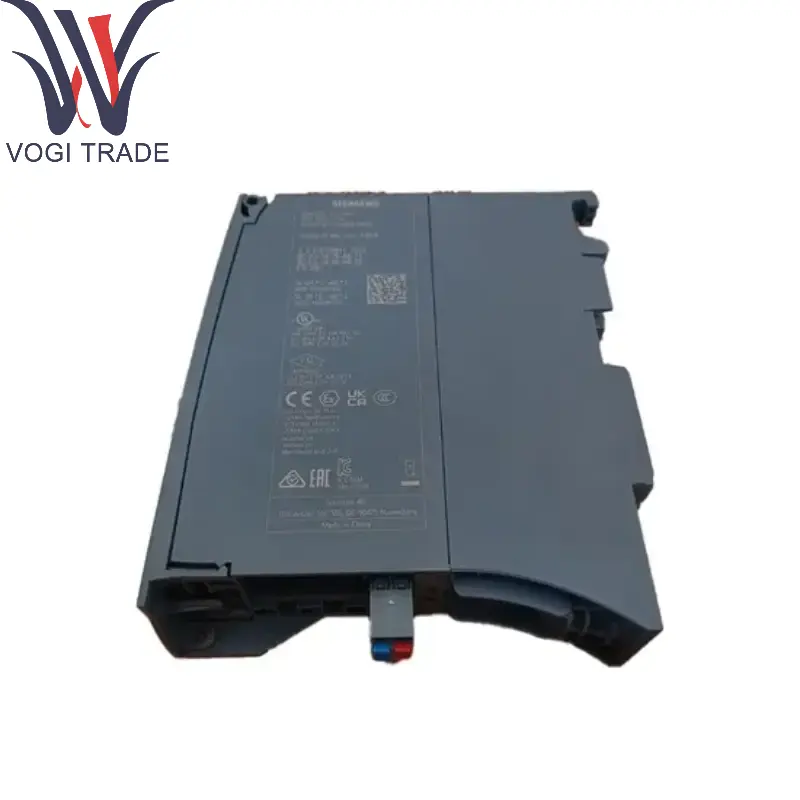

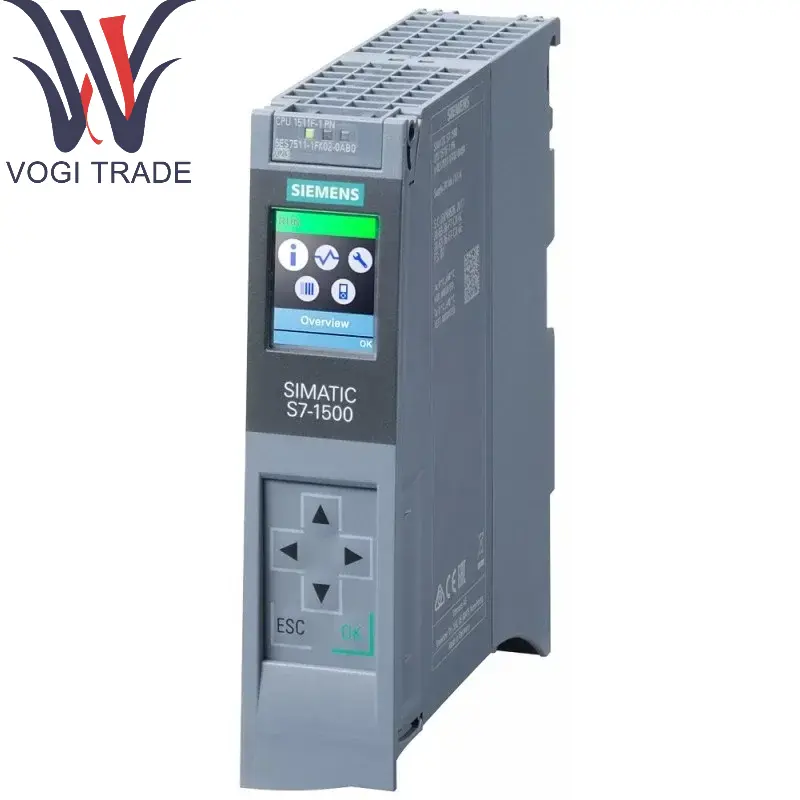

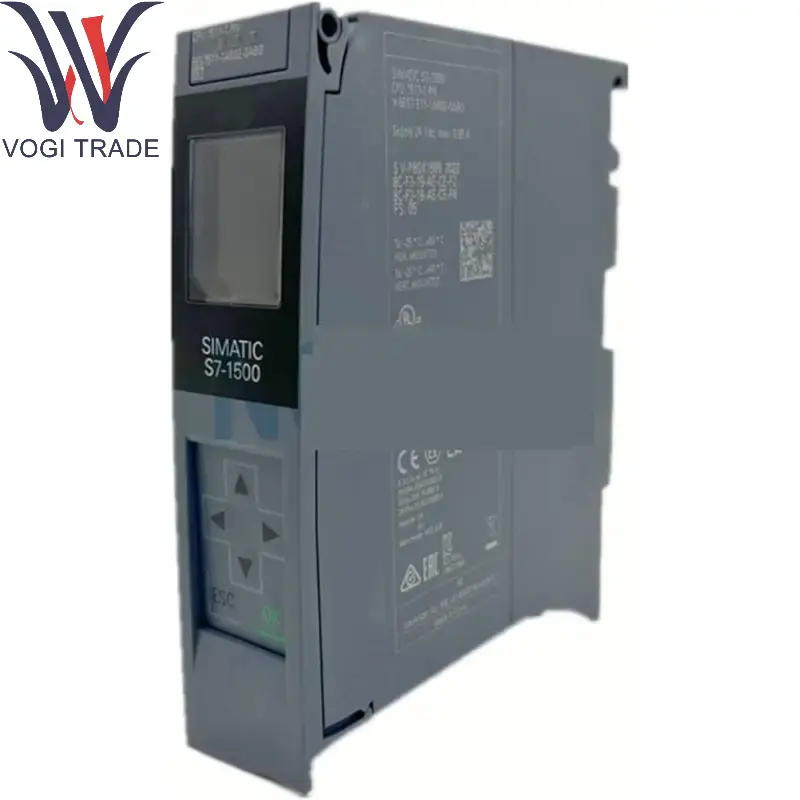

Brand: Siemens Description: CPU 1511F-1 PN Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7511-1FK02-0AB0 SIMATIC S7-1500F, CPU 1511F-1 PN, central processing unit with work memory 225 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 2-port switch, 60 ns bit performance, SIMATIC Memory Card required
|
Manufacture |
Siemens |
|
Model Number |
6ES7511-1FK02-0AB0 |
|
Catalog |
SIMATIC S7-1500F |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
3.5cm×14.7cm×12.9cm |
|
Packing Dimension |
5.5cm×16.7cm×14.9cm |
|
Weight |
0.405kg |
Product Introduction
Function Overview:
Suitable for automation tasks of medium complexity, providing powerful processing performance and rich communication functions.
Integrated PROFINET interface, supporting real-time communication and distributed I/O control.
Siemens 6ES7511-1FK02-0AB0 supports multiple programming languages, compatible with TIA Portal (Totally Integrated Automation) engineering platform.
Built-in security functions meet industrial security standards.
Key Features:
Processing speed: Execute bit operation instructions in about 30 ns, suitable for high-speed control scenarios.
Memory: Working memory (RAM) 225 KB, support for expansion memory card (maximum 32 GB).
Communication interface: 1 PROFINET RJ45 port (supports 2 switch ports), supports TCP/IP, OPC UA, PROFINET IO and other protocols.
Expansion capability:Siemens 6ES7511-1FK02-0AB0 supports up to 32 modules (digital/analog I/O, communication modules, etc.).
Product details
Hardware specifications
Power supply voltage: 24V DC (allowable range 19.2V–28.8V)
Power consumption: typical value 8W (no load)
Digital I/O processing capacity: Siemens 6ES7511-1FK02-0AB0 supports up to 16,000 digital I/O points (via expansion modules).
Analog I/O processing capacity: Siemens 6ES7511-1FK02-0AB0 supports up to 2,000 analog channels.
Real-time clock: built-in hardware clock, supports time synchronization (such as NTP).
Software functions
Programming environment: TIA Portal V13 or higher is required.
Diagnostic function: built-in LED status indication, Web server remote diagnosis, fault alarm record.
Data retention: data can be retained through a memory card or super capacitor after power failure.
Certifications and standards
Complies with UL, CE, CCC certifications, suitable for industrial environments (temperature range: -20°C to +60°C).
Application areas
Manufacturing:
Production line control.
Robot collaborative control.
Process industry:
Process automation in the chemical and pharmaceutical industries.
Water treatment and energy management.
Infrastructure:
Building automation (HVAC, lighting control).
Traffic control systems (such as tunnel monitoring).
Discrete automation:
Machine tools, textile machinery control.
Test benches and laboratory equipment.
Additional information
Alternative models:
Upgraded version optional CPU 1511-1 PN (6ES7511-1AK02-0AB0) or higher performance CPU 1513/1515.
Supporting accessories:
Memory card (6ES7954-8LBxx-0AA0), power module (such as 6EP1336-3BA00).
