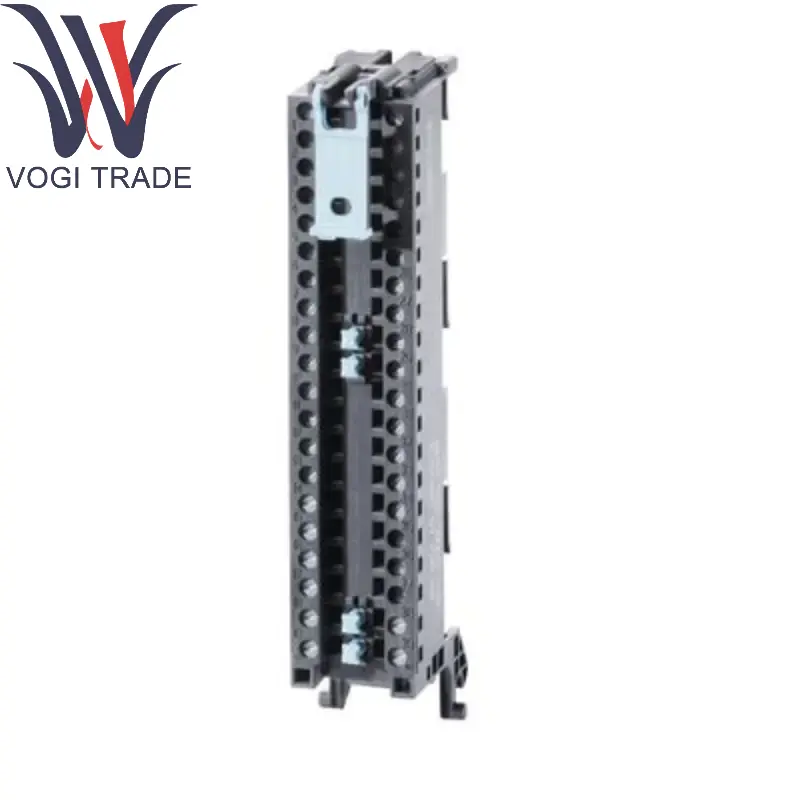

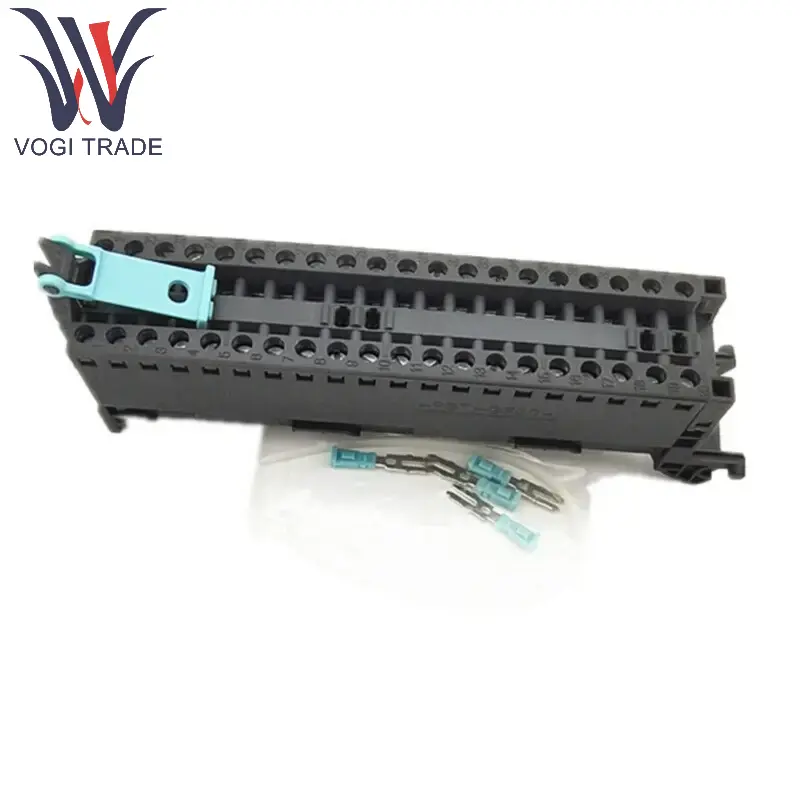

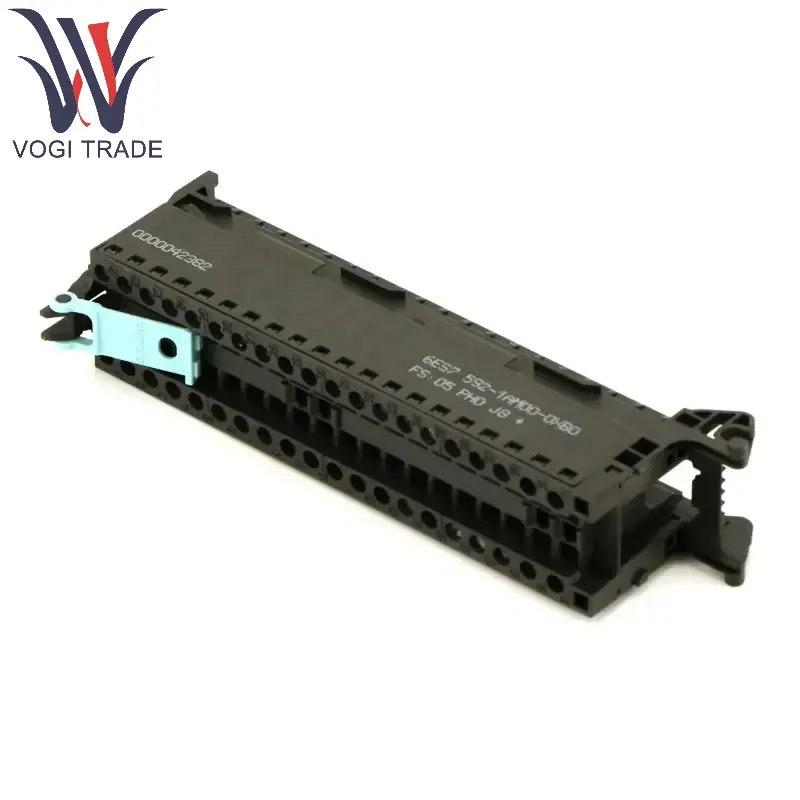

Brand: Siemens Description: Interface Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7592-1AM00-0XB0 SIMATIC S7-1500, Front connector Screw-type connection system, 40-pole for 35mm wide modules incl. 4 potential bridges, and cable ties
|
Manufacture |
Siemens |
|
Model Number |
6ES7592-1AM00-0XB0 |
|
Catalog |
SIMATIC ET 200SP |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
2.98cm×13.05cm×4.6cm |
|
Packing Dimension |
4.98cm×15.05cm×6.6cm |
|
Weight |
0.123kg |
Product Description
Function:
Siemens 6ES7592-1AM00-0XB0 used to install and connect signal modules (I/O modules) of the ET 200SP series.
Siemens 6ES7592-1AM00-0XB0 provides an electrical interface to connect the signal module to the backplane bus and supports power supply and data transmission of the module.
Integrated self-coding key (mechanical coding) to prevent incorrect module insertion.
Compatibility:
Compatible with various I/O modules (digital/analog) of ET 200SP.
Siemens 6ES7592-1AM00-0XB0 used with Siemens S7-1500, S7-1200 PLC or distributed I/O system.
Product details
Electrical parameters:
Rated voltage: 24 V DC (powered by system power supply).
Power consumption: Passive components, self-power consumption can be ignored.
Mechanical characteristics:
Width: 15 mm (standard single module width).
Mounting method: DIN rail mounting.
Wiring method: Quick wiring through front connector (need to be ordered separately).
Environmental conditions:
Operating temperature: -20°C to +60°C.
Protection level: IP20 (suitable for installation in control cabinet).
Application areas
Industrial automation:
Siemens 6ES7592-1AM00-0XB0 used in distributed I/O systems to expand the input/output points of PLC.
Commonly used in production lines such as automobile manufacturing, food processing, and packaging machinery.
Process control:
Connect sensors and actuators to realize signal acquisition and control.
Energy management:
Integrate signal modules in power distribution or energy monitoring systems.
Supporting components
Required accessories:
Signal module (such as digital input 6ES7131-6BF00-0BA0).
Front connector (such as 6ES7193-6BP00-0BA0).
System integration:
Siemens 6ES7592-1AM00-0XB0 need to be used with ET 200SP interface module (such as 6ES7155-6AU00-0BN0) or PLC master station.
