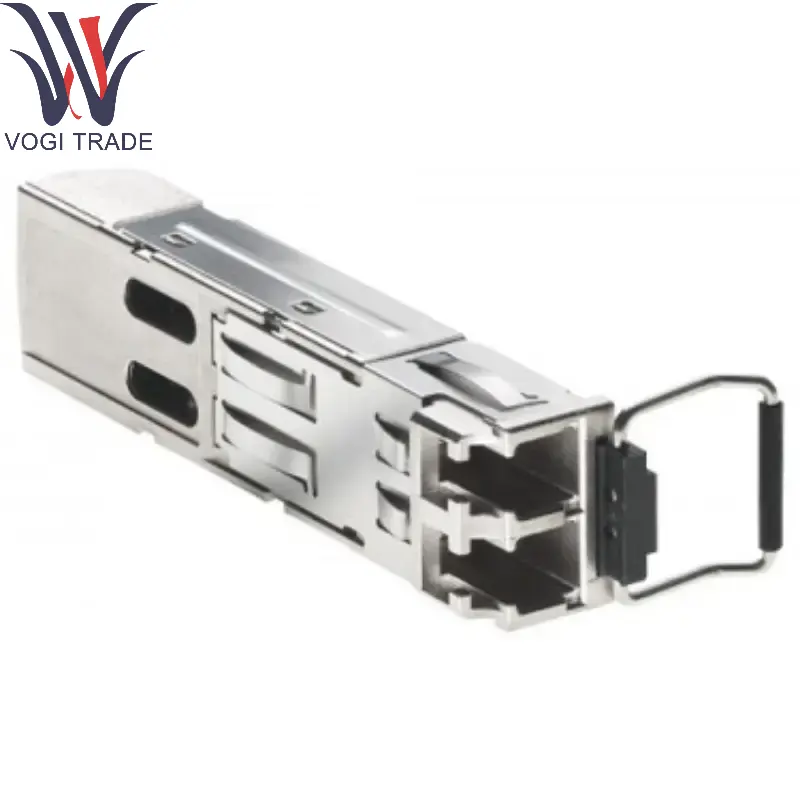

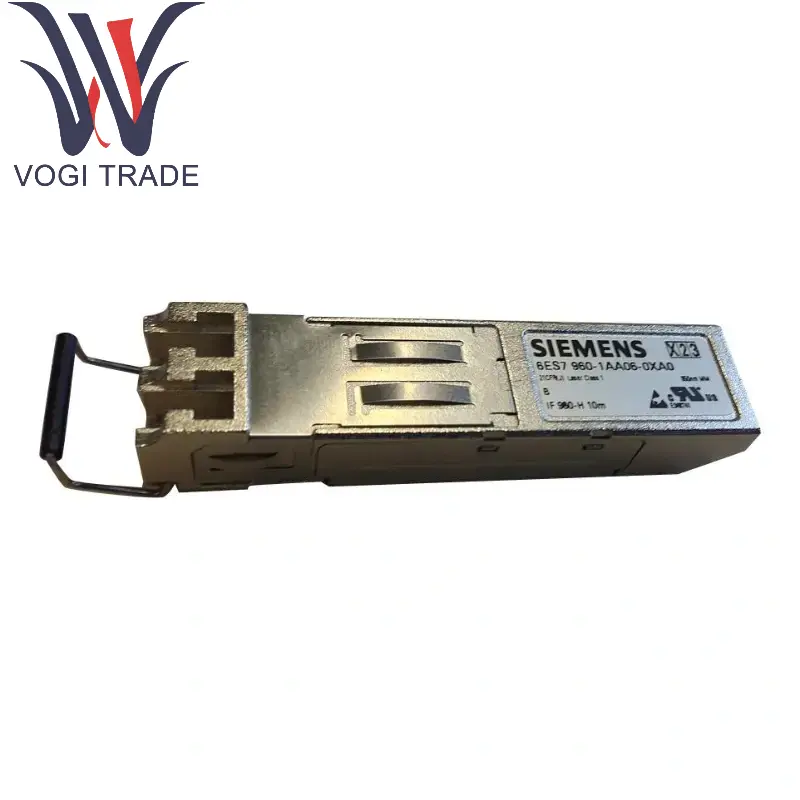

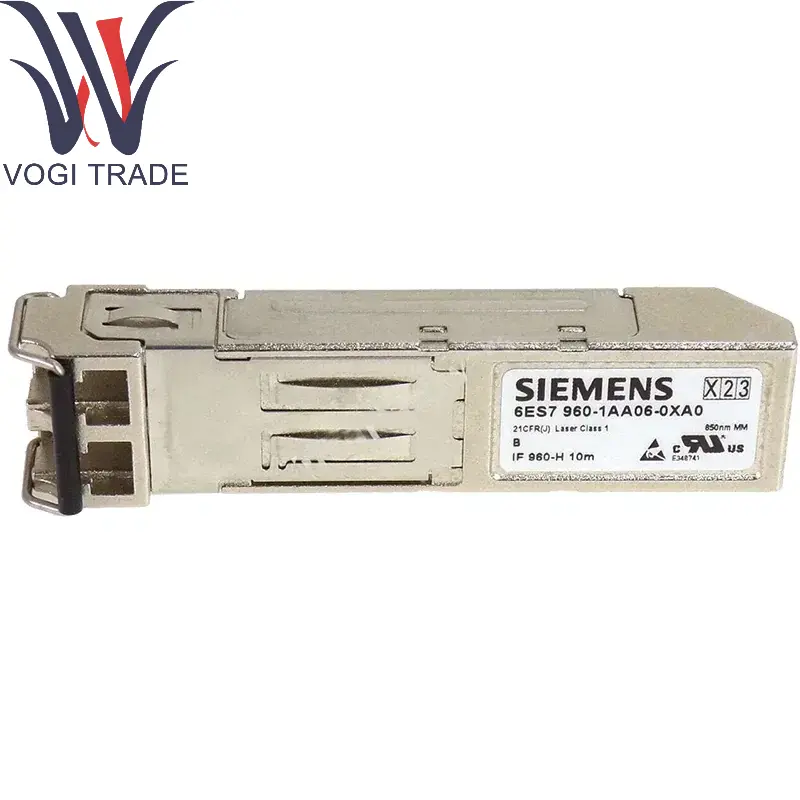

Brand: Siemens Description: Synchronization module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7960-1AA06-0XA0 SIMATIC S7-400H, Synchronization module V6 for patch cable to 10 m
|
Manufacture |
Siemens |
|
Model Number |
6ES7960-1AA06-0XA0 |
|
Catalog |
SIMATIC S7-400H |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
1.3cm×1.4cm×5.8cm |
|
Packing Dimension |
3.3cm×3.4cm×7.8cm |
|
Weight |
0.014kg |
Product Overview
Model: 6ES7960-1AA06-0XA0
Name: SIMATIC ET 200SP Interface Module (BaseUnit BU Type A0)
Brand: Siemens
Series: ET 200SP distributed I/O system
Role: BaseUnit, used to connect the I/O modules and power/communication interfaces of ET 200SP.
Product Description
Function:
As the mechanical and electrical connection base of the ET 200SP system, it provides the basis for modular installation.
Siemens 6ES7960-1AA06-0XA0 supports the insertion of signal modules (SM), communication modules (CM) or load current modules.
Provides automatic coding key (Color Coding) function to prevent incorrect module insertion.
Type: BU Type A0 (standard type), does not integrate power distribution function, and must be used with an external power supply module.
Product details
Technical parameters
Rated voltage: 24 V DC (powered by the upper power module)
Width: 15 mm (width of a single BaseUnit)
Maximum current load:Siemens 6ES7960-1AA06-0XA0 depends on the connected I/O module, please refer to the specific module specifications.
Wiring method:Siemens 6ES7960-1AA06-0XA0 connected via screw terminals or FastConnect plugs.
Operating temperature: -20°C to +60°C
Protection degree: IP20 (only for installation in the control cabinet)
Mechanical characteristics
Color identification: gray (A0 type)
Mounting method: DIN rail installation (standard 35 mm rail)
Modular expansion:Siemens 6ES7960-1AA06-0XA0 supports multiple BaseUnits to be installed side by side to form a flexible I/O station.
Compatibility
Supported modules: All signal modules, communication modules and function modules of the ET 200SP series.
System integration:Siemens 6ES7960-1AA06-0XA0 compatible with PROFINET, PROFIBUS and other communication protocols (need to be used with corresponding interface modules).
Application areas
Industrial automation: Distributed I/O expansion for PLC systems, such as the Siemens S7-1500/1200 series.
Process control: Connect sensors and actuators to achieve data acquisition and equipment control.
Machine manufacturing: Modular design is suitable for compact equipment, such as packaging machines and assembly lines.
Energy management: Integrate signal acquisition modules in power distribution systems.
