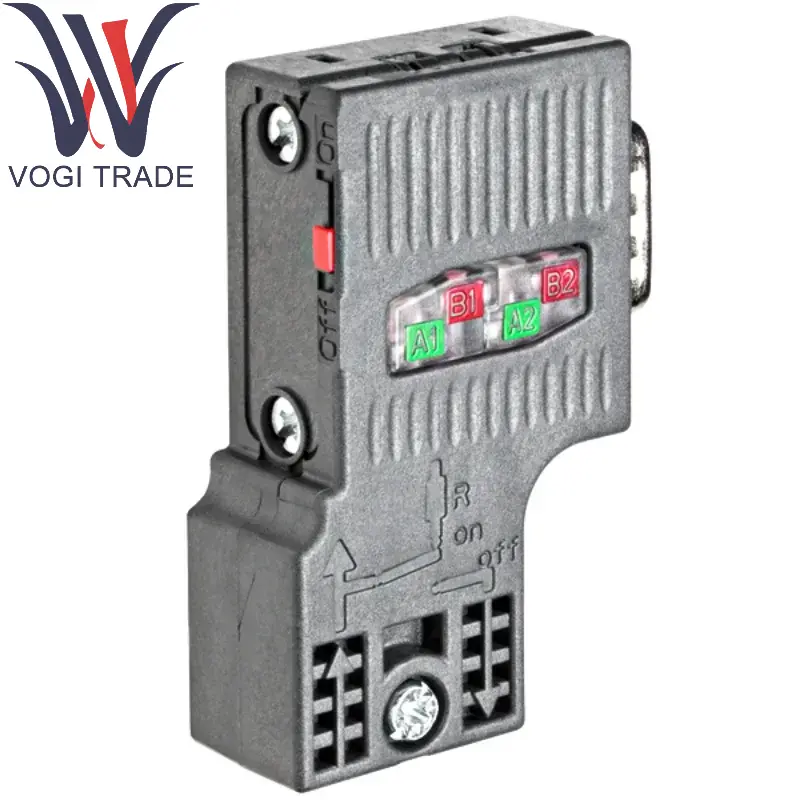

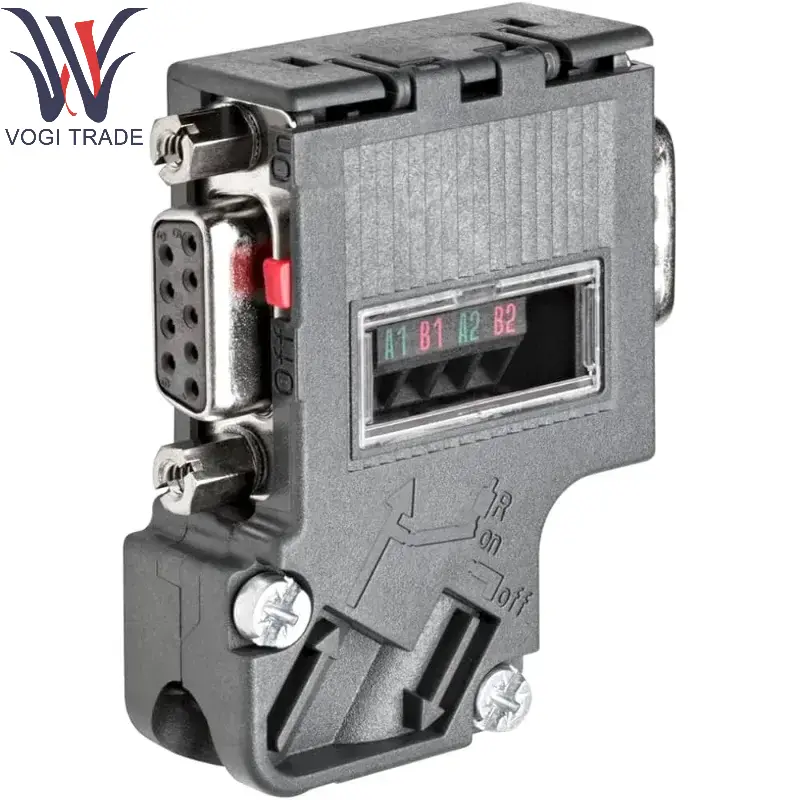

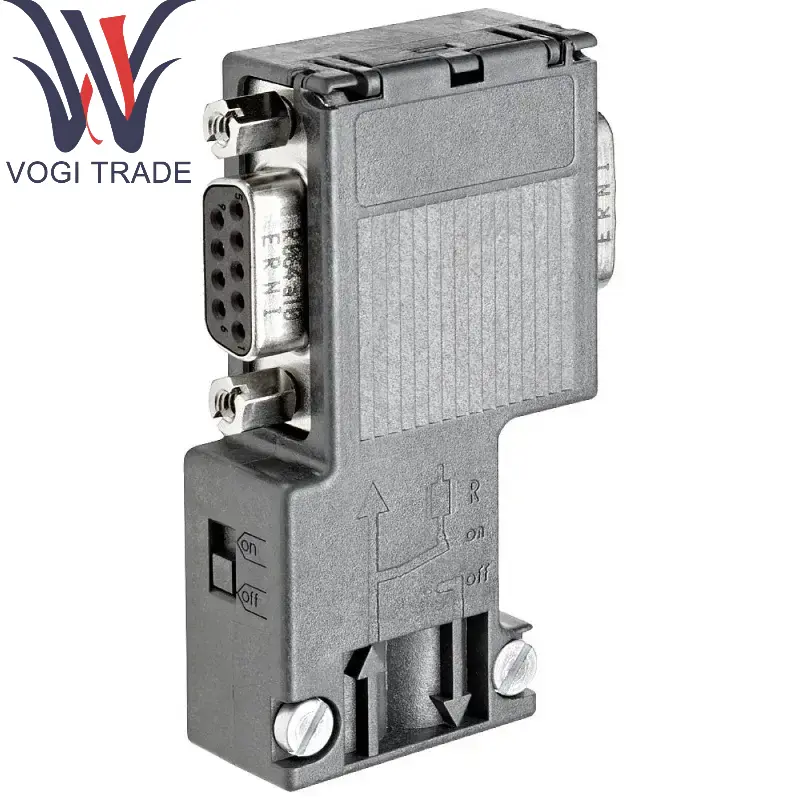

Brand: Siemens Description: RS485 bus connector Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7972-0BB42-0XA0 SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s with inclined cable outlet, 15.8x 54x 39.5 mm (WxHxD), terminating resistor with isolating function, With PG receptacle
|
Manufacture |
Siemens |
|
Model Number |
6ES7972-0BB42-0XA0 |
|
Catalog |
SIMATIC DP |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
1.58cm×5.4cm×3.95cm |
|
Packing Dimension |
3.58cm×7.4cm×5.95cm |
|
Weight |
0.034kg |
Product Description
Type: Bus Connector
Design:
90° cable outlet: saves space and is suitable for compact installation.
Integrated programming port (PG port):Siemens 6ES7972-0BB42-0XA0 allows programming devices to be connected without stopping the machine, which is convenient for debugging and maintenance.
Purpose:Siemens 6ES7972-0BB42-0XA0 used to connect cables and devices of PROFIBUS DP network.
Product Details
Technical Parameters
Features Specifications
Interface Type PROFIBUS DP (9-pin Sub-D interface)
Cable outlet angle 90° elbow
Data transmission rate supports 9.6 kbps ~ 12 Mbps
Termination resistor can be activated by switch
Protection Class IP20 (indoor use)
Compatibility complies with PROFIBUS IEC 61158/EN 50170
Operating temperature -20°C ~ +60°C
Physical Characteristics
Color: usually black or dark gray.
Material: flame-retardant plastic housing, metal shielding layer.
Electrical characteristics
Maximum current: 500 mA .
Application areas
Industrial automation:
PROFIBUS DP interface for connecting SIMATIC S7-300/400/1500 PLC.
Network connection for ET 200 distributed I/O modules, frequency converters, HMI and other devices.
Key scenarios:
Production lines that require online programming or diagnosis.
Space-constrained electrical cabinet installation.
Installation and use instructions
Wiring method:
Connect PROFIBUS cable via 9-pin Sub-D interface.
Terminal resistance must be activated for terminal equipment (switch set to "ON").
Note:
Terminal resistance must be used at both ends of the network.
Avoid cable bending radius that is too small.
Advantages and features
Reliability: Siemens original design to ensure PROFIBUS network stability.
Convenience: Integrated PG port supports fast commissioning and reduces downtime.
Compatibility: Widely supports Siemens and third-party PROFIBUS devices.
