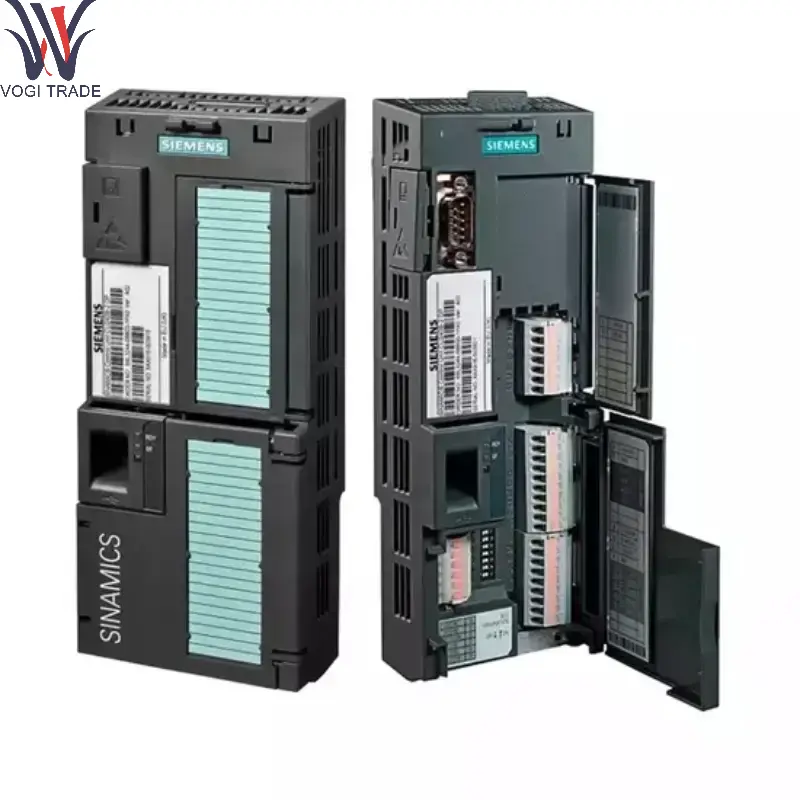

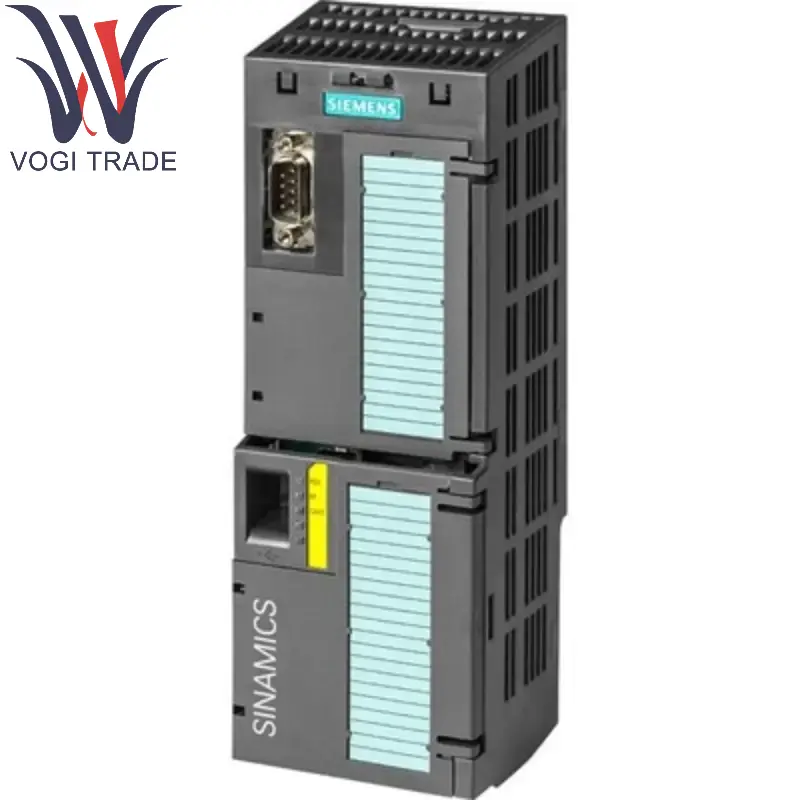

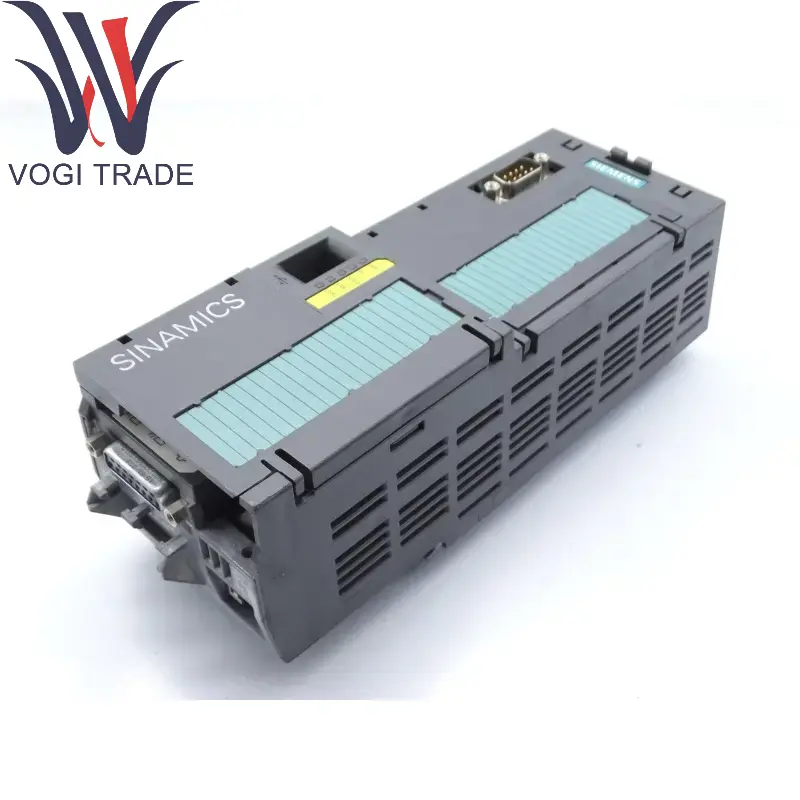

Brand: Siemens Description: CONTROL UNIT CU250S-2 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6SL3246-0BA22-1FA0 SINAMICS G120 CONTROL UNIT CU250S-2 PN INTEGRIERT PROFINET SUPPORT OF VECTOR CONTROL, EASY POSITIONING EPOS VIA EXTENDED FUNCTION LICENSE 4 CONFIGURABLE DI/DO
|
Manufacture |
Siemens |
|
Model Number |
6SL3246-0BA22-1FA0 |
|
Catalog |
SINAMICS G120 |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
9.3cm×24cm×6.8cm |
|
Packing Dimension |
11.3cm×26cm×8.8cm |
|
Weight |
0.610kg |
Product Description
Siemens 6SL3246-0BA22-1FA0 is a power module in the Siemens SINAMICS series and is part of the SINAMICS S120 drive system. It is mainly used to provide DC bus voltage for the drive system and support the coordinated operation of multi-axis servos or inverters.
Type: Active Line Module (ALM)
Function: Convert three-phase AC power (such as 380-480V AC) into a stable DC voltage (600V DC), and support energy feedback to the grid to improve energy efficiency.
Features:
High dynamic response, suitable for precision control scenarios.
Siemens 6SL3246-0BA22-1FA0 support regenerative braking energy recovery, energy saving and environmental protection.
Modular design, easy to integrate into the SINAMICS S120 system.
Product details
Key parameters
Input voltage: 3AC 380–480V (±10%), 50/60Hz
Output power: Approximately 16 kW
DC bus voltage: 600V DC
Rated current: 36A
Protection level: IP20 (needs to be installed in the cabinet)
Communication interface: PROFIBUS/PROFINET (optional)
Cooling method: air cooling or liquid cooling (depending on the version)
Technical characteristics
Active rectification technology: reduce grid harmonics (THD <5%), in line with EMC standards.
Integrated protection functions: overvoltage, undervoltage, overcurrent, short-circuit protection, etc.
Diagnostic function:Siemens 6SL3246-0BA22-1FA0 monitor the operating status through LED status lights or software (such as SINAMICS Starter).
Application areas
This module is widely used in industrial automation scenarios that require high precision and high dynamic performance:
Machine tools and machining centers: spindle drive, feed axis control.
Packaging machinery: synchronous control of multiple servo axes.
Printing and papermaking: precise tension control.
Lifting and logistics: renewable energy recovery.
New energy: wind power converter system.
Supporting equipment
Control unit: such as CU320-2DP.
Motor module: such as 6SL3120-1TE21-0AA3.
Encoder system: supports absolute/incremental encoders.
