TQ412 111-412-000-013-A2-B1-E005-F0-G000-H05

Brand: Vibro-Meter
Description:Signal Conditioner
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 38
Payment Term: T/T
Shipping Port: ShenZhen

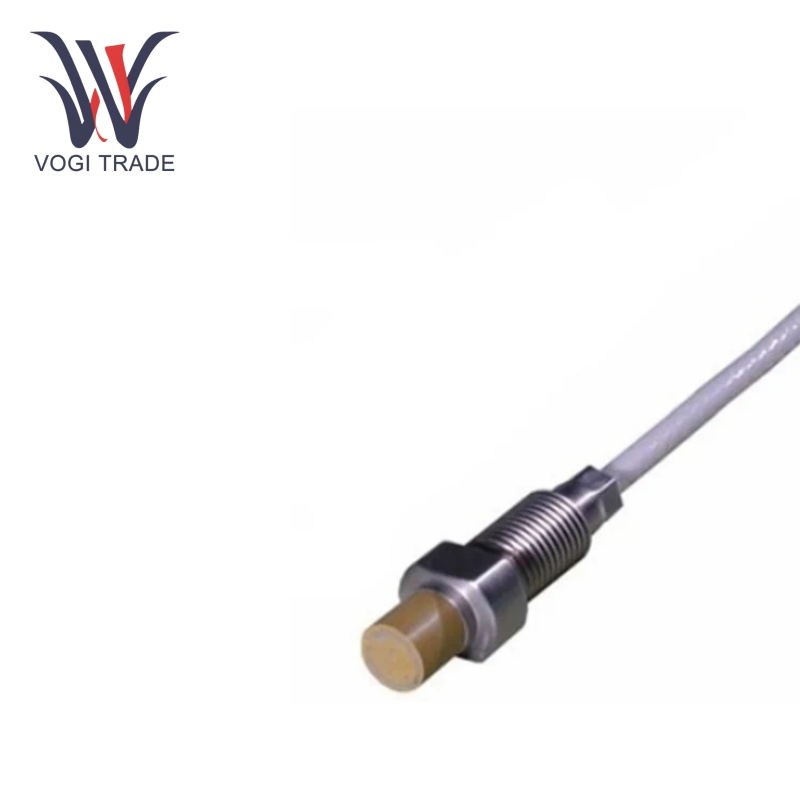

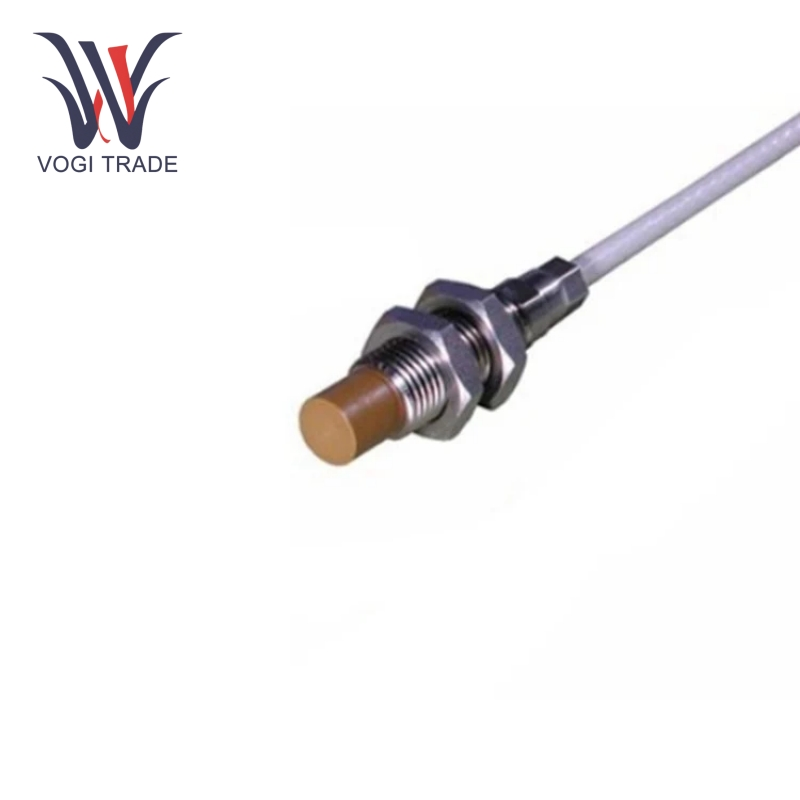

TQ412 111-412-000-013-A2-B1-E005-F0-G000-H05 is a proximity transducer that can measure the relative vibration and axial displacement of the shaft of rotating machinery through high-precision electromagnetic fields based on the eddy current principle.

Send Inquiry

Product Description

Manufacture	Vibro-Meter
Model Number	TQ412

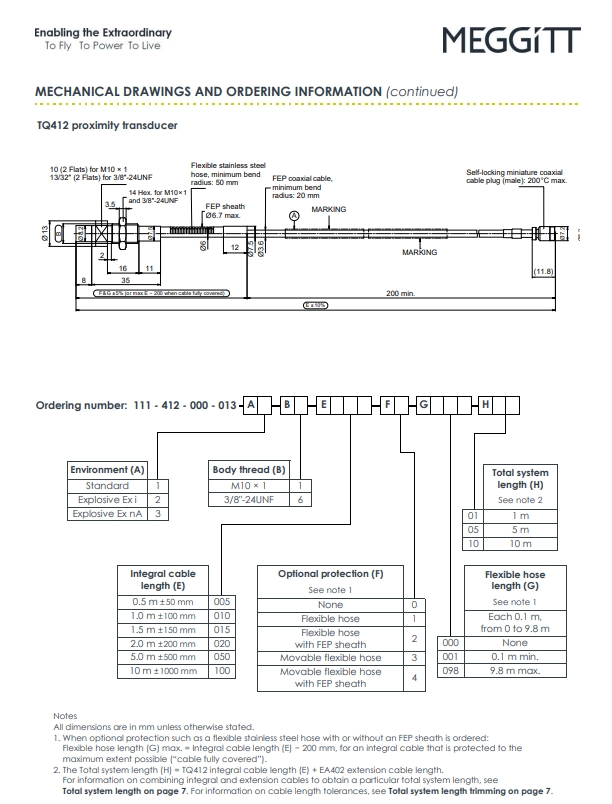

Ordering Number	111-412-000-013-A2-B1-E005-F0-G000-H05
Catalog	VM600
Country Of Origin	Switzerland
HS CODE	9031809090
Dimension	19 × 82 mm
Packing Dimension	10×25×18cm
Weight	0.48 kg

Core parameters

Measurement range: 2 mm (high sensitivity)

Output signal: voltage output (-1.6V ~ -17.6V), sensitivity 8 mV/μm

Environmental adaptability: IP68 protection (sensor head), -40°C ~ +180°C operating temperature, support vibration (5g peak) and shock (15g peak) environment

System configuration: 0.5 m main cable + 4.5 m extension cable (total length 5 m), compatible with IQS900 signal conditioner

Explosion-proof certification: Ex ia IIC T6/T3 Ga (ATEX/IECEx/KGS/PESO multi-national certification)

Material construction: Torlon® polyamide-imide probe, 316L stainless steel housing, chemically resistant FEP cable sheath

Functional features

Meggitt Vibro-Meter TQ412 111-412-000-013-A2-B1-E005-F0-G000-H05 adopts reverse installation design, which can be flexibly deployed in narrow spaces.

TQ412's temperature compensation mechanism and electromagnetic interference resistance (compliant with EN 61000-6-4 standard) ensure signal stability, while the interchangeable component design (sensor and conditioner can be replaced independently) greatly reduces maintenance costs.

Vibro-Meter 111-412-000-013-A2-B1-E005-F0-G000-H05 is the core component of the mechanical protection system. This product can be directly integrated into the VM600 or VibroSmart® monitoring platform to output shaft vibration trends in real time and prevent unplanned downtime.
