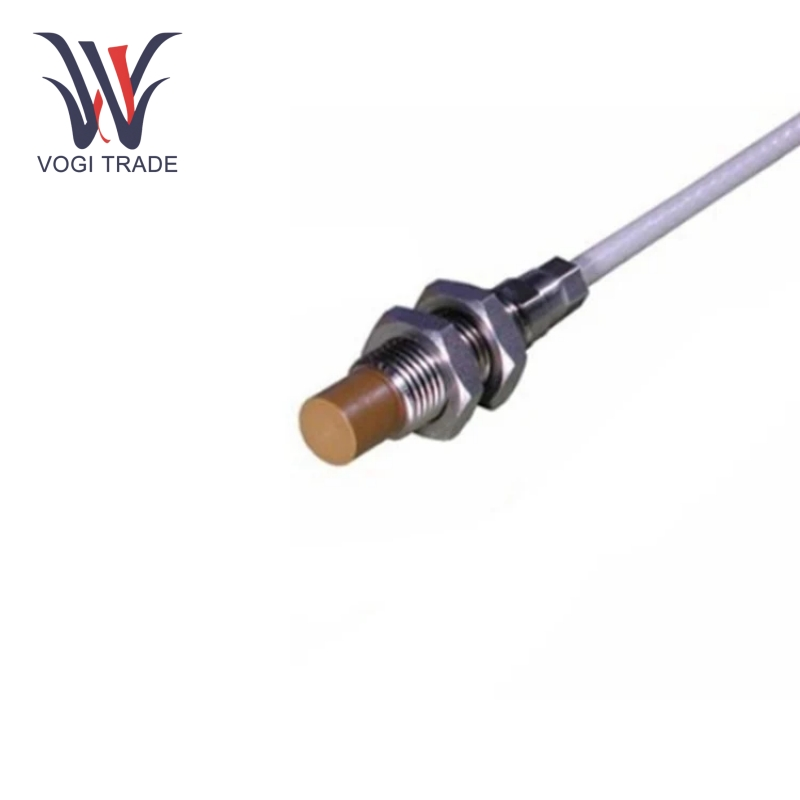

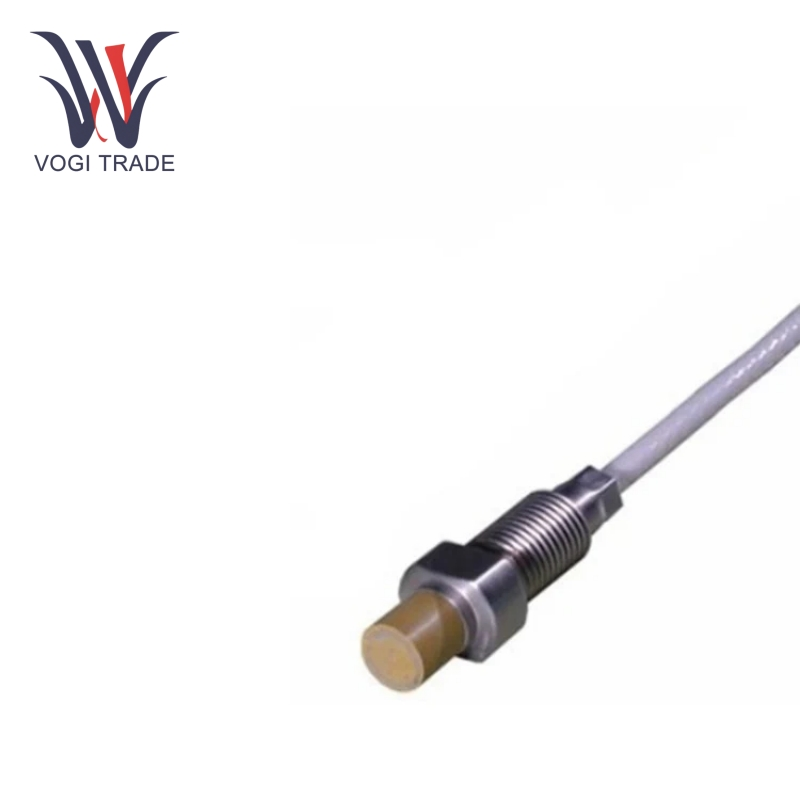

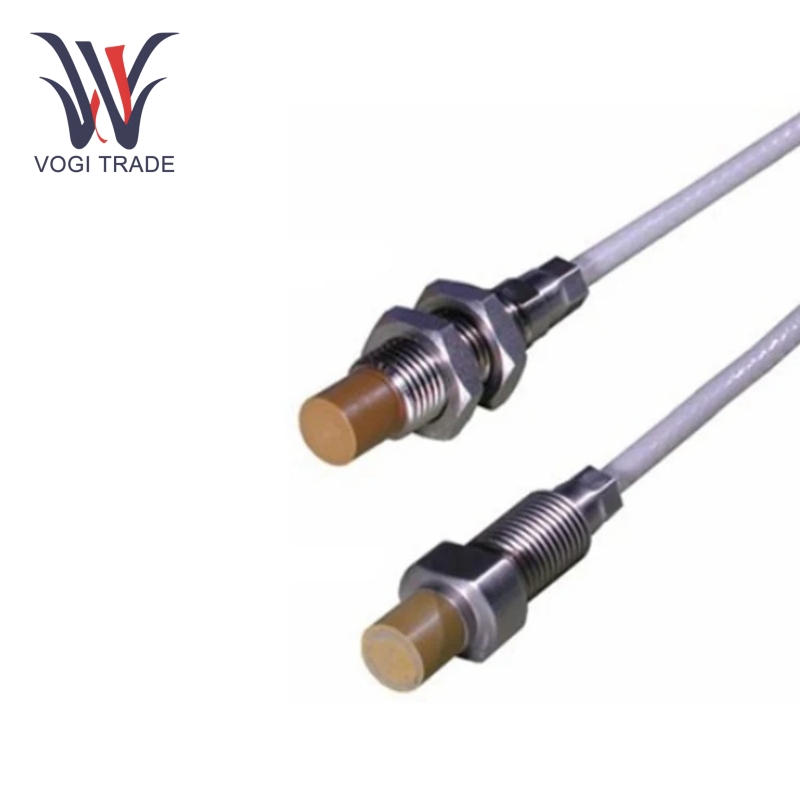

TQ412 111-412-000-013-A2-B1-E005-F0-G000-H10

Core parameters

Range: 2mm (B1 code corresponds to 8mV/μm sensitivity)

Linear range: 0.15~2.15mm (output -15.5~-20.5mA current signal)

Frequency response: DC~20kHz (-3dB)

Interchangeability: All components in the system (probe/cable/conditioner) are interchangeable

Temperature: -40℃ to +180℃ (operating), short-term resistance to 220℃

Protection: Probe head IP68, the whole passed IECEx/ATEX intrinsic safety certification (A2 code)

Explosion-proof: Ex ia IIC T6 Ga (applicable to Zone 0/1/2)

Probe material: Torlon® polyamide-imide probe head + 316L stainless steel body

Cable configuration: 0.5m body cable + 9.5m EA402 extension cable (total length 10m)

Installation method: reverse thread design (unique to TQ412)

Features and advantages

The core advantages of Meggitt Vibro-Meter TQ412 111-412-000-013-A2-B1-E005-F0-G000-H10 lie in its high temperature tolerance, intrinsic safety certification and reverse installation adaptability.

The probe of Vibro-Meter 111-412-000-013-A2-B1-E005-F0-G000-H10 uses high-temperature epoxy resin to encapsulate the coil, ensuring that the drift is <5% under 180℃ working conditions; it has passed multi-national explosion-proof certification (including IECEx/ATEX/PESO) and can be directly used in hazardous areas; the unique reverse installation design solves the deployment problem in space-constrained scenarios.

The system supports seamless integration with VM600/VibroSmart® monitoring platform and has full component interchangeability, greatly reducing the complexity of operation and maintenance.

This TQ412 product uses precision packaging to achieve long-term stable monitoring in harsh environments, which is an ideal solution for the protection of heavy industrial machinery.
