Vibration CMC16 200-530-025-014

Brand: Vibro-Meter
Description: Condition Monitoring Card
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 5
Payment Term: T/T
Shipping Port: Xiamen

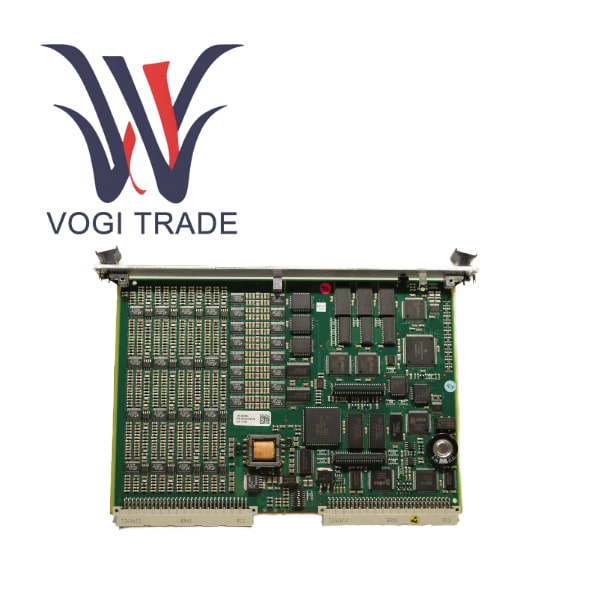

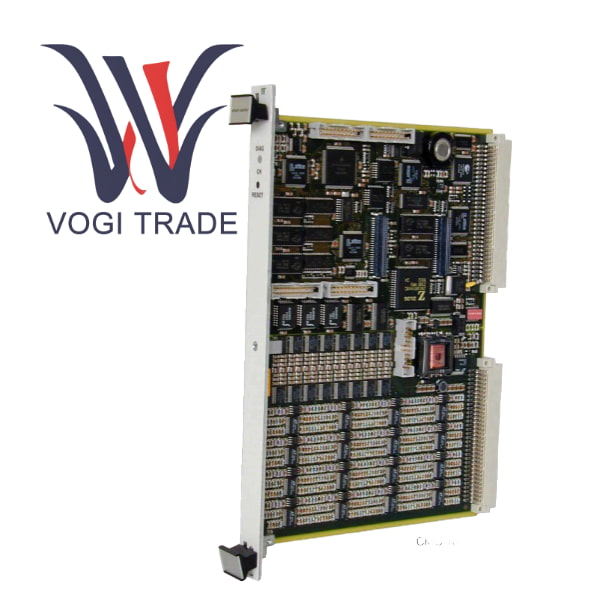

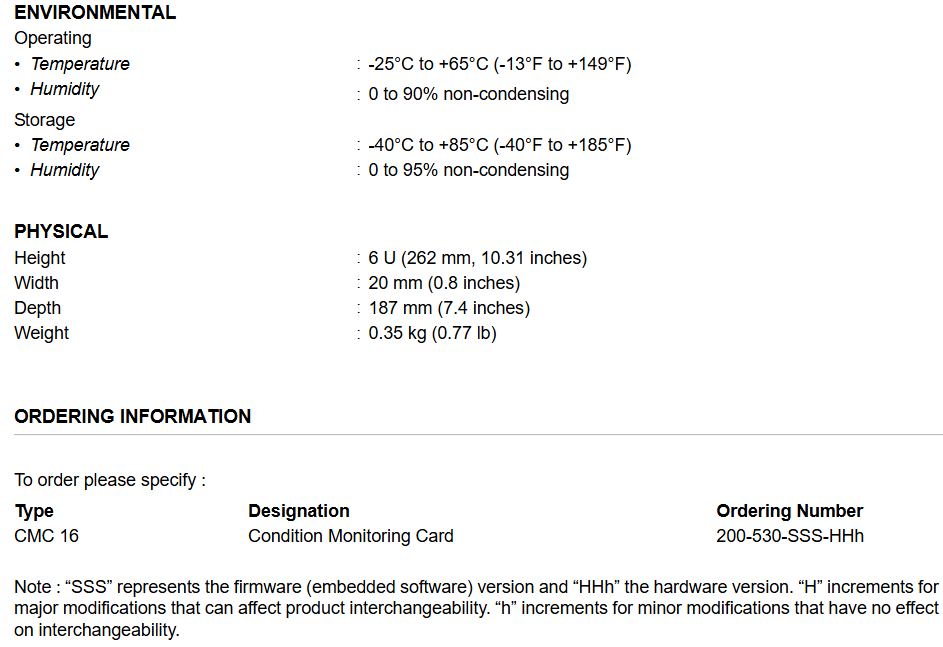

The Vibro-Meter CMC16 is a high-performance and intelligent front-end data acquisition unit designed by Swiss Vibro-Meter SA for its flagship VM600 series of condition monitoring systems. In model 200-530-025-014, 025 represents the embedded software version and 014 represents the hardware version.

Send Inquiry

Product Description

Manufacture	Vibro-Meter
Model Number	CMC16 200-530-025-014
Ordering Number	CMC16 200-530-025-014
Catalog	-
Country Of Origin	Switzerland
HS CODE	9031809090
Dimension	25cm20cm8cm
Packing Dimension	27cm22cm10cm
Weight	1.2kg

Product Overview

The Vibro-Meter CMC16 is a high-performance and intelligent front-end data acquisition unit designed by Swiss Vibro-Meter SA for its flagship VM600 series of condition monitoring systems. In model 200-530-025-014, 025 represents the embedded software version and 014 represents the hardware version. As the core hardware component of the VM600 system, the CMC16 card is not an independent device but a functional board card installed in a standard VME bus chassis. Its main mission is to conduct high-precision, synchronized real-time acquisition, analysis, and preprocessing of the key dynamic parameters of industrial rotating machinery. It can directly receive the raw signals from vibration sensors, speed sensors, and other process quantities, and complete a series of complex calculations such as time-domain to frequency-domain conversion, feature value extraction, and alarm judgment on the board. Finally, it efficiently transmits the refined results to the upper host through Ethernet or serial links. This intelligent front-end design concept significantly reduces the burden on the upper host and ensures the real-time and reliability of monitoring.

Comparison of similar products

	Vibro-Meter CMC16	Bently Nevada 3500/42M	General-purpose high-speed DAQ card (such as NI PXI)	Integrated online monitoring instrument (such as SKF IMx)
Core positioning	Intelligent front-end of high-end CMS system	Independent professional monitoring/conservation system	General Data Acquisition Platform	Compact dedicated monitoring unit
Architecture	Distributed VME chassis + upper computer	Centralized standalone rack	Centralized/Distributed Dependent on PXI Rack	Integration Single Device
Intelligent processing	Ultra-high on-board DSP	High built-in processor	Low Dependent on the CPU of the upper computer	Internal built-in processor
Channel synchronization	Perfect Independent ADC	Perfect	Depends on the model	Usually good
Flexibility	Extremely Software-defined	Modular but proprietary	Extremely for LabVIEW programming	Low functionally fixed
Applicable scenarios	Large-scale critical equipment requires deep integration.	Key units, independent SIS	Research and development, test bench, small project	Small and medium-sized units, simple monitoring

Product Updates and Technological Advancements

The CMC16 era represents the maturity of high-end condition monitoring technology based on VME and dedicated DSP. Its design concept - intelligent front-end, synchronous acquisition, and on-board processing - remains a benchmark in the industry to this day.

Evolution to New Platforms With the advancement of technology, Meggitt/Vibro-Meter's new product line has begun to adopt more modern processor architectures and full Ethernet communication to provide higher computing power, greater data throughput, and a more open software ecosystem.

Current Positioning The CMC16 and the VM600 platform it belongs to are currently in the mature and stable operation phases. Due to their outstanding reliability and performance, there are still a large number of such systems in service in critical facilities worldwide. Manufacturers still provide technical support and spare parts for them.
