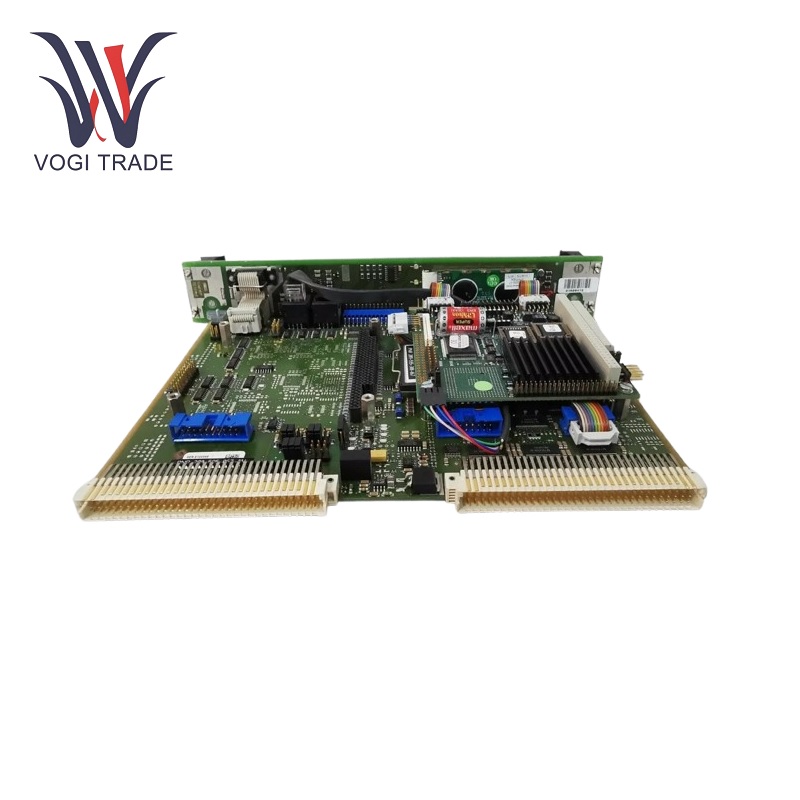

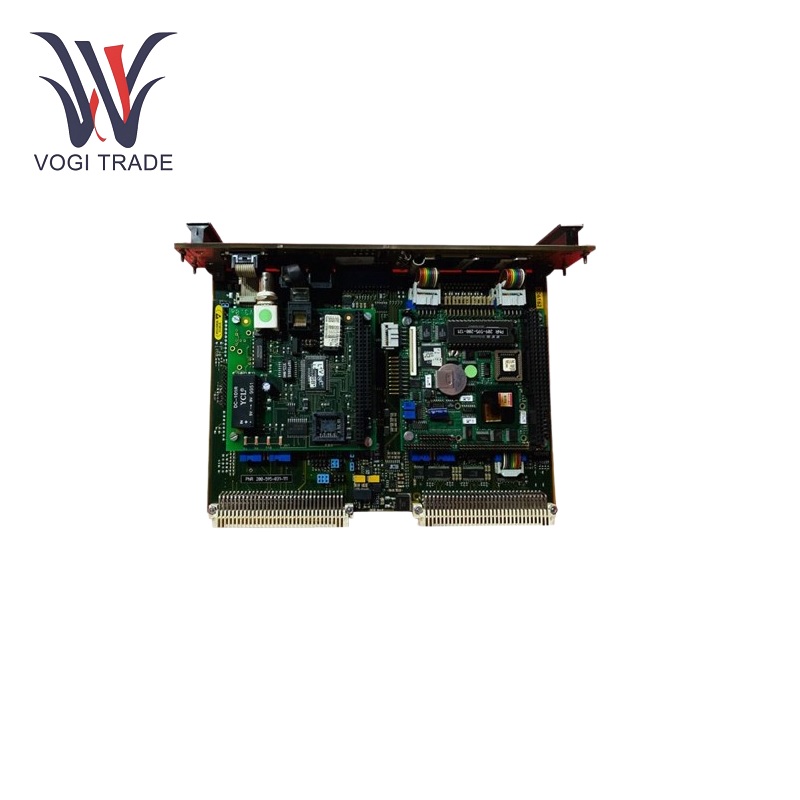

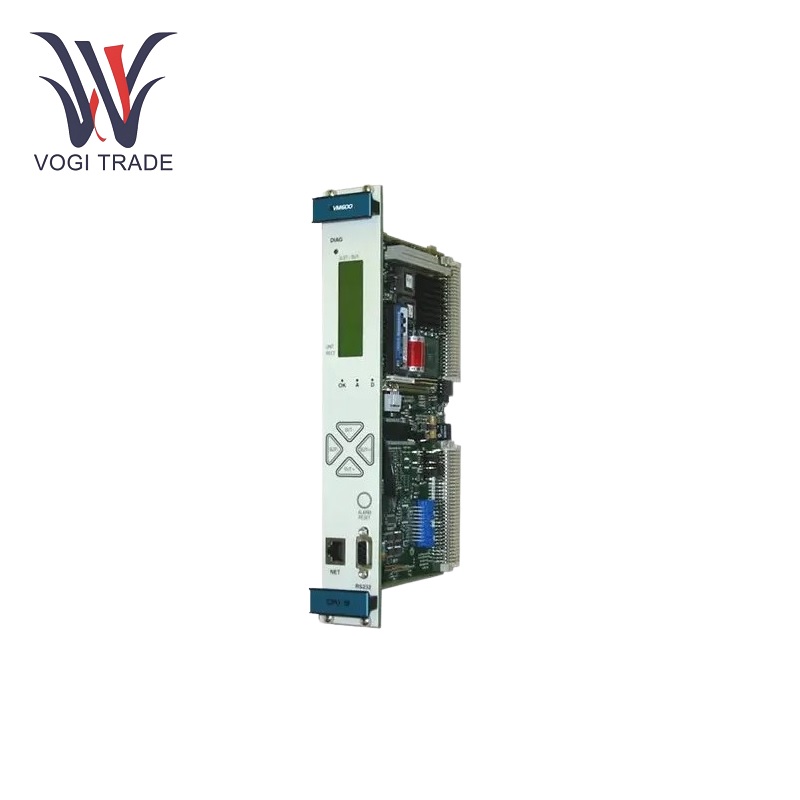

Vibration CPUM

Specification

Communication Interfaces: Vibration CPUM is equipped with a main Ethernet connector (8p8c or RJ45) for communication with VM600 MPSX software and/or Modbus TCP and/or Profinet.

Signal Channels: 4 dynamic signal channels and 2 tachometer (speed) channels.

Serial Connectors: Two pairs of 6p6c (RJ11/RJ25) serial connectors that can be used to configure a multi-drop RS-485 network for the VM600 rack.

Input Voltage Range: 18 VDC to 32 VDC.

Features

Real-time Monitoring: Vibration CPUM is for continuous and real-time vibration monitoring. It samples and analyzes the vibration signals and gives the instant status of the machinery condition. This allows for anticipating maintenance action and preventing costly breakdowns.

Multiple Channels: It has the capability of simultaneous measurement at different points on a machine or in a system. This wider perspective allows for understanding the more detailed vibration behavior, enabling the accurate identification of the source of any problems.

Signal Processing: Signal processing techniques are quite advanced. Vibration CPUM can filter out noise and unwanted frequencies; amplify weak signals; perform spectral analysis. Thus, the clarity and utility of the vibration data provide ease of identifying specific vibration patterns associated with different kinds of faults or wear.

Rugged Design: Vibration CPUM has been designed to meet the toughness of harsh industrial environments, thus exhibiting resistance to extreme temperatures, high humidity, and mechanical shocks. It can be installed in locations with challenging conditions, like on industrial floors, near heavy machinery, and even for outdoor applications.

Electromagnetic Compatibility: Housing is designed to resist electromagnetic interference (EMI). Living in industrial settings, with countless electrical devices and power sources around, this ensures that the vibration measurements remain unaffected by external electromagnetic fields, thus preserving the integrity of the data.

Longevity with Low Maintenance: It is highly reliable.  Vibration CPUM is highly low maintenance, hence there is minimal downtime and less operational cost. This is a cost-efficient approach to vibration monitoring in many industrial facilities.

Application

Power Generation: In power plants, it is used to monitor the vibration of turbines, generators, boilers, and other critical equipment. Continuous control of vibration levels permits early detection of problems such as rotor unbalance, bearing wear, or shaft misalignment, guaranteeing smooth, reliable, and efficient working of the power generation process.

Manufacturing: Used in a wide variety of manufacturing machinery, including machine tools, presses, conveyors, and motors. Vibration CPUM also ensures product quality by detecting vibration, which may affect machining accuracy or cause premature wear of components. On assembly lines, it detects problems that may cause production slowdowns or shut-offs.

Aerospace: In aerospace manufacturing and testing for components of aircraft engines and landing gear, as well as those flight-critical components, Vibration CPUM is used to ensure that components meet stringent vibration tolerance standards and can identify developing faults while in service, thus improving flight safety.

Automotive: It is applied in automobile manufacturing plants for testing and monitoring vibrations in engines, transmission units, and chassis components. Vibration CPUM is used for quality control purposes and can also be embedded into the vehicle health monitoring systems to detect potential issues while in service to ensure vehicle dependability and durability.
