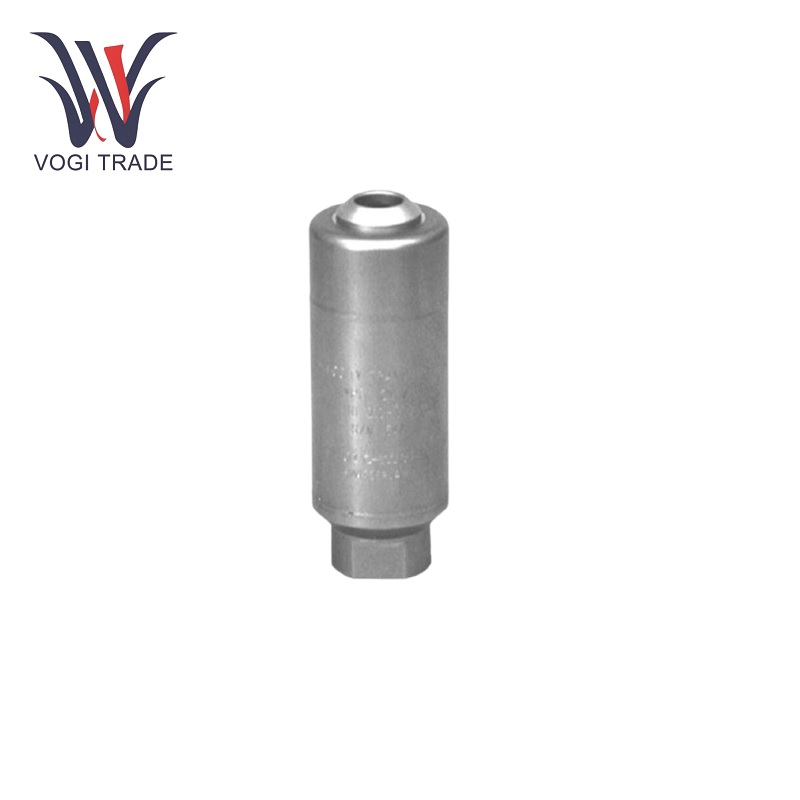

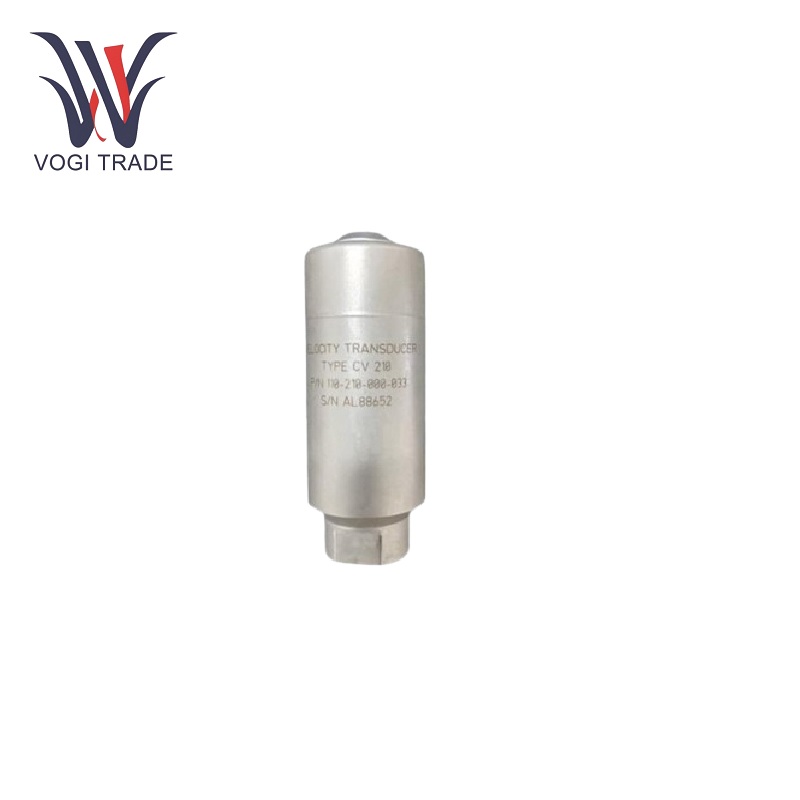

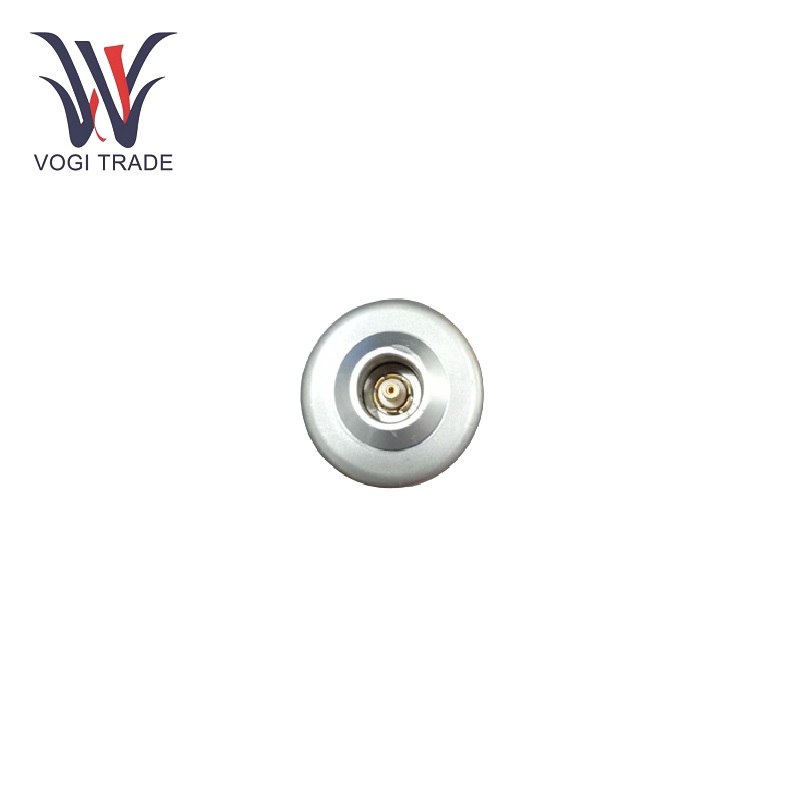

Vibration CV210

Technical Specification

Frequency Range: 2 Hz to 10 kHz.

Dynamic Range: >100 dB, permitting for accurate measurements with large amplitude vibration present.

Acceleration Measurement: Capable of responding to a range of one-third to five hundred conformance to acceleration measurements of ±500 m/s² thus giving a clear-cut indication on machine vibrational functions.

Velocity Measurement: up to ±1000 mm/s.

Displacement Measurement: ±50 mm.

Sampling Rate: up to 51.2 kHz.

Features

Multi-Channel Monitoring: Vibration CV210 supports multiple channels of vibration measurement, enabling simultaneous monitoring of different points or components.

Real-Time Data Acquisition: Continuously acquires vibration data in real-time, providing up-to-date information for immediate analysis and response.

Advanced Signal Processing: IncorpoRates sophisticated signal processing algorithms to filter out noise and extract valuable signatures of vibrations.

Built-In Temperature Compensation: Vibration CV210 provides automatic temperature compensation to give absolute readings across different operating conditions.

Alarm and Threshold Settings: Vibration CV210 allows users to set specific alarm conditions for vibration levels, giving out an alert when abnormal behavior is detected.

High Accuracy and Reliability: Vibration CV210 is constructed from highly precise components and knows sophisticated calibration techniques furthering a good level of precision as well as consistency.

Flexible Configuration: It is offered with a large variety of configuration options, which ensure that the device is well tailored to fulfill the requirements of specific applications and setups.

Remote Monitoring Capability: Vibration CV210 allows for remote access for monitoring and some management of the data and configuration of devices.

Applications

Power Generation: It can be used in power plants to monitor the vibrations of turbines, generators, and other critical equipment, ensuring reliable power production and preventing costly breakdowns.

Petrochemical Industry: Vibration CV210 is used for the vibration monitoring of pumps, compressors, and pipelines in refineries and chemical plants hence promoting safety and performance.

Manufacturing: Contributes to the monitoring of machine tools, conveyor belts, and production machinery, thereby improving production quality and reducing maintenance costs.

Aerospace and Defence: Vibration CV210 is used in vibration analysis and structural health monitoring of airplane engines, helicopter rotor systems, and components of military vehicles.

Transportation: It can be used to monitor vibrations of railway tracks, bridges, and the suspension of vehicles, thereby offering safe and comfortable transportation.
