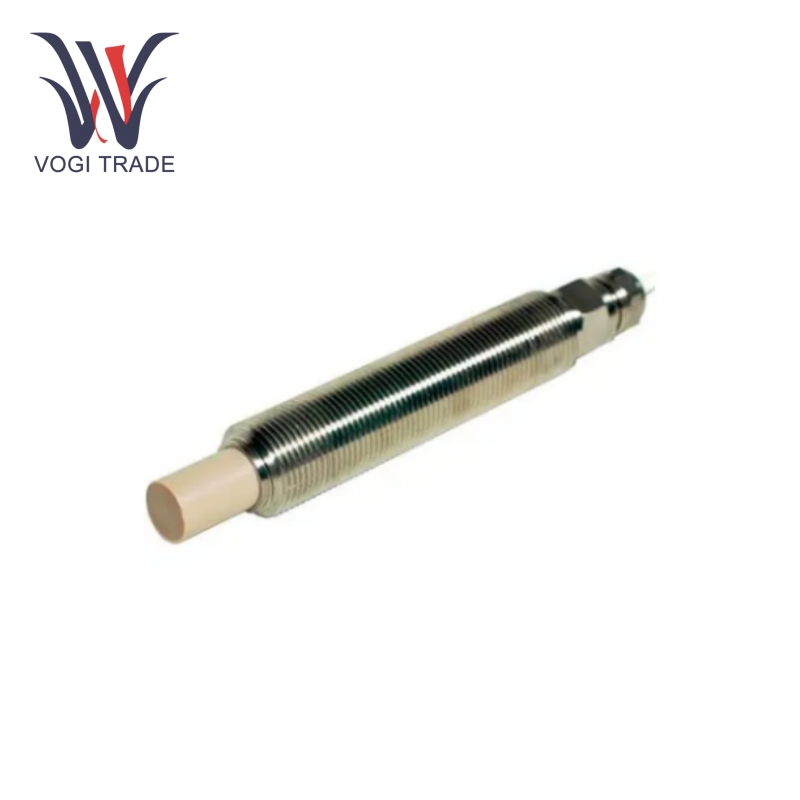

Brand: Vibro-Meter Description:Eddy current proximity sensor Condition:New Warranty:1 year Inventory Qty:8 Payment term:T/T Shipping Port:ShenZhen The Vibration TQ403 is a highly reliable and versatile vibration monitoring device. With its excellent use parameters, it provides accurate and stable vibration measurements under various operating conditions.
Manufacture |
Vibro-Meter |
Model Number |
TQ403 |
Ordering Number |
111-403-000-013 |
Catalog |
Eddy current proximity sensor |
Country Of Origin |
Switzerland |
HS CODE |
8538909 |
Dimension |
16*16*12 CM |
Packing Dimension |
18*18*15 CM |
Weight |
0.8 kg |
Use Parameters
Sensing Range: Vibration TQ403 has a wide sensing range from 10 Hz to 1000 Hz, capable of detecting vibrations in a variety of mechanical equipment and structural materials. The device can monitor vibrations from different sources, covering the common operating frequencies of a variety of industrial machines. As a high-sensitivity 100 mV/g instrument, it can sense tiny vibrations very reliably. The special ability to detect subtle changes in vibration levels at an early stage will help predict equipment problems or abnormal performance. It has an accuracy of ±5% within the specified range. This accuracy improves the reliability and precision of complex vibration measurements, and the resulting data can be processed accordingly for further research and feasible industrial analysis.
Operating Temperature: The operating temperature range of -20°C to +70°C makes VibrationTQ403 suitable for a variety of operating environments: general indoor and outdoor operations within its range. Due to such temperature resistance, it can work stably even under adverse conditions of high and low temperatures.
Power supply: The common power supply of Vibration TQ403 is generally a DC power supply in the voltage range of 9V and 30V, which is easy to implement in any different power supply system, making installation and operation easier and more convenient.
How the product works
Vibration monitoring: The main function of Vibration TQ403 is to continuously monitor the vibration level of mechanical equipment. It can be easily installed on the surface of the equipment or structure that needs to be monitored, and measure and record the amplitude, frequency and other parameters of vibration in real time. This allows the operator to clearly understand the working condition of the equipment at any time.
Fault detection: By analyzing the collected vibration data, VibrationTQ403 can effectively identify various faults and potential problems that may exist in the equipment. This includes problems such as unbalanced rotating parts, misaligned shafts, excessive wear of bearings, and loose parts. This early detection ensures timely maintenance and repair of equipment, reduces downtime and avoids more serious damage.
Alarm function: It is also equipped with an alarm function that triggers an alarm when the vibration level exceeds the predefined threshold. Therefore, the operator will be immediately alerted so that he can take quick action to deal with the problem. The alarm can be configured to send a signal to the control system through a visual indicator, an audible alarm or a digital signal.
Data Logging and Analysis: The Vibration TQ403 stores vibration history for a predetermined period of time. This data can be downloaded and then analyzed using the appropriate software or tools. Detailed data analysis allows various trends, patterns and anomalies in the vibration behavior of the machine to be discerned, further enhancing predictive maintenance and equipment performance.
Therein lies the compatibility factor: it has been manufactured to be compatible with a wide range of other categories of monitoring and control systems; it can be easily integrated into existing industrial automation protocols such as SCADA or PLC, allowing for an unimpeded flow of data and its inclusion into the overall plant management architecture.
Application Areas
Industrial Machinery: In manufacturing plants, the Vibration TQ403 is widely used to monitor vibrations in a wide range of industrial machinery, including motors, pumps, compressors, fans and conveyors. Continuous readings of vibrations help keep production lines running smoothly, improve equipment reliability and increase productivity.
Power Generation: In power plants, it ensures monitoring of vibrations in generators, turbines and various critical power generation machinery. Timely identification of vibrations in these expensive assets is a key aspect in preventing power losses, minimizing maintenance costs and extending equipment life.
HVAC Systems: The Vibration TQ403 can monitor vibrations in fans, motors, and various HVAC system components. It helps keep HVAC systems performing optimally, saves energy, and maintains a comfortable indoor environment.
Automotive: In automotive manufacturing and repair, it can test and measure vibrations in automotive components such as engines, transmissions, and chassis. This helps with quality control during manufacturing and diagnosing or troubleshooting during vehicle repairs.
Aerospace: Since system reliability is critical in aviation, the Vibration TQ403 can monitor the effects of vibrations on aircraft engines, landing gear, and any other critical subcomponents. This helps ensure flight safety and reliability in aerospace operations.
