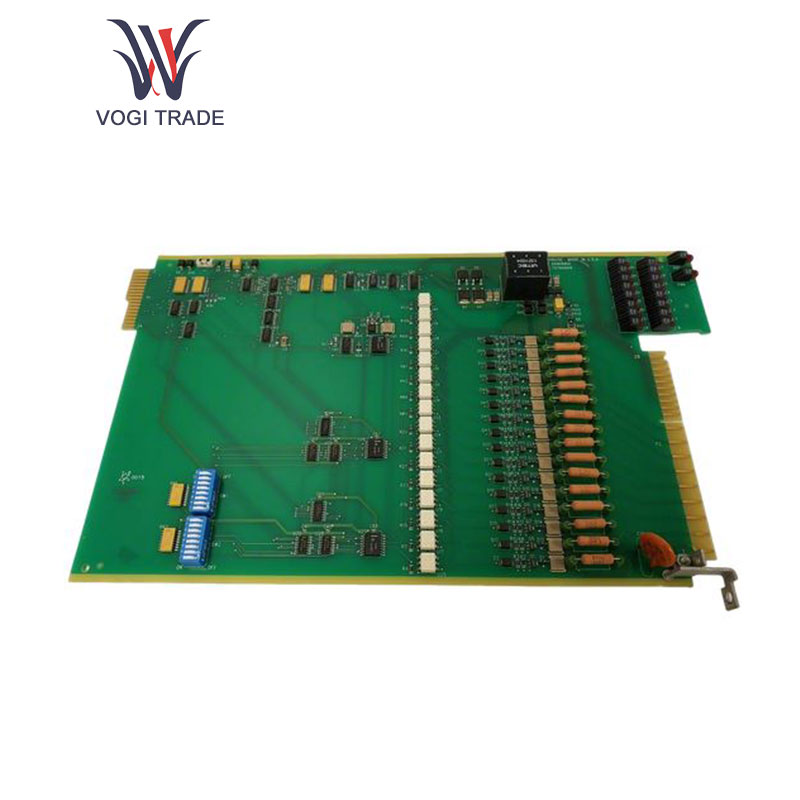

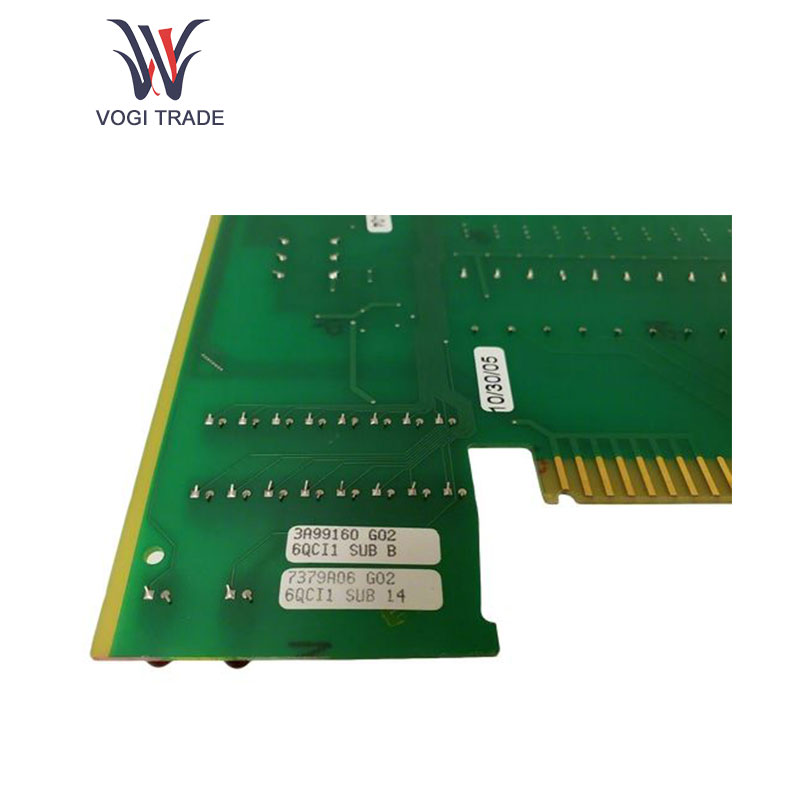

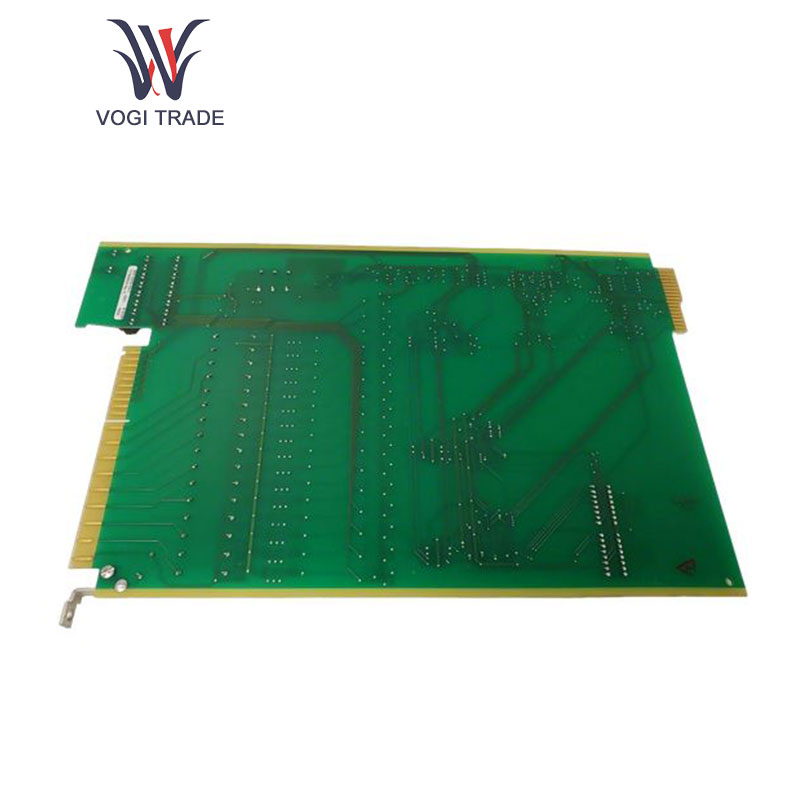

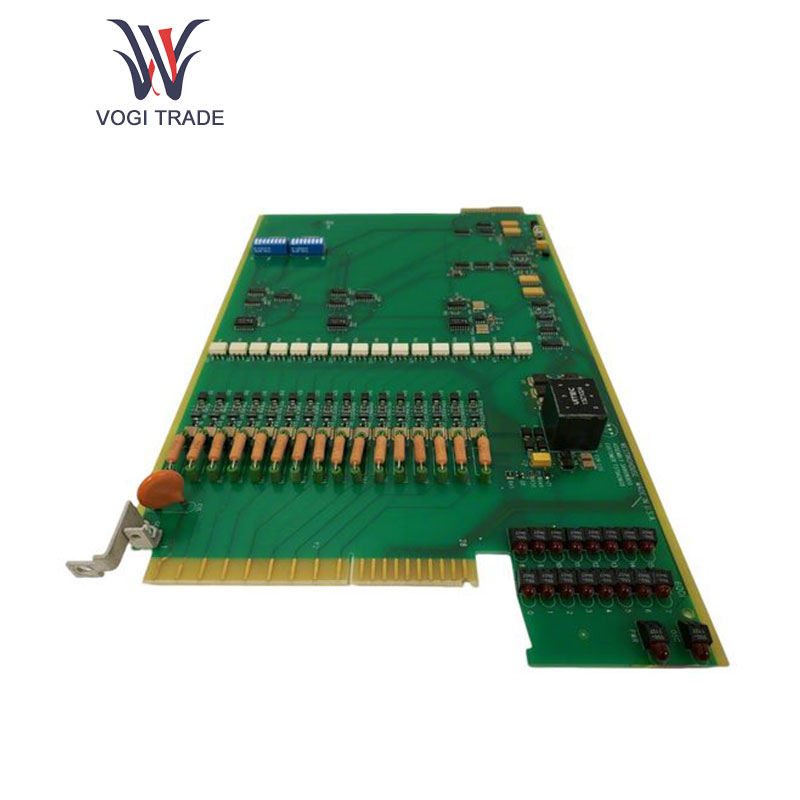

Westinghouse 3A99160G02

Details

Performance Parameters

Input voltage

The adaptable range for Westinghouse 3A99160G02 is 100~240VAC. It can operate stably under different standard voltage environments and can effectively cope with voltage fluctuations and an unstable power supply.

Output voltage

Accurate output voltage at 24VDC affords high voltage stability, and voltage deviation falls within a very small range, thus providing reliable and constant power supply to connected devices.

Output current

Total maximum output of up to 5A meets the power demand of multiple mid-Power loads in one single large load, therefore ensuring that the equipment can operate normally.

Working temperature

Westinghouse 3A99160G02 can work in a wide temperature range of -20 to 70 degrees Celsius, and provide stable performance even in extremely harsh environmental conditions.

Functional Features

Overload protection

When the load exceeds the specified output current, the overload relay will break the circuit in a very short time frame, thus preventing damage to the device due to overload, thus providing protection both for the connected devices and personnel.

Short circuit protection

Short-circuit detection done according to output end-it automatically cuts off power to avoid dangerous situations like fire due to a short circuit. Once an anomaly is removed and the normal operation conditions are established, it will return back automatically.

Voltage regulation

The output voltage is automatically adjusted slightly due to load change, insuring that the connected equipment does supply from stable and accepted voltages for all load conditions. This fundamentally improves the stability and reliability of the equipment.

Status indication

Westinghouse 3A99160G02 is attached with competent specification signal lights, which display varying operational states like "power ON," "overload," or "short-circuit," making it quick and clear for the user to know the equipment's operational status for timely access to maintenance.

Technical Features

High Efficiency Power Conversion Technology

Westinghouse 3A99160G02 adopts advanced switching power conversion technology, and the power conversion efficiency is as high as 85%. Compared with traditional power supplies, it greatly reduces energy loss and reduces the cost of use. Meanwhile, the dropped heat generation makes it conducive to stable long-term operation of the instrument.

Electromagnetic compatibility design

This exhibits very good electromagnetic compatibility. It effectively abates the electromagnetic interference produced by itself while the instrument operates so as to remove impatience on other electronics working in the vicinity of itself, based on having a good immunity from the challenge of external electromagnetic interference, such a construct permits normal operation in a cadre of electromagnetic environment geometries.

Modular Design

Westinghouse 3A99160G02 adopts a modular layout concept, ranging from compact to rational to for patch component assembly and testing; each function module is relatively independent for easy production, assembly, and commissioning, as well as subsequent repairs and upgrades, lessening the residue burden of overall maintenance.

Good Quality Electronic Components

Good and reliable electronic components being used, undergo strict screening and verification, resulting in a long span where every electronic component operates in its correct functioning.
