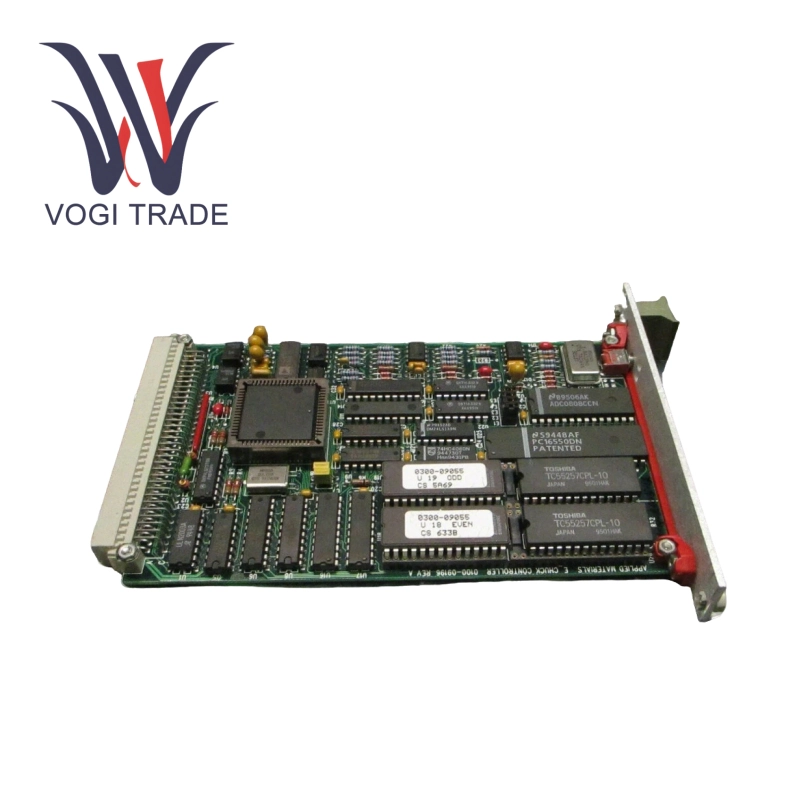

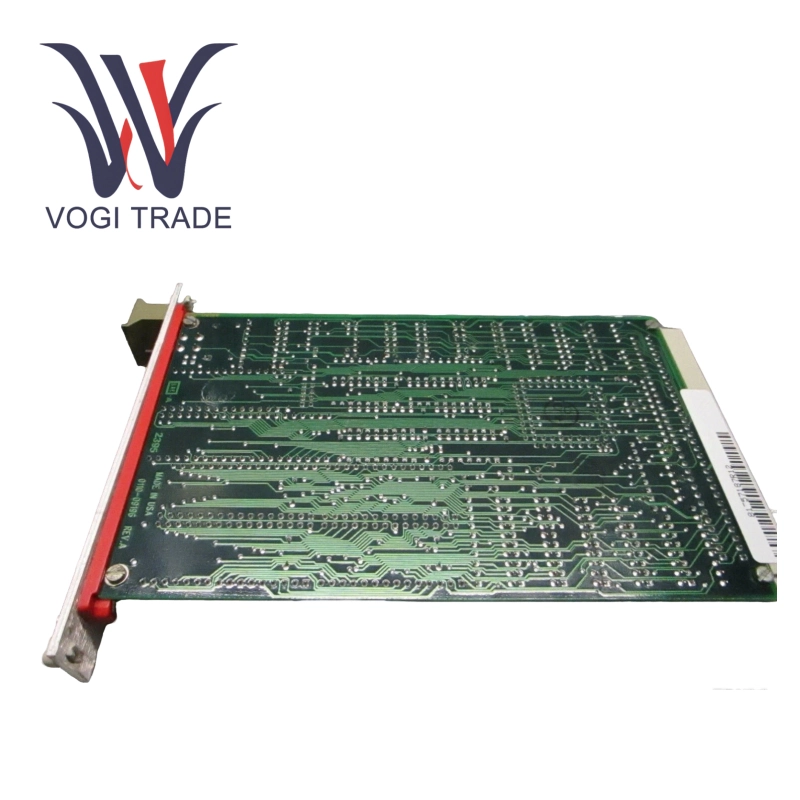

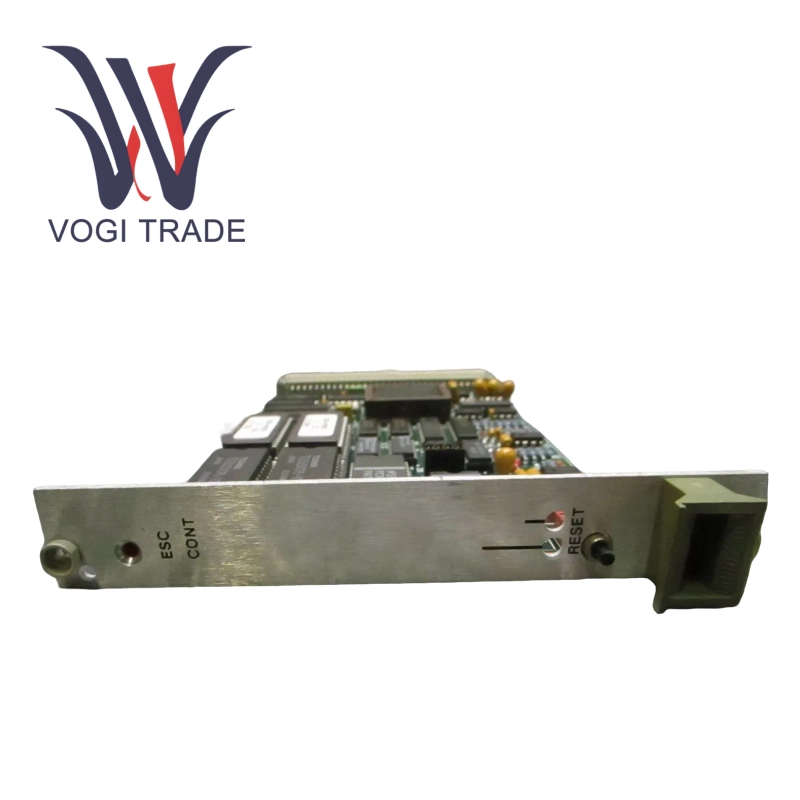

Brand: AMAT Description: E Chuck Controller Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty:3 Payment Term: T/T Shipping Port: Shenzhen AMAT 0100-09196 is a E Chuck Controller that realizes high-precision signal acquisition and command transmission, and is used to coordinate real-time data interaction between devices to ensure stable execution.
|
Manufacture |
AMAT |
|
Model Number |
0100-09196 |
|
Country Of Origin |
USA |
|
HS CODE |
85389000 |
|
Dimension |
25*15*3cm |
|
Packing Dimension |
27*17*5cm |
|
Weight |
1kg |
Technical parameters
Bus standard: VME bus architecture, supports high-speed data synchronous transmission.
Interface type: Digital I/O port, compatible with TTL/CMOS level logic, supports multi-channel parallel signal processing.
Board specifications:
Standard VME format PCB board;
Onboard signal isolation circuit, anti-interference level ≥2.5kV;
Working voltage: +5V DC ±5%, peak power consumption ≤15W.
Environmental adaptability:
Working temperature: 0°C to 55°C;
Storage temperature: -40°C to 85°C;
Humidity tolerance: 5% to 95% (non-condensing).
Functional features
1. Real-time signal processing capability
AMAT 0100-09196 can achieve microsecond response delay through hardware-level signal sampling optimization, ensure the synchronization of sensor data and actuator instructions, and significantly improve the process control accuracy of semiconductor equipment
2. Industrial-grade anti-interference design
Using electromagnetic shielding and isolation technology, AMAT 0100-09196 can still operate stably in a high-voltage radio frequency (RF) environment to avoid equipment malfunction caused by signal crosstalk
3. Modular expansion support
The board has reserved expansion slots, which can be directly compatible with AMAT series control modules (such as 0100-70034 VGA interconnection board), supporting users to flexibly configure the number of I/O channels according to production line requirements
4. Multi-protocol communication integration
The embedded Modbus RTU/TCP protocol stack enables AMAT 0100-09196 to seamlessly access industrial networks such as PLC and SCADA, and realize cross-platform equipment collaboration and remote monitoring
Application scenarios
Semiconductor etching process: Synchronous control of chamber gas flow valve and RF power supply start and stop timing;
Vacuum coating equipment: Manage the position sensing of the substrate transmission robot and the status signal of the vacuum pump group;
Wafer inspection system: Collect optical sensor data and trigger the action of the sorting robot;
Chemical vapor deposition: Monitor the temperature gradient of the reaction chamber and adjust the heater power in real time
