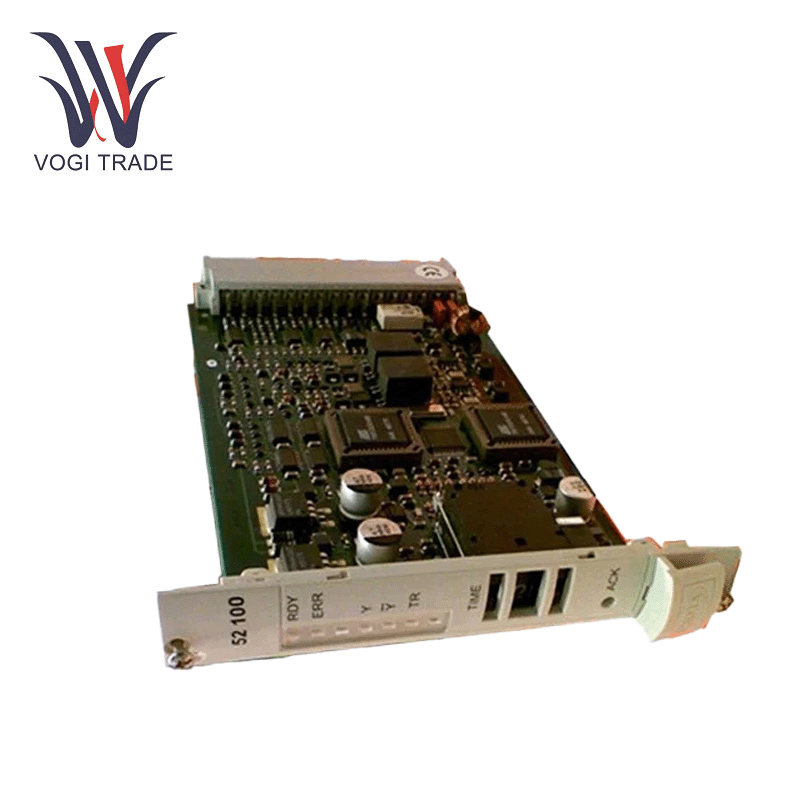

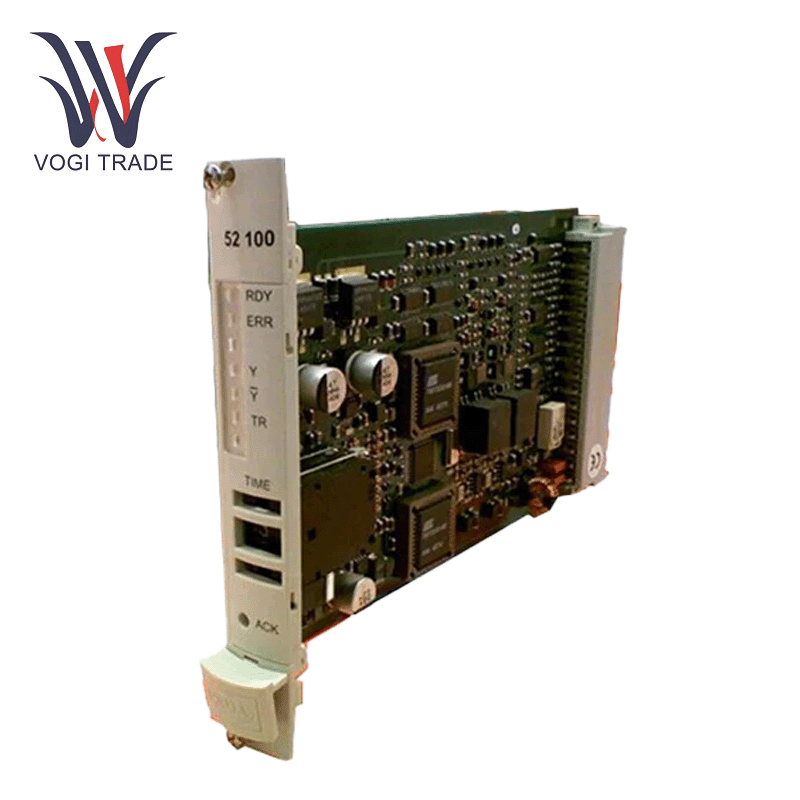

Brand: HIMA Description: Time Delay Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen The HIMA 52100 is a safety-certified controller for critical shutdown systems, offering SIL 3 compliance and fail-safe operation in hazardous industrial environments.
|
Manufacture |
HIMA |
|
Model Number |
52100 |
|
Country Of Origin |
Germany |
|
HS CODE |
8517795000 |
|
Dimension |
5.1*20.3*15.2cm |
|
Packing Dimension |
7*22*18cm |
|
Weight |
0.4kg |
Technical Parameters
Processor & Memory: Dual-core processor, 512 MB non-volatile memory for real-time and safety-critical processing.
I/O Configuration: 64 configurable safety I/O points with galvanic isolation for signal integrity.
Communication Protocol: Combines PROFIBUS DP and Ethernet/IP interfaces to achieve easy connection to systems.
Certification: TUV- certified to SIL 3 (IEC 61508/61511) and API 670 for oil/gas.
ENVIRONMENTAL RATINGS: Sealed for protection against humidity, dust, etc. Operates at -40°C to +70°C and 95% humidity (non-condensing) for extreme climate conditions.
Diagnostics: Solid-state, onboard LED status indicators and self-test diagnostics for quick identification of operational status.
Operating Environments
The HIMA 52100 is specifically designed to operate stably in even the harshest industrial environments.
Heavy Duty: The HIMA 52100 operates between -20°C and 60°C and is built to survive in places like oil refineries, chemical plants, and power stations. Its IP65 rated housing provides protection from dust and moisture making it suitable for dusty or humid environments.
Safety-Critical Systems: The HIMA 52100 is certified to IEC 61508 for SIL 3/4 and ideal for including in safety instrumented systems (SIS) that require very fine timing to avoid equipment damage or unsafe conditions.
Key Features
The HIMA 52100 is practically indestructable yet it is still loaded with advanced features.
High Accuracy Timing: adjustable time delays between 1/10 and 600 s, with precise timing of safety sequences and process controls.
Power Redundancy: It supports redundancy to ensure fail-over when the primary power source fails, so the switch can continue to operate while the main power source is replaced. Self-testing LEDs report status of each door at time of inspection to assist in maintenance and downtime prevention.
-Adjustable installation: Power supply 24 V DC ±20%, possibility of use in various automation environments and energy saving.
Compatible Equipment
The HIMA 52100 can be easily incorporated into the HIMA safety ecosystem:
Planar4 System: HIMA 52100 is designed to integrate with terminal boards such as TBAOH1C and controllers including Mark VIe UCSA ensuring effective signal transfer and adherence to industrial standards.
Network Compatibility: Ethernet / IP, Modbus TCP, Profibus DP compatible, can be connected with PLC, HMI, DCS, centralized control.
Application Scenarios
The HIMA 52100’s strengths are demanding applications:
Oil & Gas: Protects pipeline operations by delaying valve closures of emergency shutdowns, thereby preventing pressure surges and spills.
Electrical power Generation Power Generation: Manages the sequence of starting the turbine in steam or gas turbines to get fast transient response.& Smooth transition to and grid stability.
Chemical Processing -Controls reaction timing in reactors, monitoring and adjusting delicate temperature and pressure tolerances to avoid dangerous discrepancies.
