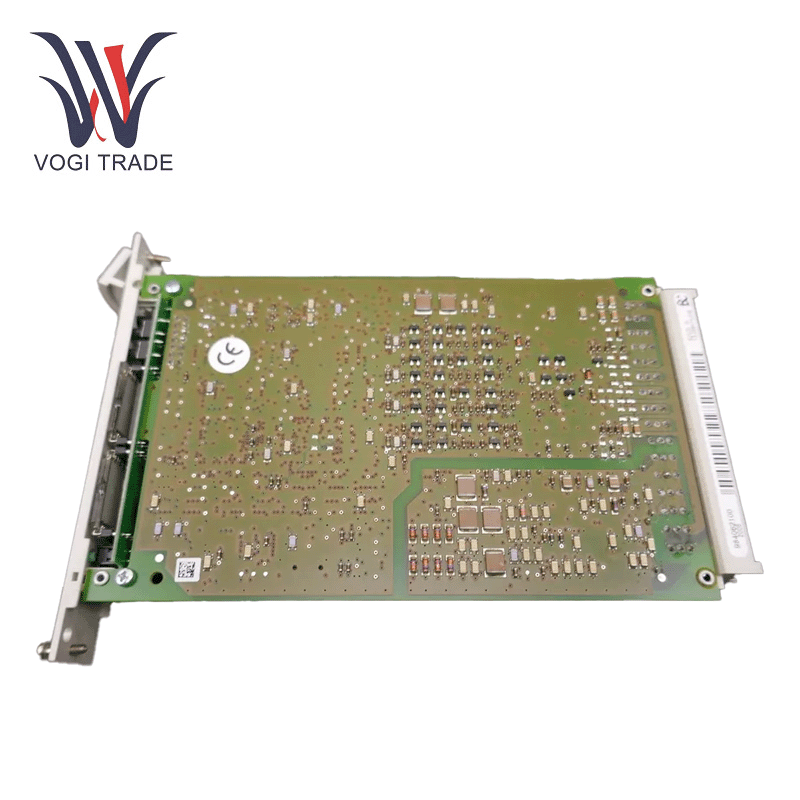

HIMA 62100

Technical Parameters

Input voltage: 0 to 5.5 V

Input current: 0 to 22 mA (250 W Shunt)

Measuring range : according to NE 43 (I > 3.6 mA, I < 21 mA)

Input resistance: ≥100 kW Basis error £ 0.25 % of upper value (+25 °C)

Operating error :≤0.4 % of upper value at -25 to +70 °C

Resolution: 12 Bit (upp. value incl. overflow)

Filter constant: 10 ms

Digital section

Switching time:  < 250 ms

Output:

Current limit:  0.11 A ± 10 %

Int. voltage drop :2.5 V at max. load

Min. load: 12 kW (no lamp load)

Max. Inductivity: 1 H

Safety time: 250 ms

Operating data: 24 V DC / 170 mA, plus load

Space requirement: 3 U high, 4 SU

Compatible Equipment

The HIMA 62100 is part of an ecosystem allowing for simple integration into the safety device from HIMA and third party automation platforms:

The Planar4 Platform: Compatible with terminal boards (e.g. TBAOH1C) and controllers (e.g. Mark VIe UCSA), to provide reliable signal transmission and adherence to industrial protocols.

Network Modules : PROFIBUS DP, Ethernet/IP and Modbus TCP enable connection for PLC, HMI & DCS.

Power Redundancy: Supports 24 V DC ±20% redundant power to ensure the flighty industrial grid.

Application Scenarios

High aloneThe HIMA 62100 protects high-risk industry operations:

Oil & Gas: Monitors pressure and flow in pipelines and shuts down the system in response to emergencies to avoid leaks or explosion.

Power Generation: Maintains turbine speed within safe limits during the starting/shut down processes to prevent mechanical stress on equipment.

Chemical industry Reactor temperature and pressure are monitored, and alarms sounded if deviations threaten to destabilize the process.

Key Features

The HIMA 62100 combines precision, redundancy, and adaptability for mission-critical operations:

Dual-Channel Monitoring: Simultaneously tracks two independent analog signals (0–20 mA or 0–5.5 V) with ±0.1% accuracy, enabling real-time detection of over/under-limit deviations.

Fail-Safe Redundancy: Built-in redundancy and self-diagnostic LEDs ensure uninterrupted operation, minimizing downtime in safety systems.

Configurable Thresholds: Adjustable upper and lower limits for each channel via SILworX software, allowing customization for diverse industrial requirements.

Rapid Response: Achieves a response time of <250 ms, critical for triggering emergency shutdowns or corrective actions in dynamic processes.
