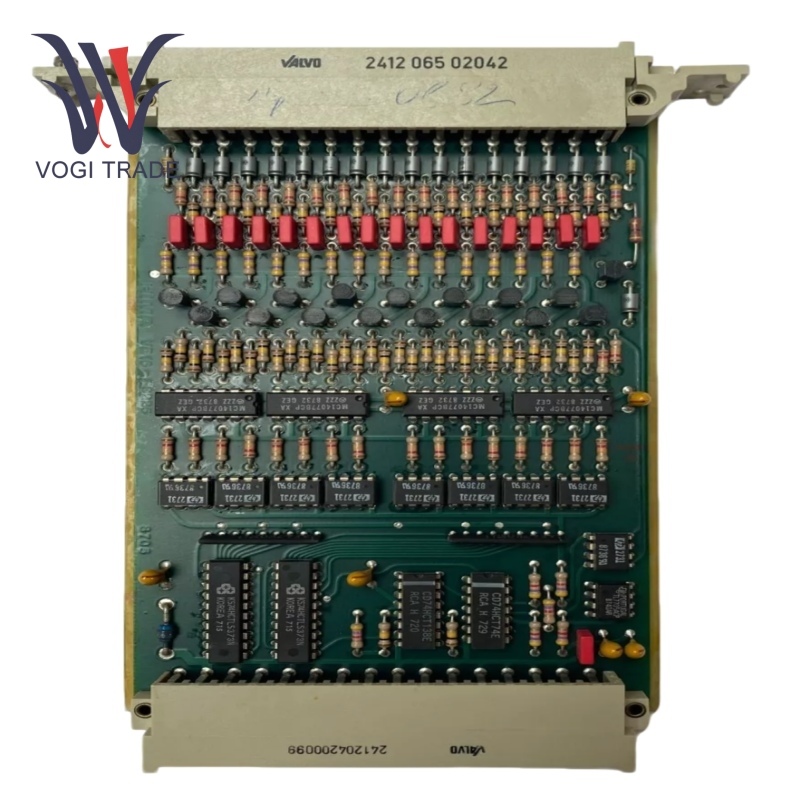

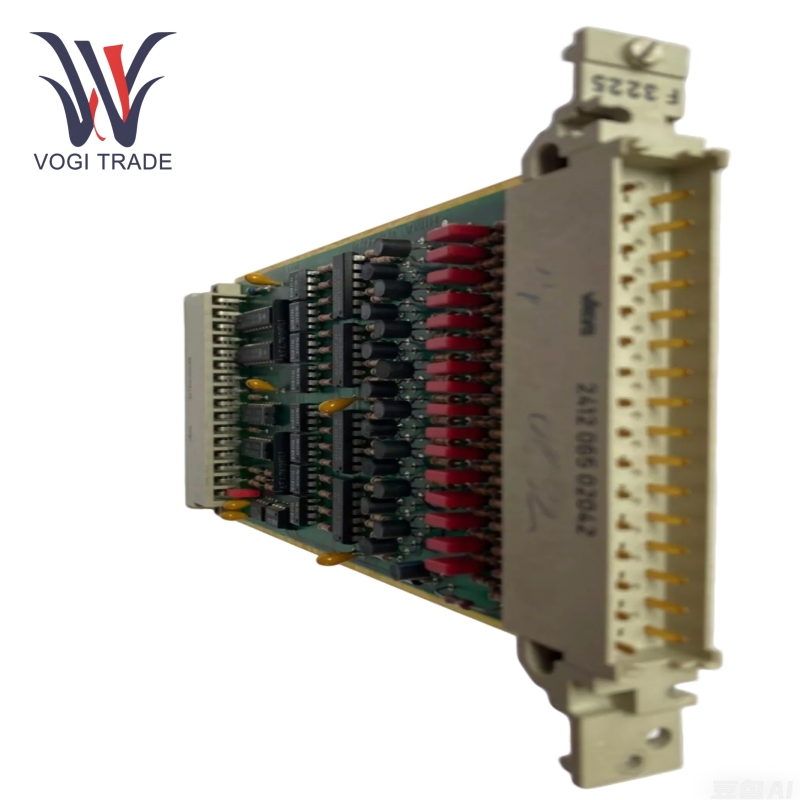

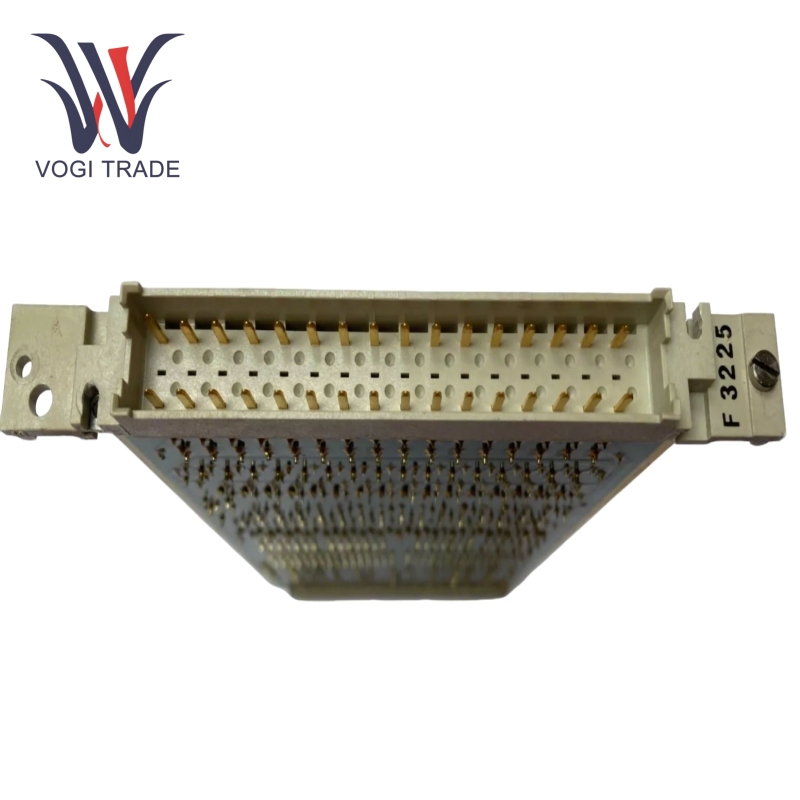

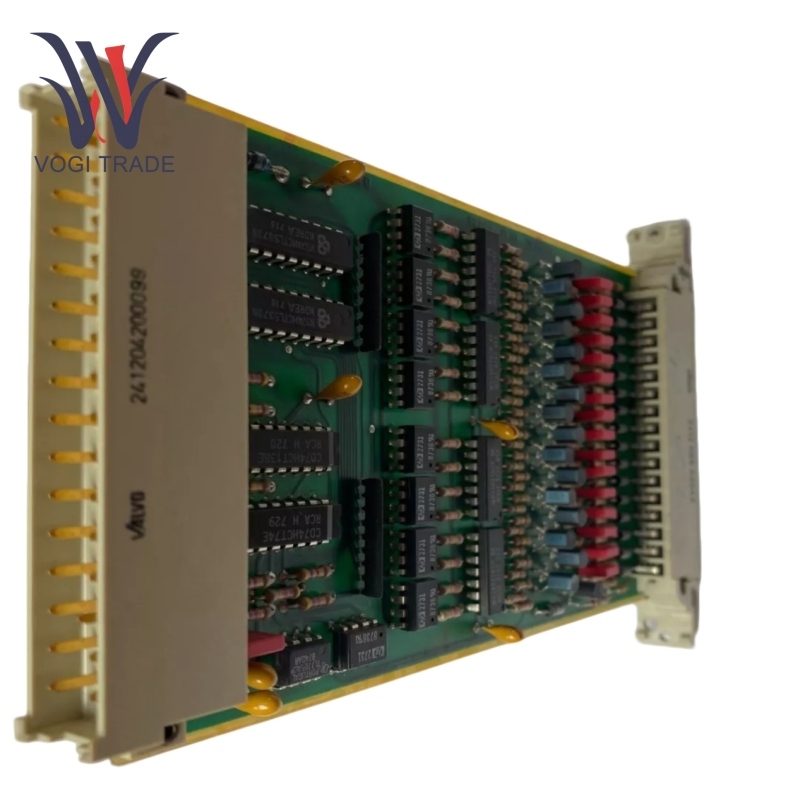

HIMA F3225

Usage Parameters

Input Type: Digital Input.

Voltage: Usually works at standard voltage. For example, some models of F3225 can work at 220V, which is suitable for common industrial power supply systems.

Signal Range: It is designed to process digital signals within a certain range, usually standard digital logic levels, such as 0V to 5V or 0V to 24V, depending on the given configuration and application requirements. Number of Input Channels: F3225 usually has a variety of input channels, ranging from a few to dozens. Therefore, it can connect multiple digital sensors or field devices at a time to obtain a large amount of data in a single module, thereby alleviating the complexity and space requirements of the rest of the system.

Response Time: Its response time is super fast, mostly in milliseconds. Therefore, it can keenly sense any changes in the input digital signal and transmit the same information to the controller in time, ensuring the real-time performance and reliability of the control system.

Product Function

Digital Signal Acquisition: The main function of HIMA F3225 is to accurately acquire digital input signals of different parameters through sensors, such as the on/off state of switches and the presence or absence of objects. It will pass real-time information about the health of the field facilities to the control system by accumulating these digital signals.

Signal conditioning and filtering: The module has signal conditioning and filtering functions to improve the quality of the input signals. As a result, possible electrical noise, interference and other unwanted signals will be easily processed, resulting in clean, smooth digital signals being transmitted to the controller. This is very important because it greatly improves the reliability and accuracy of the controller in making decisions based on the signals.

Data transmission: Once the digital signals are acquired and conditioned, the F3225 transmits the data to the HIMA safety controller or other connected control system through a reliable communication interface that supports standard communication protocols such as PROFIBUS and MODBUS, ensuring smooth integration with different types of control systems and enabling smooth data flow between various components in the industrial automation network.

Diagnostic and alarm functions: The module has inherent diagnostic capabilities and can actively monitor its own operating status and the integrity of the input signals, so if any abnormal conditions occur (such as signal loss, short circuit or module dysfunction), it will issue an alarm signal to notify the operator or control system. This can be said to be a special contribution of diagnostics, as it will help to quickly identify and easily solve potential problems in a timely manner, thereby reducing system downtime and improving the reliability and safety of the entire industrial process scenario.

Scope of application

Chemical industry: HIMA F3225 is widely used in the chemical industry to monitor various status indicators such as valves, pumps and some equipment. For example, it can detect the open and closed status of valves, whether the pump is operating normally, etc., and send this information to the control system to ensure the safe and stable operation of chemical production operations; it can be used to monitor the operation of safety interlock devices in chemical processes to prevent accidents caused by abnormal conditions.

Oil and gas industry: During the exploration, production and refining of oil and gas, the module monitors the status of equipment such as wellhead valves, pipeline pressure switches, and liquid level sensors. Through real-time acquisition and communication of digital signals, the control system can make timely and effective decisions, maintain the safe and efficient operation of oil and gas production facilities, and prevent major accidents such as leakage and explosion.

Power generation industry: The module can provide operating status information of circuit breakers, generator and transformer switches, and protection relays. This enables the control system to fully grasp the status of the equipment, improve the reliability and stability of the power generation process, and ensure the safety and stability of the power grid.

Pulp and paper industry: F3225 can be used to monitor motors, conveyor belts and various equipment in the pulp and papermaking process. It can also monitor pulp and water levels, material flow signals in the papermaking process to ensure the normal operation of the production process, thereby improving production efficiency and product quality.

Steel industry: In steel mills, it is used to monitor the status of equipment such as rolling mills, cranes, blast furnaces, etc., for example: By collecting digital signals related to equipment operation, the control system is supported to optimize the process flow, improve production efficiency, and ensure the safety of personnel and equipment.
